Air Curtains

What is an Air Curtain?

An air curtain, also known as an air door, is a machine that blows a controlled stream of air across an opening to the other side to create an air seal. This seal separates different environments while allowing a smooth, uninterrupted flow of traffic and unobstructed vision through the opening. Because they help to contain heated or conditioned air, they provide sizable energy savings and increased personal comfort when applied in industrial or commercial settings. They also help to stop the infiltration of pollutants and flying insects.

How Does an Air Curtain Work?

    1. Once it is powered on, air is brought into the unit through the intake
    2. The air then enters the fan housing and is accelerated by the fan.
    3. This fast-moving air goes into a plenum, which allows for an even distribution of air along the full length of the discharge nozzle.
    4. Airfoil-shaped vanes in the nozzle create a uniform air stream with minimal turbulence.
    5. The air discharged through the nozzle creates a jet stream to the floor. Approximately 80% of the air returns to the intake side of the air curtain, and 20% goes in the opposite direction.

Why Use an Air Curtain?

  • Energy savings through control of air transfer
  • Energy savings due to shorter run times of air handler or compressor
  • Safe environment support by increasing ventilation and de-stratifying the air
  • Maintain employee/customer comfort
  • Reduce flying insect infiltration
  • Unhindered traffic flow & unobstructed visibility across the threshold
  • Increase productivity due to stable temperatures
  • Maintain usable space around the door
  • Elimination of ice and fog in cold storage areas



What is an Air Curtain

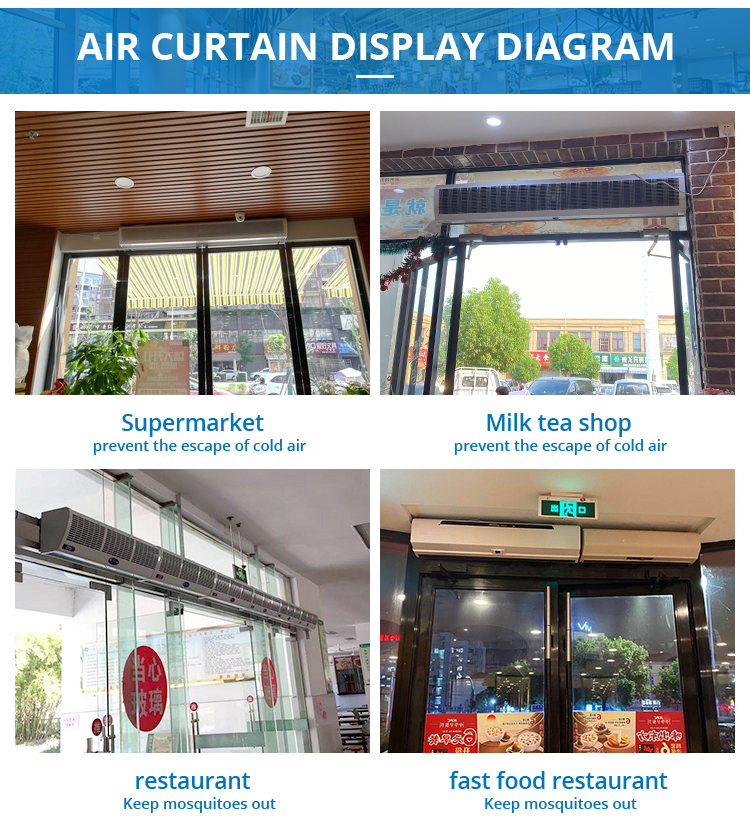

Where to Use an Air Curtain?

Follow the links below to find out more about the different locations within each building type that could benefit from an air curtain installation.

  • Schools
  • Cafeterias
  • Quick Serve Restaurants (QSR)
  • Restaurants
  • Grocery Stores
  • Airports
  • Hospitals
  • Indoor Grow Facilities and Processing Plants
  • Food Processing Facilities

Use an Air Curtain

Use an Air Curtain

How Does an Air Curtain Work?

  1. Once it is powered on, air is brought into the unit through the intake
  2. The air then enters the fan housing and is accelerated by the fan.
  3. This fast-moving air goes into a plenum, which allows for an even distribution of air along the full length of the discharge nozzle.
  4. Airfoil-shaped vanes in the nozzle create a uniform air stream with minimal turbulence.
  5. The air discharged through the nozzle creates a jet stream to the floor. Approximately 80% of the air returns to the intake side of the air curtain, and 20% goes in the opposite direction.


Why Use an Air Curtain?

  • Energy savings through control of air transfer
  • Energy savings due to shorter run times of air handler or compressor
  • Safe environment support by increasing ventilation and de-stratifying the air
  • Maintain employee/customer comfort
  • Reduce flying insect infiltration
  • Unhindered traffic flow & unobstructed visibility across the threshold
  • Increase productivity due to stable temperatures
  • Maintain usable space around the door
  • Elimination of ice and fog in cold storage areas



Q: What’s your product warranty?
A: 1-year warranty for machine.

Q: What’s your MOQ?
A: 50-200pcs/size for OEM, for our brand, any quantity is allowed.

Q: Do you provide OEM or ODM customized service?
A: Yes, we provide OEM and ODM serivce. We are sure to be your unique and reliable partner of ODM/OEM business.

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.

Q : Can I get a sample for quality check?
A : Yes, we offer sample.

Q: How does your factory do regarding quality control?
A: •Our inspectors will take quality control of each production process, including but not limited to visual, performance and sampling inspection. We also welcome SGS, Intertek, CCIC, TÜV come to our factory for inspection.
•Although we submit each order through a series of internal and external tests, we want you to have a part in the inspection process.
