120mm Cold Room Pu Sandwich Panel
CAS GYW cold room pu sandwich panel, 50mm, 75mm, 100mm, 120mm, 150mm,180mm and 200mm thickness, 0.3mm to 1mm color plate, 304 stainless steel. The flame retardant grade is B2. PU panel are injected with 100% polyurethane (CFC free) with an average foam-in-place density of 42-44kg/m³.With our cold room panels, you can efficiently insulate your cold room and freezer room.
CAS GYW cold room pu sandwich panel, 50mm, 75mm, 100mm, 120mm, 150mm,180mm and 200mm thickness, 0.3mm to 1mm color plate, 304 stainless steel. The flame retardant grade is B2. PU panel are injected with 100% polyurethane (CFC free) with an average foam-in-place density of 42-44kg/m³.With our cold room panels, you can efficiently insulate your cold room and freezer room.

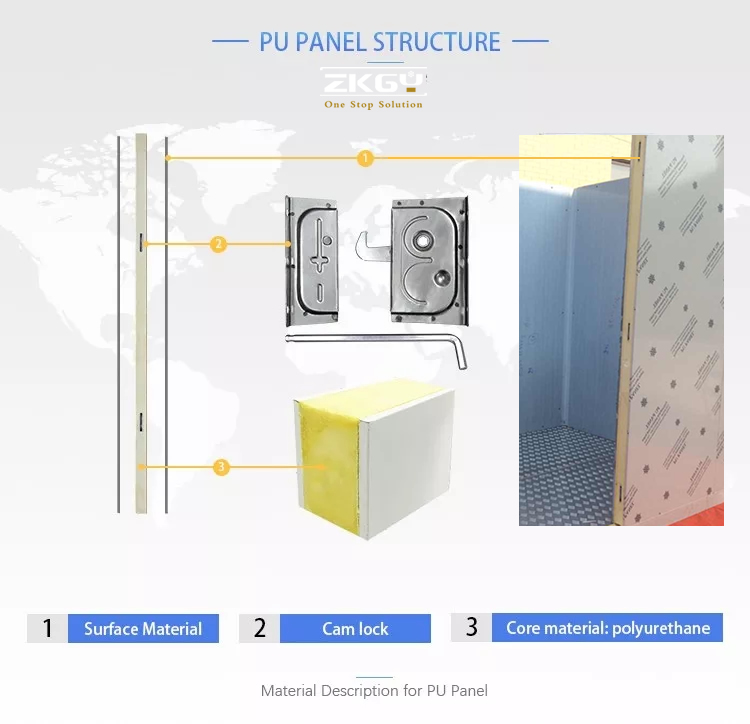

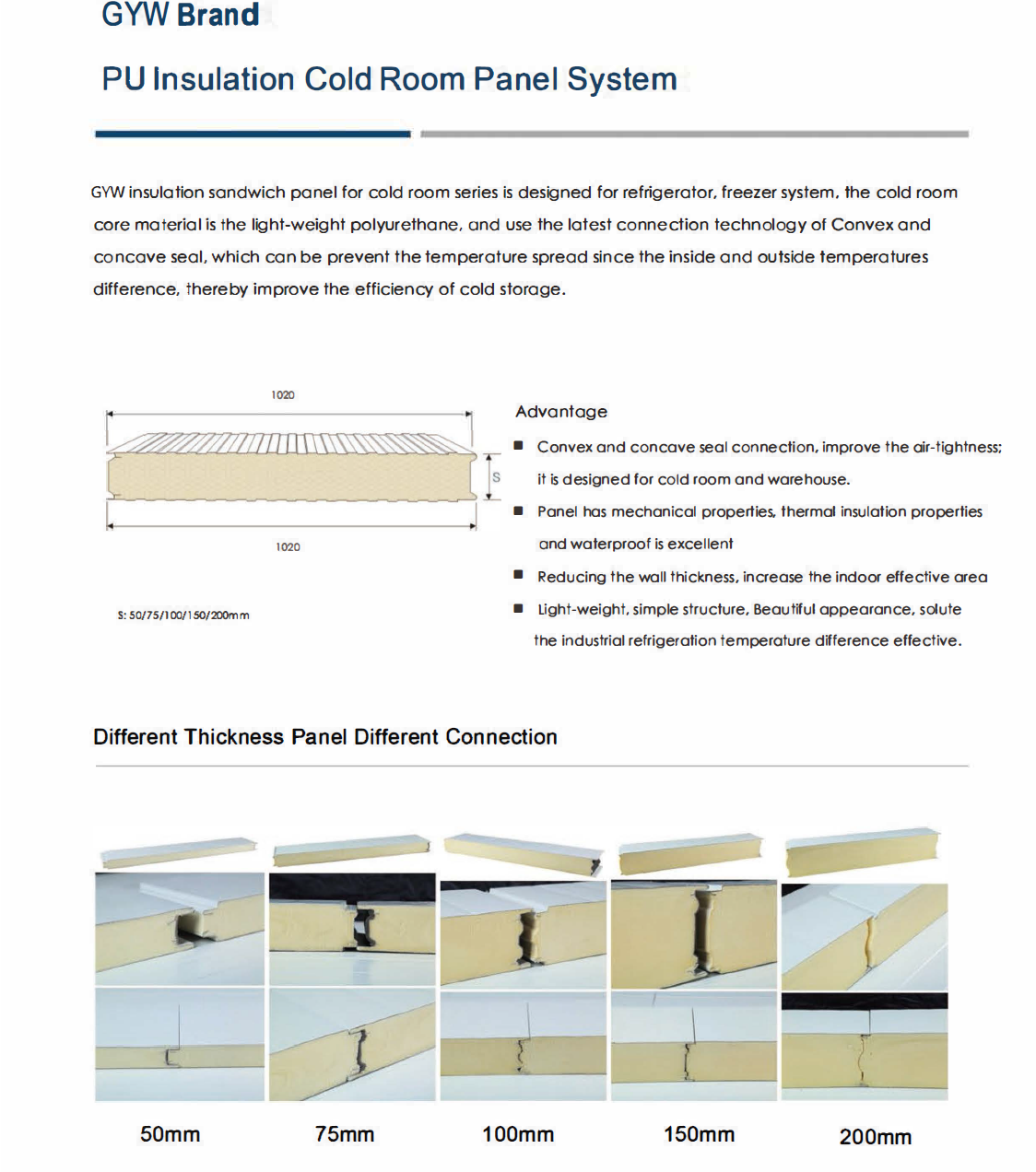

Pu sandwich panel structure
Step 2: Wall panel
Step 3: Ceiling panel
You can watch the following video about how to install cold room.
Different applicable temperature with different thickness of PU panel
Cold room (also called cool room, chiller room)
Cold room (also called cool room, chiller room) is a walk-in storage facility in controlled condition to keep a consistent temperature, it is widely used to preserve the quality of stored products like fruit, vegetables, beverages, flowers, beef and chicken meat, seafood, medicine, cheese, eggs and other fresh foods. The applications of cold rooms include foods and beverages packaging, short and long term products cold storage as well as blast freezing.
Freezer room (also called blast freezer, shock freezer)
Freezer room (also called blast freezer, shock freezer) is a kind of cold room with lower storage temperature from -40°C to -10°C, it is equipped with more thicker doors, PU panels and more powerful condensing units than cool room. Freezer room addresses cold storage concerns of storing material reliably at consistently low temperature and fast cooling speed, so it can keep such stored products like sea food, meat or ice scream in fresh quality.
