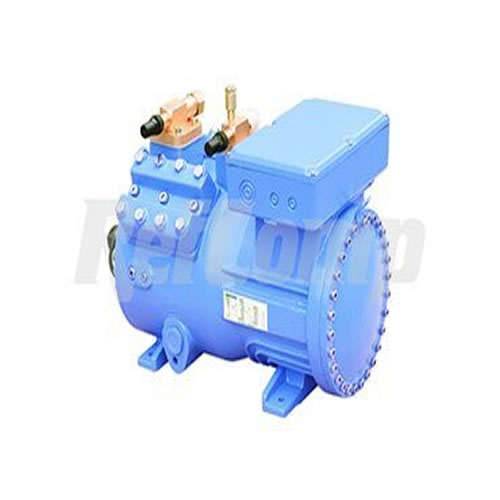

Refcomp SP Series Compressor

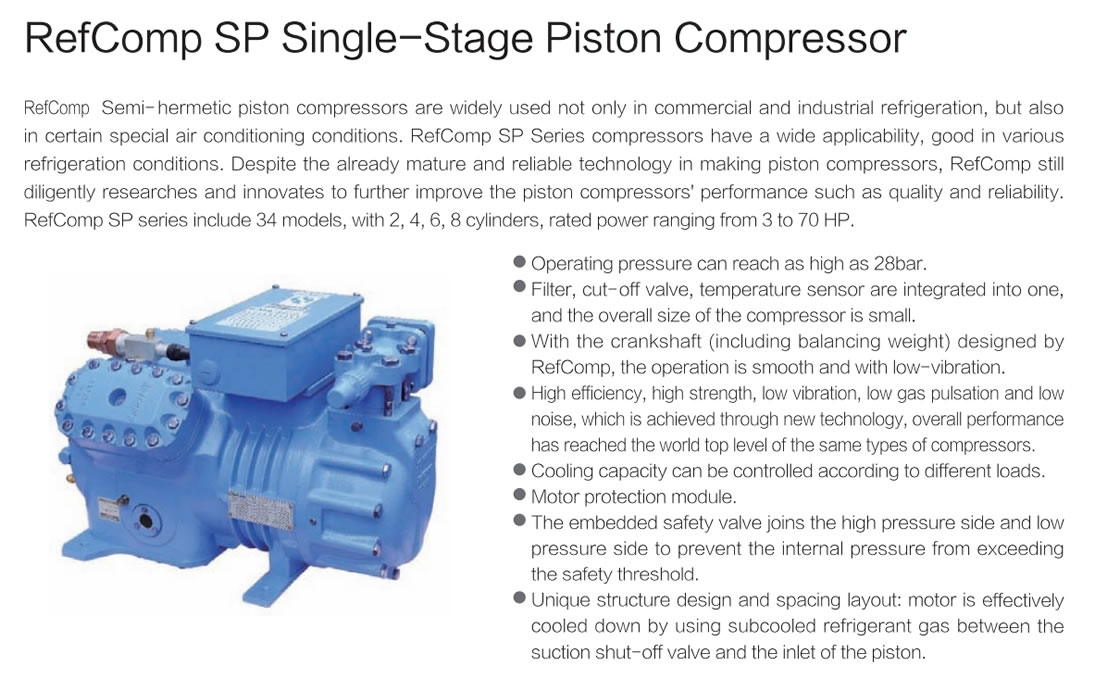

Operating pressure can reach as high as 28bar.Filter, cut-off valve, temperature sensor are integrated into one,and the overall size of the compressor is small.With the crankshaft (including balancing weight) designed byRefComp, the operation is smooth and with low-vibration.High efficiency, high strength, low vibration, low gas pulsation and lownoise, which is achieved through new technology, overall performancehas reached the world top level of the same types of compressors.Cooling capacity can be controlled according to different loads.Motor protection module.

The embedded safety valve joins the high pressure side and lowpressure side to prevent the internal pressure from exceedingthe safety threshold.

Unigue structure design and spacing layout: motor is effectivelycooled down by using subcooled refrigerant gas between thesuction shut-off valve and the inlet of the piston.

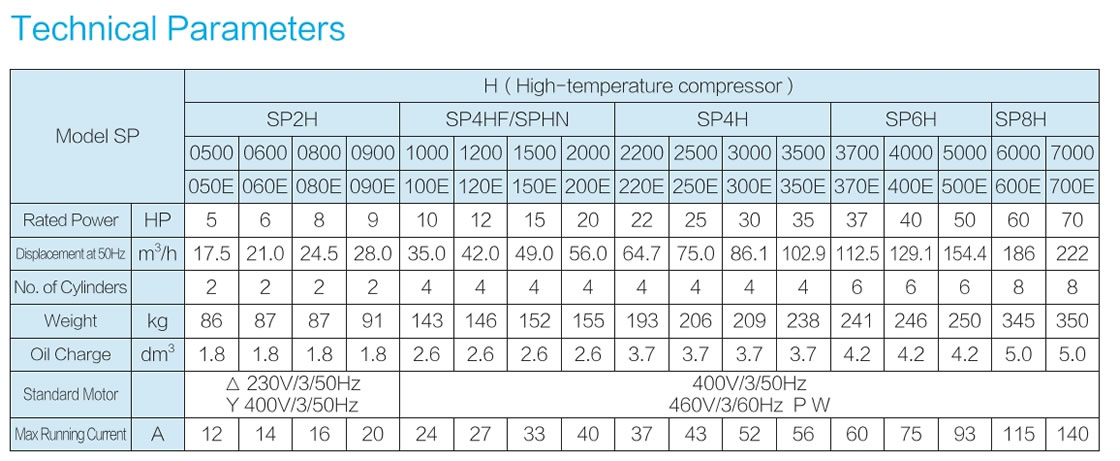

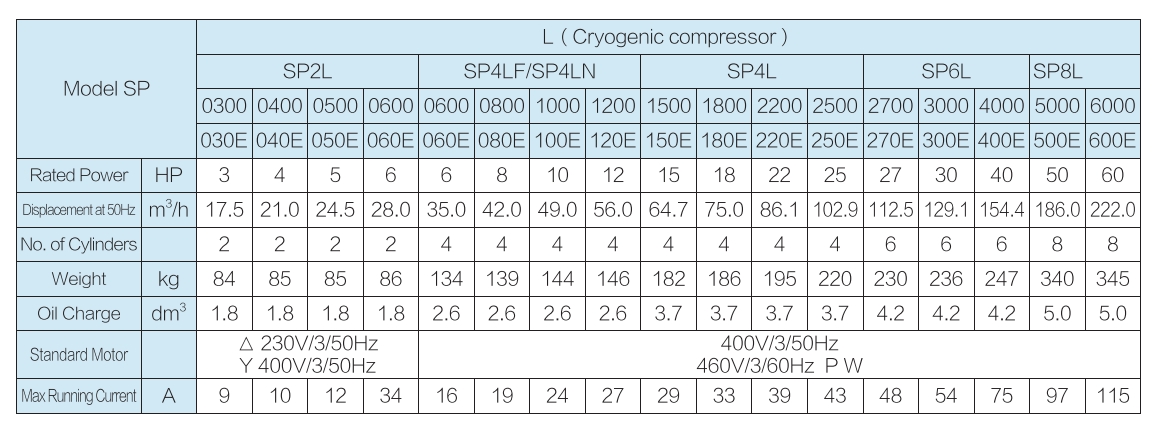

Compressor operating pressure is very important for overall performance, and Refcomp SP Piston Compressor can reach as high as 28bar. This is one of the most high-quality and reliable Series Casgyw supplies, which includes 34 models with 2, 4, 6, and 8 cylinders. You can enjoy low vibration and low gas pulsation, and the power range is 3 to 70 Hp. Contact us now.
