Solenoid Valve DGSV for cold room
$258.00 – $1,350.00
1、Technical Parameter
◆ Nominal Diameter: DN40-DN125
◆Nominal Pressure: 2.8MPa
◆ Applicable Medium: R12,R22,R502,R134a,R404a,R507,R717 and other refrigerants.
◆Applicable Temperature: -50 ℃ ～ + 120 ℃
◆ Connection Method: flanges at both ends.
2、Instruction
DGSV Solenoid Valve is mainly used in the suction line, liquid line and hot gas defrosting line,it will open when power is on, and close when power is off.
Description
1、Technical Parameter
◆ DN40-DN125
Nominal Diameter: DN40-DN125
◆ 2.8MPa
Nominal Pressure: 2.8MPa
◆ R12,R22,R502,R134a,R404a,R507,R717.
Applicable Medium: R12,R22,R502,R134a,R404a,R507,R717 and other refrigerants.
◆ -50℃～+120℃
Applicable Temperature: -50 ℃ ～ + 120 ℃
◆ Connection Method: flanges at both ends.
2、Instruction
DGSV。
DGSV Solenoid Valve is mainly used in the suction line, liquid line and hot gas defrosting line,it will open when power is on, and close when power is off.
3、Order Goods
◆Please tell us the model you want when ordering.
◆ E.g.:DGSV50 It is means DN50 Solenoid Valve

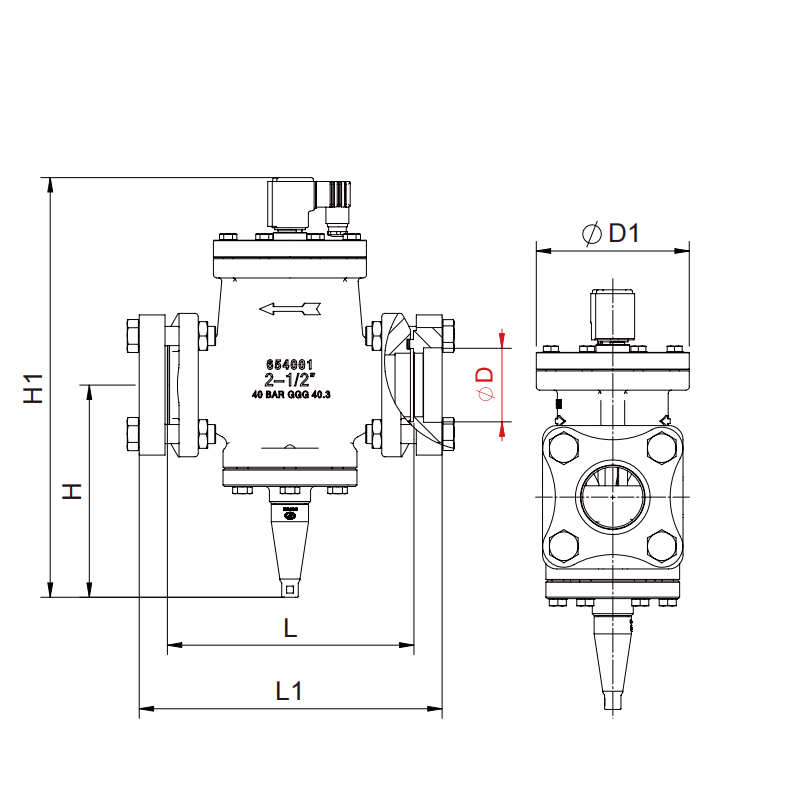

| Solenoid Valve | |||||||
|
Model |
Nomial Diameer（DN） |
Size |
|||||
| φD | φD1 | L | L1 | H | H1 | ||
|
DGSV |
40 | 47 | 144 | 248.5 | 300.5 | 222 | 365 |
| 50 | 59 | 144 | 248.5 | 300.5 | 222 | 365 | |
| 65 | 78 | 160 | 252 | 331 | 222 | 442 | |
| 80 | 91 | 176 | 311 | 389 | 273 | 492 | |
| 100 | 110 | 222 | 359 | 450 | 292 | 537 | |
| 125 | 135 | 257 | 393.6 | 475.6 | 410 |
615 |
|
