XPS Board Production Line

The 3D wire mesh panel machine is the main machine of the 3D panel production line, which adopts PLC control system, air cylinder or step motor as drive. It can insert, cut, and control the position of wire mesh and EPS board automatically to complete the production of the 3D panel. 3D wire mesh welding line for the production of reinforcement 3D mesh panels.
This production line is with high automatic manufacturing level, productive efficiency, low lack welding rate, strong welding pressure and strength. The finished products(3D panels) are in excellent quality and low cost.

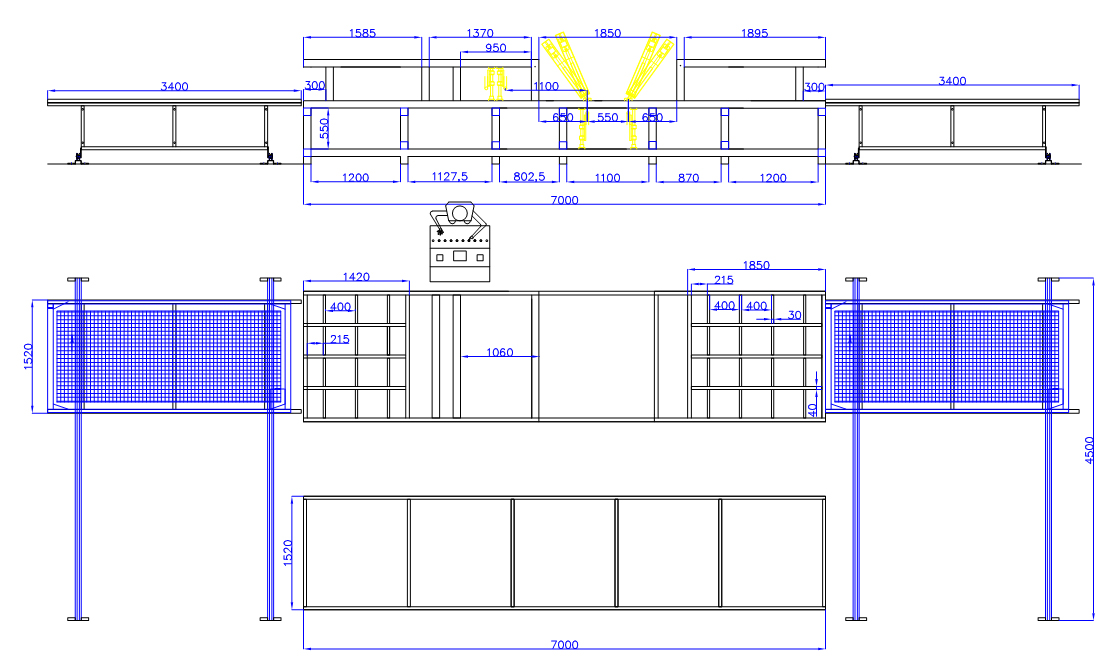

Layout of 3D Panel Production Line:


Description:
The 3D wire mesh panel machine is the main machine of the 3D panel production line, which adopts PLC control system, air cylinder or step motor as drive. It can insert, cut, and control the position of wire mesh and EPS board automatically to complete the production of the 3D panel. 3D wire mesh welding line for the production of reinforcement 3D mesh panels.
This production line is with high automatic manufacturing level, productive efficiency, low lack welding rate, strong welding pressure and strength. The finished products(3D panels) are in excellent quality and low cost.
Specification:
Input power supply: AC380V, 50HZ, 75KVA
Air source equipment: 3m3/min, 0.6Mpa
(1) Standard size:
Wire mesh structure: 50*52mm
Inserting wire diameter: 1.8-2.8mm
Thickness of EPS core: 50-100mm
Structure of inserting wire: single, double wire meshes; sparse, dense inserting
Length: 3000mm
Width: 1220mm
(2) Non-standard size:
Wire mesh structure: 30*30mm, 50*50mm or as requirement;
Inserting wire diameter: 3.0-3.5mm;
Thickness of EPS core: 100-150mm or as requirement;
Max length: 6000mm
Productivity: 3D type(mesh hole 50*50mm)
Dense inserting: 400m2/8 hours
Sparse inserting: 600m2/8 hours
Wire material: galvanized or cold drawing low carbon wire
Material of EPS core: fire resistance type
Max welding rate: 3%
Strength of welding: welding joints(2.5mm wire mesh), min strength: 450N
Machine length: 13500mm
Machine width: 1800mm
Machine height: 1700mm
Machine weight: 4000kgsTypical 3D panels:
