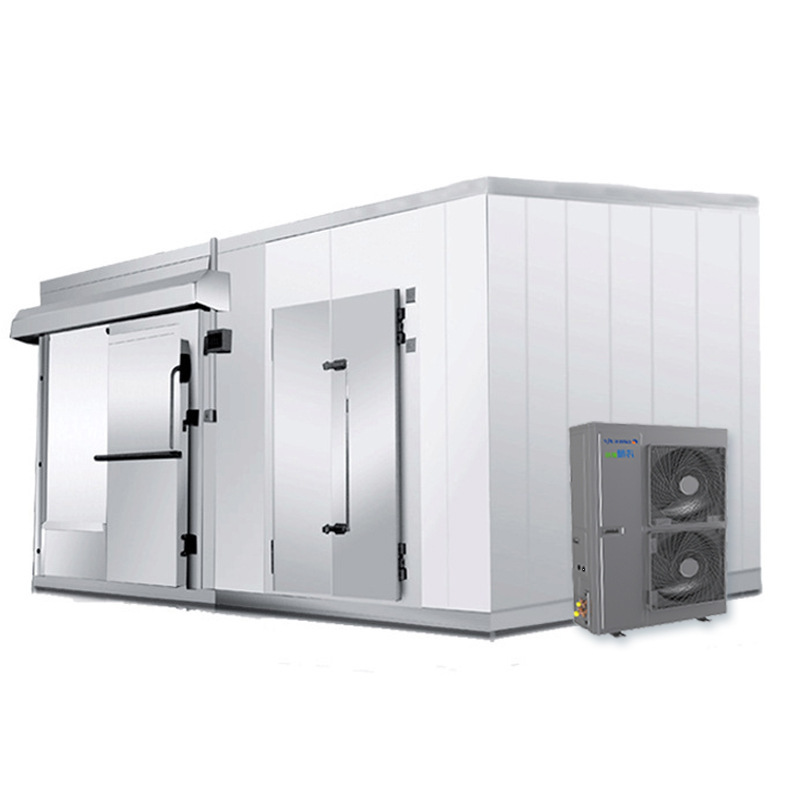

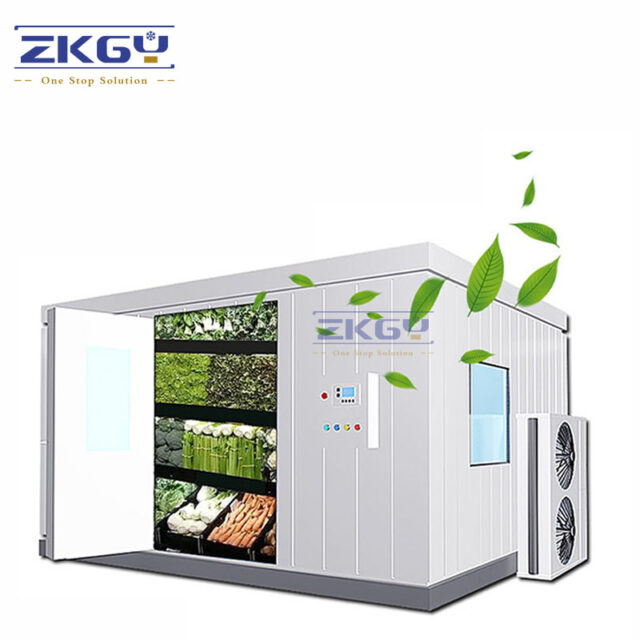

65CBM small cold room for fruit and vegetable
CASGYW cold rooms are available in a vast range of different sizes and different temperature. The range consists of chillers(-5/5ºC), freezers rooms (-18/-20ºC) and quick freezers(-25/-35ºC). Cold rooms are widely used in food industry(fruit, vegetable, seafood, fish, meat), medical industry, and other related industry.
CASGYW cold rooms are available in a vast range of different sizes and different temperature. The range consists of chillers(-5/5ºC), freezers rooms (-18/-20ºC) and quick freezers(-25/-35ºC). Cold rooms are widely used in food industry(fruit, vegetable, seafood, fish, meat), medical industry, and other related industry.
65CBM small cold room for fruit and vegetable

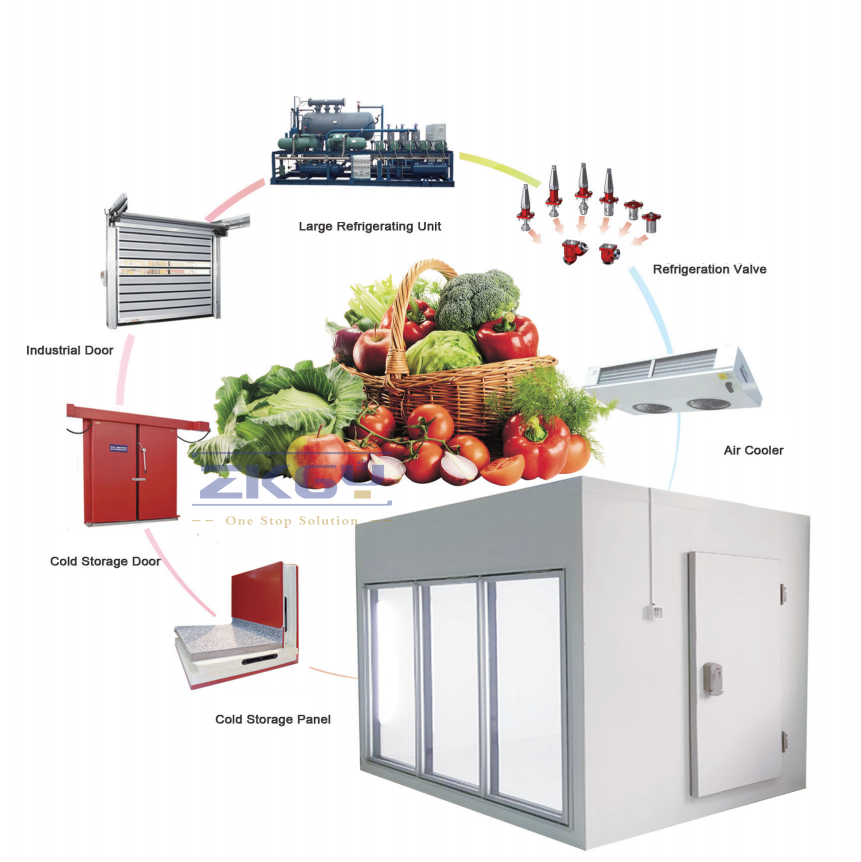

Cold room structure
Cold room structure

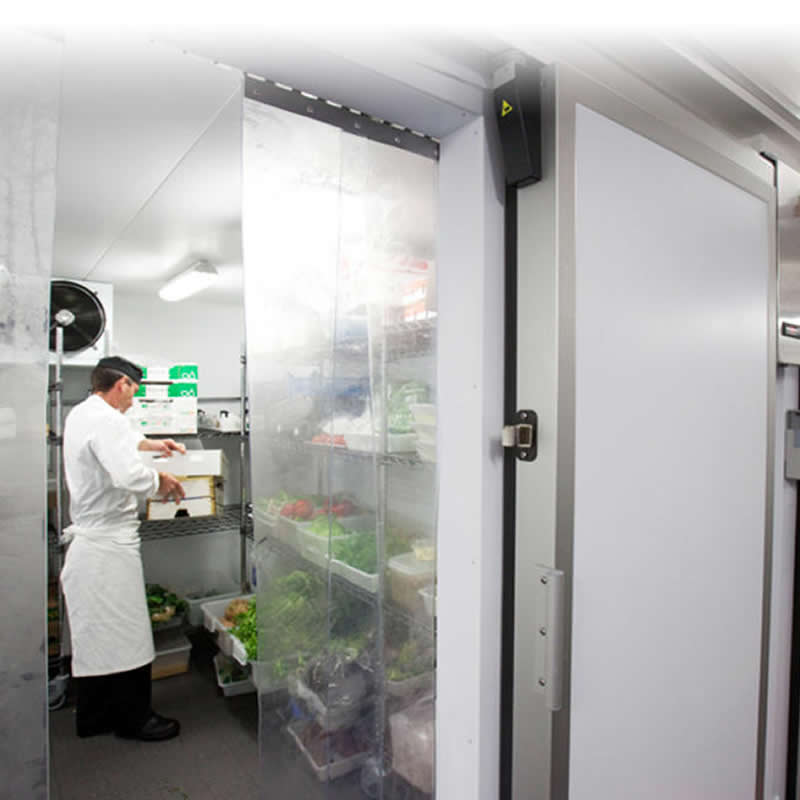

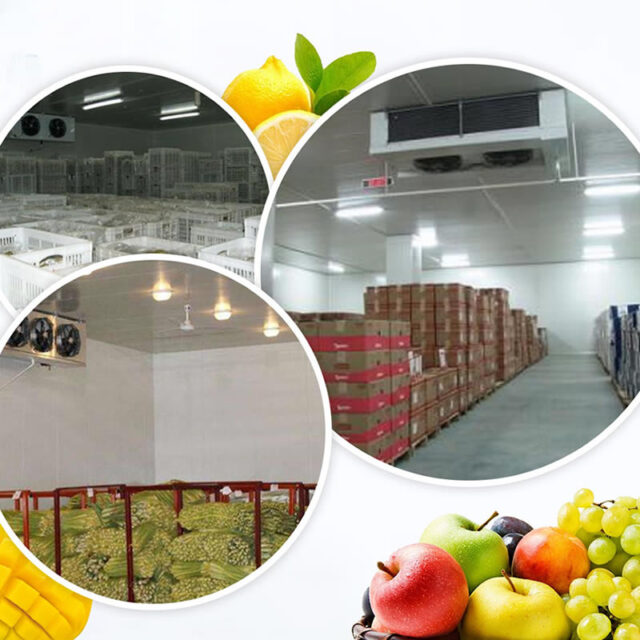

Cold room applications

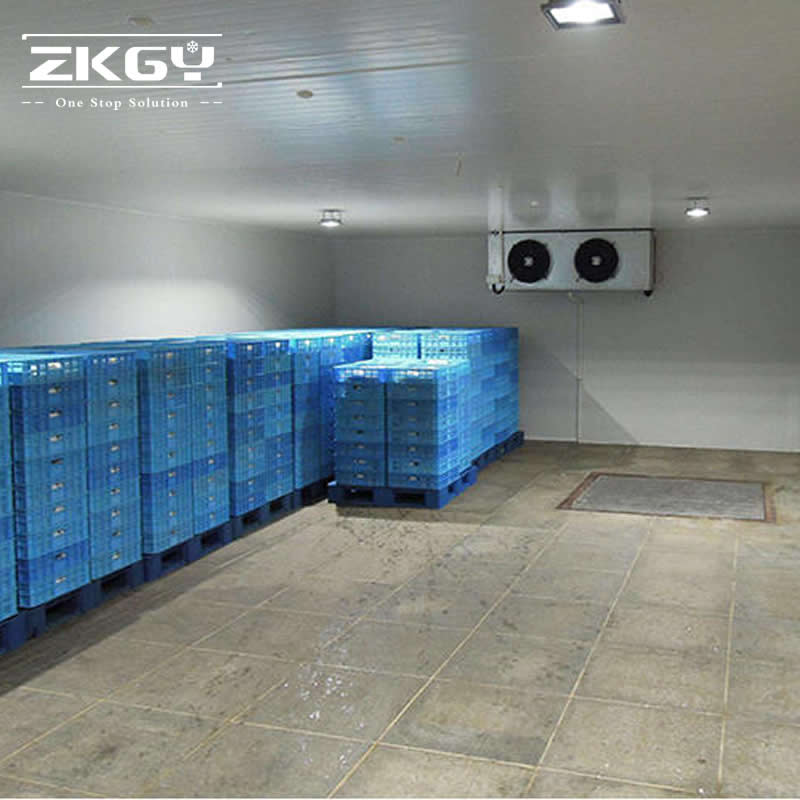

In food industry, cold room is usually used in food process factory, slaughterhouse, fruit and vegetable
warehouse,supermarket,hotel, restaurant, etc.
In medical industry, cold room is usually used in hospital, pharmaceutical factory, blood center, gene center, etc.
Other related industries, such as chemical factory, laboratory, logistics center, they also need cold room.
Cold room applications
In cold room projects, the following factors should be fully considered:
It will affect the temperature of cold room needed to be, and the choice of thickness of pu panel and material covered on panel.
2.What is the size of the cold room?
It will affect the choice of condensing unit and air cooler, basing on the cold room temperature.
3.Which country will the cold room be located in? How about the climate?
It will affect the choice of voltage and condenser, if the temperature is high all the year, we need to choose condenser with bigger evaporation area.
|
Application for example
|
Room Temperature
|
||
|
Fruit & Vegetable
|
-5 to 10 ℃
|
||
|
Chemical factory,medicine
|
0 to 5 ℃
|
||
|
Ice cream, ice storage room
|
-10 to -5 ℃
|
||
|
Frozen meat storage
|
-25 to -18 ℃
|
||
|
Fresh meat storage
|
-40 to -30 ℃
|
Solution and catalog, pls clich here!
|
Parameter
|
|||
|
Brand
|
ZKGY or OEM / ODM
|
||
|
Size
|
Customized
|
||
|
Temperature
|
-50°C to 50 °C
|
||
|
Voltage
|
380V, 220V or Customized
|
||
|
Main parts |
Polyurethane(PU) sandwich panel
|
||
|
Cold room door
|
|||
|
Condensing unit——German Bitzer, American Emerson, GREE, etc.
|
|||
|
Air cooler——GREE,GYW, Gaoxiang, Jinhao, etc.
|
|||
|
Fittings
|
Valves, copper pipe, thermal insulation pipe, wire, PVC pipe for wire, PVC door curtain for sliding door, LED light,
switch,electrode, insulating tape, belting, etc. |
||
|
Certification
|
ISO9001:2015, BV, SGS, TÜV
|
||

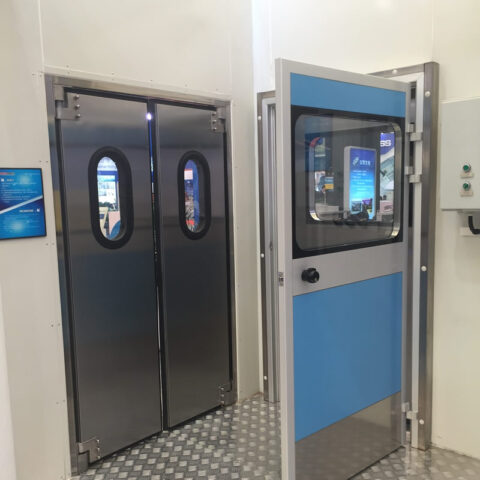

Cold Room Swing Door
Cold Room Swing Door is the legend door for isolating certain space between two different temperatures when environmental control is required. The cold room swing door is often used in the pre cooling room which can open and close with its connecting hinges which can return the primary place and stop on the center position of the door frame. The sealing strips around the door can combine with door frame tightly when the door closed.
COLD ROOM PU PANEL is also called PU sandwich panel
High quality color Steel fast fit PIR Sandwich Panel for Meat/ Vegetables/ Fruit. PU panel is also called PU sandwich panel, PUR Panel or PUF Panel in which polyurethane foam is been sandwiched between the two outer covers. The CFC-free insulated PU panel is commonly used as the cold storage panels due to its advantageous mechanical, chemical, biological and moisture properties, it is excellent to prevent thermal conductivity, restrain growth of fungi, keep out moisture ingress. We are engaged in manufacturing reliable PU sandwich panels in variegated specifications.

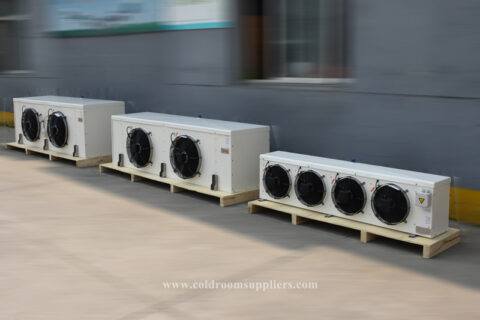

Unit Cooler (also called air cooled evaporator)
Our unit coolers are constructed of a heavy-gauge, smooth finished aluminum cabinet or galvanized steel with a copper coils, aluminum plate fin foils and permanently lubricated ball bearing fan motors with inherent thermal protection. These draw-through units are designed for ceiling mounting in cold room and are available in air defrosting, electric defrosting and hot gas defrosting configuration
