Stop Valve Angle Type-Applicable medium: CO2,R12, R22, R502, R134a, R404A

It is mainly used to cut off or connect the pipeline, so that the system can operate normally. Therefore, it must be kept fully open or fully closed during use, and it is not allowed to be half open. Products are mainly divided into straight through stop valve and angle stop valve.Applicable medium: CO2,R12, R22, R502, R134a, R404A, r507, R717, etc

SKU: Stop Valve Angle Type Category:
General Details

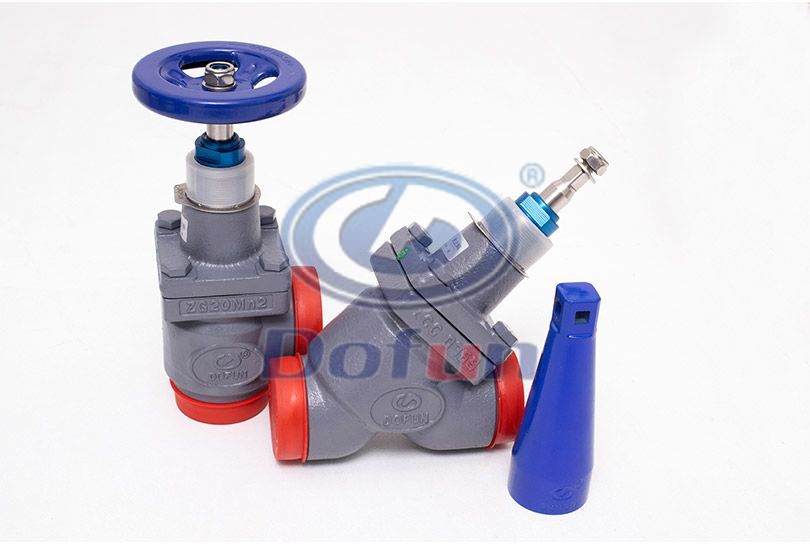

Stop Valve Angle Type

It is mainly used to cut off or connect the pipeline, so that the system can operate normally. Therefore, it must be kept fully open or fully closed during use, and it is not allowed to be half open. Products are mainly divided into straight through stop valve and angle stop valve.Applicable medium: CO2,R12, R22, R502, R134a, R404A, r507, R717, etc

Stop Valve Angle Type

Stop Valve PS60 Series:

Technical Parameter

Nominal Diameter: DN15-DN300

Nominal Pressure: 4.0 MPa

Applicable Medium: R12, R22, R502, R134a, R404a, R507, R717 and other refrigerants.

Applicable Temperature: -50 ℃ ~ + 150 ℃

Structure Form: Angle Type Structure code is A ,Straight Type Structure code is B

Angel Type Stop Valve
Type Nominal Diameter ((DN) Size(mm)
ΦD-GB ΦD-DIN ΦD1 L H H1 H2
SVD-A 15 22 21.3 15 45 203 189 230
20 27 27 20 45 203 189 230
25 32 33.7 25 45 203 189 230
32 38 42.4 32 56 265 247 309
40 45 48.3 38 56 265 247 309
50 57 60.3 49 60 257 237 292
65 76 76 62 90 287 263 324
80 89 89 76 106 328 300 378
100 108 114 96 121 368 331 414
125 133 139.7 120 133 502 442 554
150 159 168 150 146 546 467 591
200 219 219 200 184 635 537 757
250 273 273 250 210 690 603 757
300 325 324 300 240 810 680 865

Stop Valve PS63 Series:

Technical Parameter

Nominal Diameter: DN15-DN300

Nominal Pressure: 6.3MPa

Applicable Medium: CO2,R12, R22, R502, R134a, R404a, R507, R717 and other refrigerants.

Applicable Temperature: -50 ℃ ~ + 150 ℃

Structure Form: Angle Type Structure code is A ,Straight Type Structure code is B

Angel Type PN63 Stop Valve
Type Nominal Diameter(DN) Size(mm)
ΦD-GB ΦD-DIN ΦD1 L H H1 H2
SVD-HA 15 22 21.3 15 45 203 189 230
20 27 27 20 45 203 189 230
25 32 33.7 25 45 203 189 230
32 38 42.4 32 56 265 247 309
40 45 48.3 38 56 265 247 309
50 57 60.3 49 60 257 237 292
65 76 76 62 90 287 263 324
80 89 89 76 106 328 300 378
100 108 114 96 121 368 331 414
125 133 139.7 120 133 502 442 554
150 159 168 150 146 546 467 591
