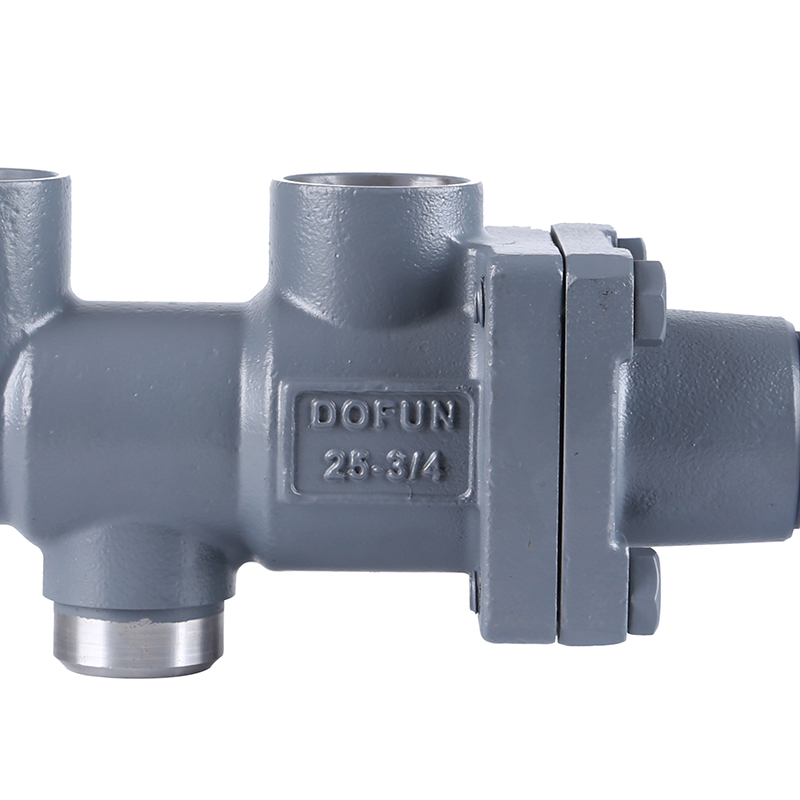

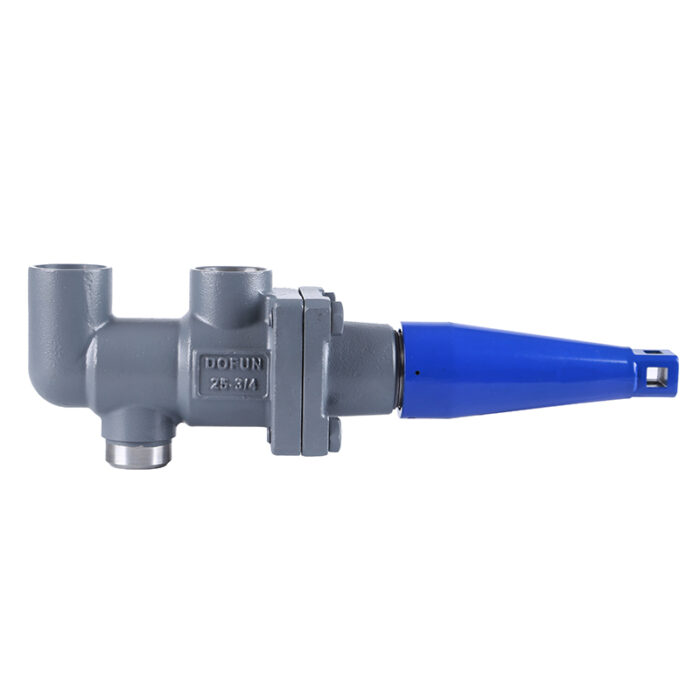

Double stop valve DSV1

$188.00

The price is EXW price and does not include shipping costs.

Technical Parameter

◆ Nominal Inlet Diameter: DSV1   DN25   DSV2   DN20、DN25、DN32

◆ Thread Of Outlet: DSV1  NPT 3/4  DSV2  NPT 3/4 NPT 1 1/4

◆ Nominal Pressure: 4.0MPa

◆Applicable Medium:R12,R22,R502,R134a,R404a,R507,R717,CO2 and other refrigerants.

◆ Applicable Temperature: -50 ℃ ~ + 150 ℃

 Instruction

DSV The Double Stop Valve is mainly used to connect two safety valves,

and the rotating stem can be switched between the two safety valves,

which is convenient for maintenance.

Order Goods

◆ Please tell us the model,nominal import diameter, outlet thread size

when ordering.

◆E.g.: DSV2-25-3/4 It is means DSV2 Double Stop Valve with inlet nominal

diameter DN25,outlet thread is NPT3/4 thread .

SKU: Double stop valve DSV1 Category: Tag:
Description

Description

Technical Parameter

◆ Nominal Inlet Diameter: DSV1   DN25   DSV2   DN20、DN25、DN32

◆ Thread Of Outlet: DSV1  NPT 3/4  DSV2  NPT 3/4 NPT 1 1/4

◆ Nominal Pressure: 4.0MPa

◆Applicable Medium:R12,R22,R502,R134a,R404a,R507,R717,CO2 and other refrigerants.

◆ Applicable Temperature: -50 ℃ ~ + 150 ℃

 Instruction

DSV The Double Stop Valve is mainly used to connect two safety valves,

and the rotating stem can be switched between the two safety valves,

which is convenient for maintenance.

Order Goods

◆ Please tell us the model,nominal import diameter, outlet thread size

when ordering.

◆E.g.: DSV2-25-3/4 It is means DSV2 Double Stop Valve with inlet nominal

diameter DN25,outlet thread is NPT3/4 thread .

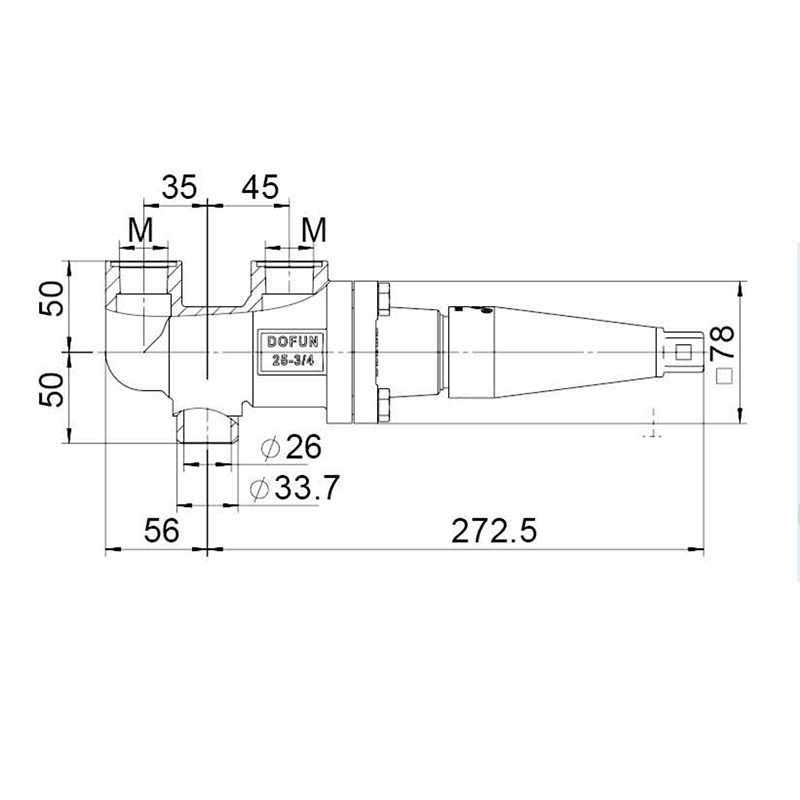

Double stop valve DSV
Model Thread size(M) ΦD
DSV1-25 NPT3/4
DSV2-20 NPT3/4 26.9
DSV2-25 NPT3/4 33.7
DSV2-32 NPT3/4 42.4
DSV2-25 NPT 1 1/4 33.7
DSV2-32 NPT 1 1/4 42.4
