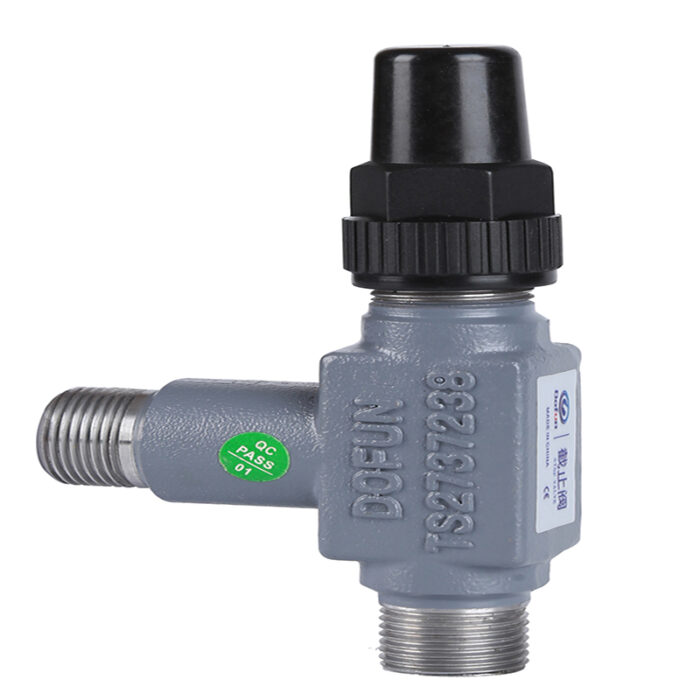

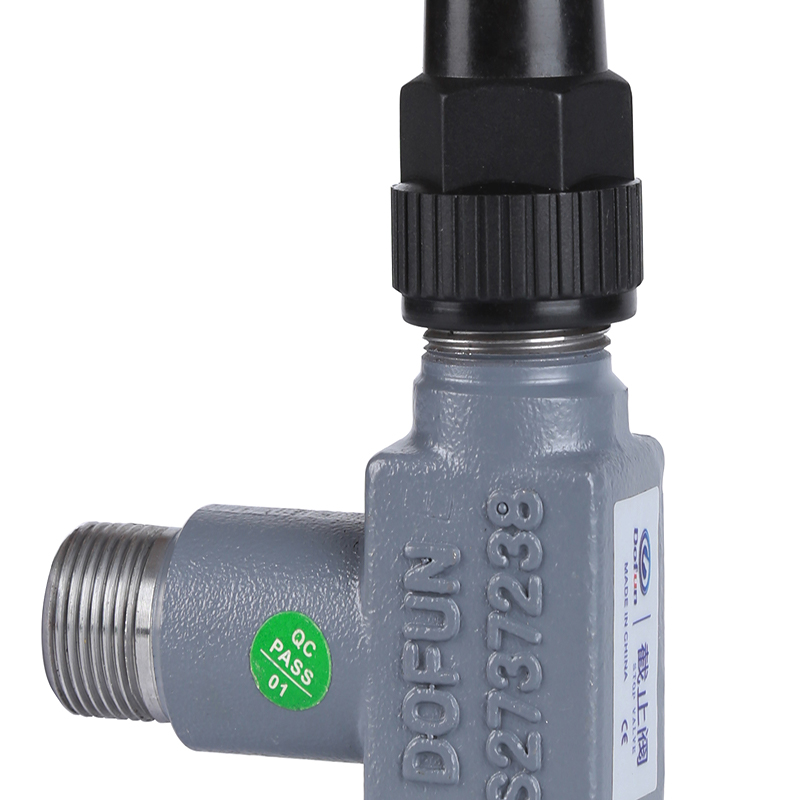

SVSSVA Small Stop-Valve for cold room

1、 Technical Parameter

Nominal Diameter: DN6-DN10

Nominal Pressure: 4MPa,6.3Mpa

 Applicable Medium: Ammonia,Fluorine and CO2 other refrigerants.

Applicable Temperature: -50 ℃ ~ + 150 ℃



2、 Order Goods

Please tell us the model,the structural type, nominal pressure, and thread

connection type when ordering. and thread connection also need to specify

the thread specification and connection method.

 E.g: DN6-A ,It is means DN6 Angle Type Stop Valve, Nominal Pressure is 4 MPa.

DN6-HA ,It is means DN6 Angle Type Stop Valve,Nominal Pressure is 6.3

MPa.When the nominal pressure is not specified, its default state is 4MPa.

SKU: SVSSVA Small Stop-Valve Category:
Description

Description

1、 Technical Parameter

Nominal Diameter: DN6-DN10

Nominal Pressure: 4MPa,6.3Mpa

 Applicable Medium: Ammonia,Fluorine and CO2 other refrigerants.

Applicable Temperature: -50 ℃ ~ + 150 ℃



2、 Order Goods

Please tell us the model,the structural type, nominal pressure, and thread

connection type when ordering. and thread connection also need to specify

the thread specification and connection method.

 E.g: DN6-A ,It is means DN6 Angle Type Stop Valve, Nominal Pressure is 4 MPa.

DN6-HA ,It is means DN6 Angle Type Stop Valve,Nominal Pressure is 6.3

MPa.When the nominal pressure is not specified, its default state is 4MPa.

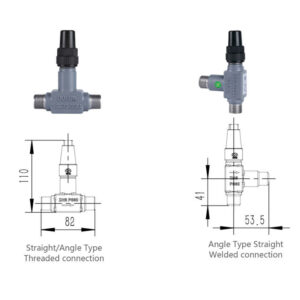

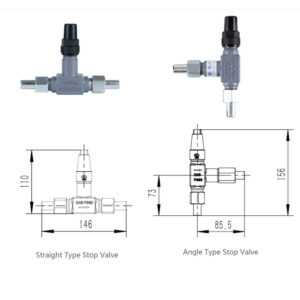

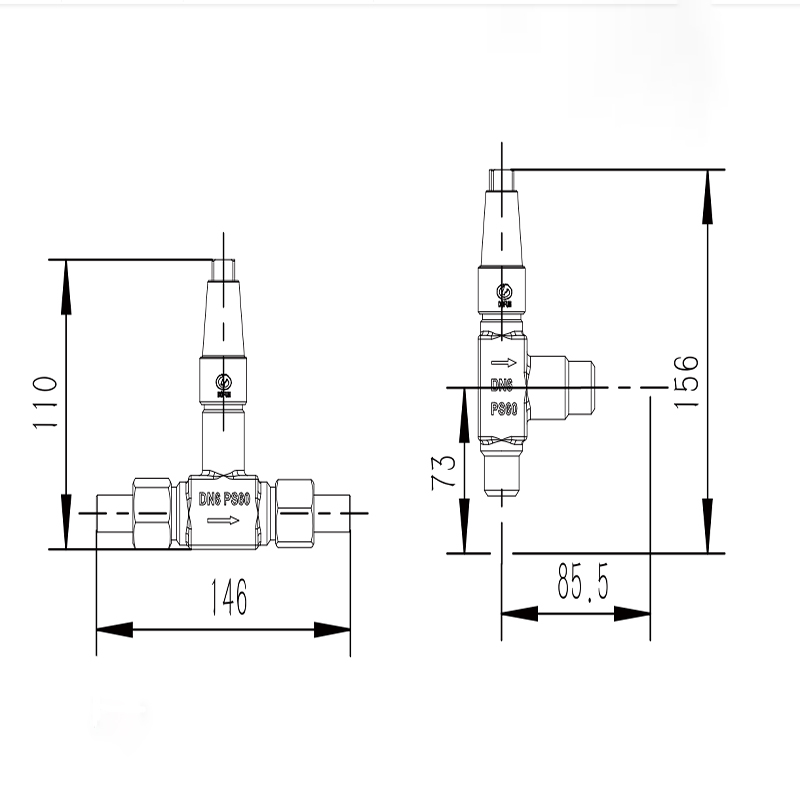

Straight Welded Type Stop Valve is only retains the angle structure. The angle configuration can process different center sizes according to requirements, and the diagram is default configuration size

Straight Welded Type Stop Valve is only retains the angle structure. The angle configuration can process different center sizes according to requirements, and the diagram is default configuration size.

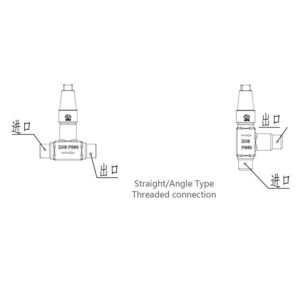

Thread Specification Table Of Thread Connection Valve
Model Inlet Size Outlet Size Remark
SVS(A)-01 M20×1.5 M20×1.5  External thread
SVS(A)-02 NPT 1/4 NPT 1/4
SVS(A)-03 NPT 3/8 NPT 3/8




SVS(A)-04





NPT 1/2





NPT 1/2

The internal and
external threads can be
combined into different
forms as required.
SVS(A)-05 R2 1/4 Rc 1/4 Inlet are internal thread

outlet are internal thread 55°

sealed pipe thread

SVS(A)-06 R2 3/8 Rc 3/8




SVS(A)-07





R2





1/2





Rc 1/2
