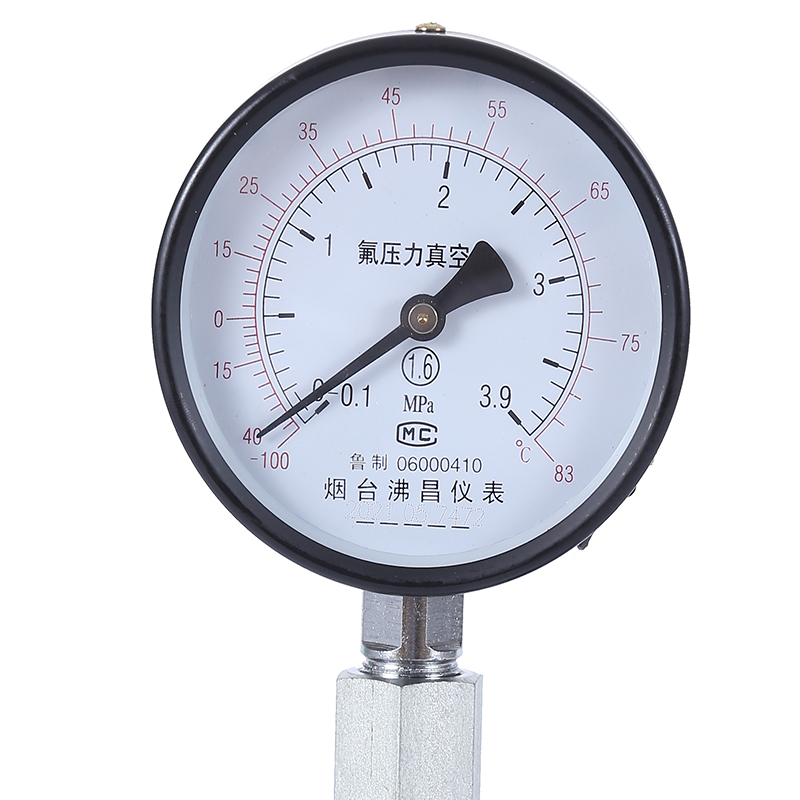

Thread Specification Table Of Thread Connection Pressure Gauge Valve

1Technical Parameter

◆  Nominal Diameter: DN6-DN10

◆  Nominal Pressure: 4.0MPa,6.3Mpa

◆  Applicable Medium: Ammonia,Fluorine and CO2 other refrigerants.

◆  Applicable Temperature: -50 ℃ ~ + 150 ℃

2、Order Goods

◆    Please tell us the model ,structural type and nominal pressure you want when ordering.

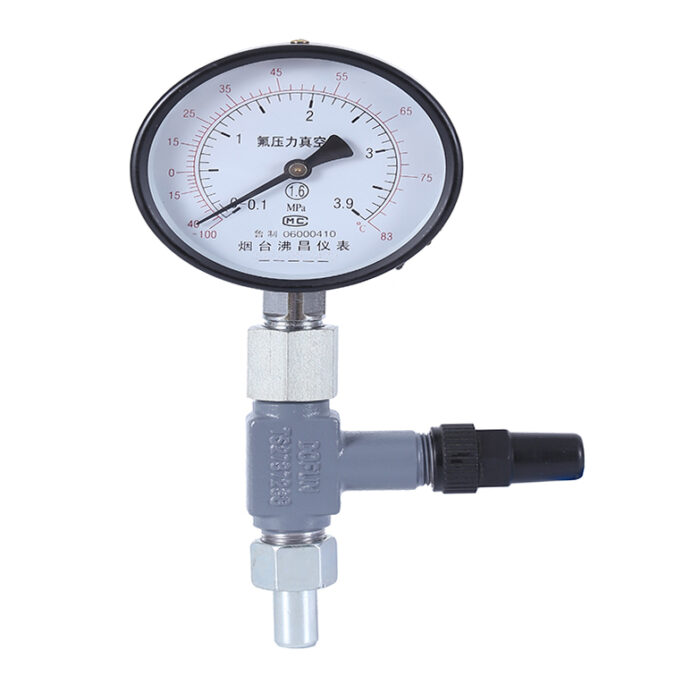

◆  E.g:PGV10-A It is means DN10 Angle Type Pressure Gauge Valve,Nominal Pressure is 4.0MPa.

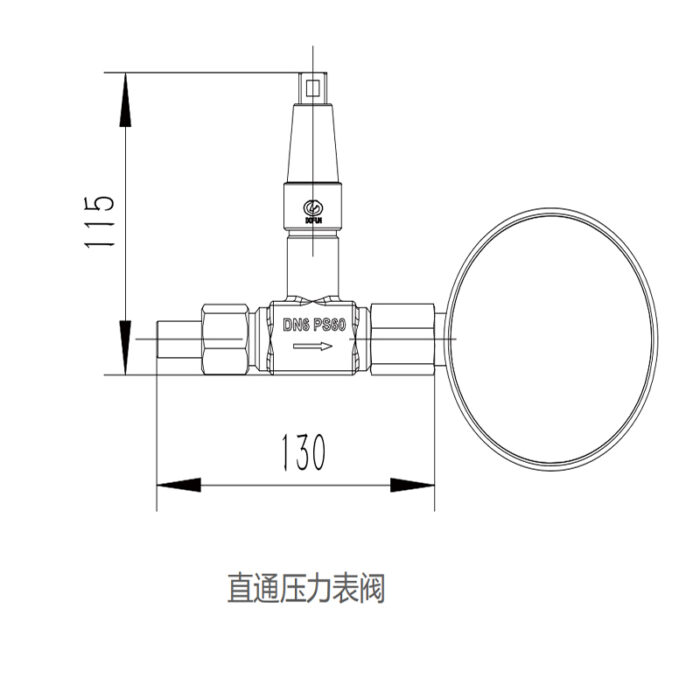

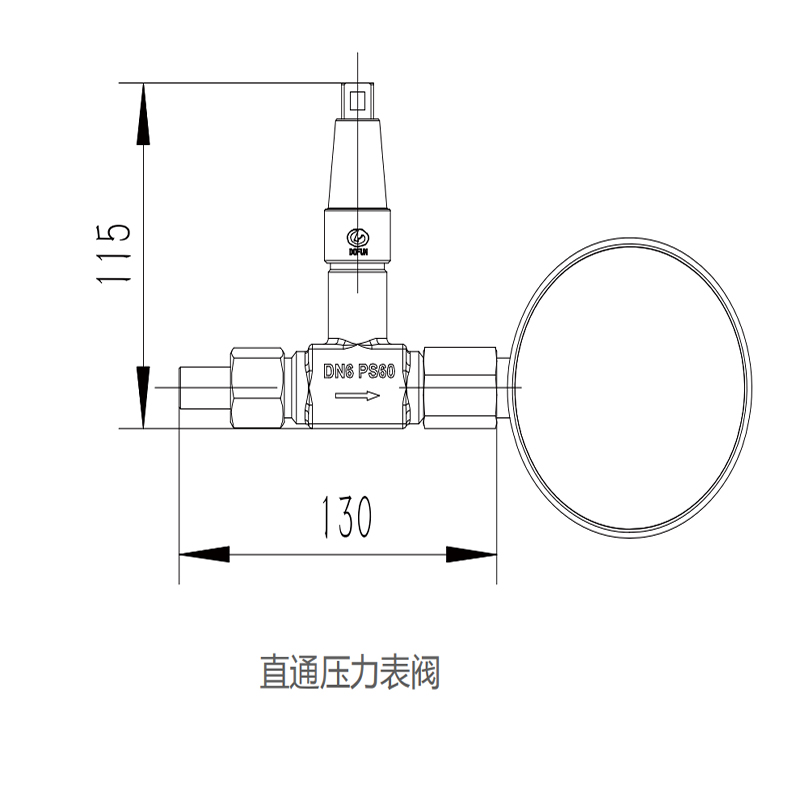

PGV10-S It is means DN10 Straight Type Pressure Gauge Valve,Nominal Pressure is 4.0MPa.

PGV10-HS It is means DN10 Straight Type Pressure Gauge Valve,Nominal Pressure is 6.3Mpa.

The nut of the Pressure Gauge Valve connected to the pressure gauge defaults to M20×1.5, left-handed, and it should be specified when other connection dimensions are required.

SKU: Thread Specification Table Of Thread Connection Pressure Gauge Valve Category:
Description

Description

1Technical Parameter

◆  Nominal Diameter: DN6-DN10

◆  Nominal Pressure: 4.0MPa,6.3Mpa

◆  Applicable Medium: Ammonia,Fluorine and CO2 other refrigerants.

◆  Applicable Temperature: -50 ℃ ~ + 150 ℃

2、Order Goods

◆    Please tell us the model ,structural type and nominal pressure you want when ordering.

◆  E.g:PGV10-A It is means DN10 Angle Type Pressure Gauge Valve,Nominal Pressure is 4.0MPa.

PGV10-S It is means DN10 Straight Type Pressure Gauge Valve,Nominal Pressure is 4.0MPa.

PGV10-HS It is means DN10 Straight Type Pressure Gauge Valve,Nominal Pressure is 6.3Mpa.

The nut of the Pressure Gauge Valve connected to the pressure gauge defaults to M20×1.5, left-handed, and it should be specified when other connection dimensions are required.

Thread Specification Table Of Thread Connection Pressure Gauge Valve
Model  Inlet Size  Inlet Size
PGV(S/A)-01 M20×1.5 M20×1.5
PGV(S/A)-02 NPT 1/4 M20×1.5
PGV(S/A)-03 NPT 3/8 M20×1.5
PGV(S/A)-04 NPT 1/2 M20×1.5
PGV(S/A)-05 R2  1/4 M20×1.5
PGV(S/A)-06 R2  3/8 M20×1.5
PGV(S/A)-07 R2  1/2 M20×1.5
