The project of Uzbekistan Fruit Cold Storage Room

Fruit Cold Storage Room is the widely used professional cold room to storage fruit or vegetable. Our successful installed fruit cold storage room further validates the vast refrigeration market in Uzbekistan, especially in fruit storage.

Why build a fresh-keeping cold storage?

The economic benefits of a fresh-keeping storage for fruits are quite significant. You only need a one-time investment for construction of the cold storage, which will have useful life reaching 20 to 30 years, and you can already enjoy the benefits of your investment the very same year. The cold storage for fruits has a wide range of applications. Fruits and vegetables placed inside the fresh-keeping storage will have a long shelf life and high economic benefits. For example, grapes can be kept fresh for 7 months, apples for 6 months and garlic shoots for 7 months. The quality remains the same and the product stays fresh and delicate. The total wastage is no more than 5%.

Features and Advantages of Installing ZKGY’s Fresh-keeping Cold Storage

1. Insulation materials for the cold storage structure for fruits and vegetables are generally made of polyurethane- or polystyrene-coated color steel plates, stainless steel plates, aluminum alloy plates, etc. The plates have characteristics of automatic film lamination, automatic infusion, automatic rolling and automatic forming to guarantee the thermal insulation effect of the fresh-keeping cold storage and to reduce the user’s operating costs.

2. The function of the refrigeration compressor of the cold storage for fruits and vegetables is to cool down the cold storage rapidly. It has features like excellent performance, convenient operation, low failure rate, etc.

3. The air cooler used is basically a ceiling-mounted air cooler, which reduces the volume occupied in the cold storage and solves the problem of the recirculating system of fuel oil so the unit can work normally and have a long useful life. It also has the function of thermal insulation, ventilation and elimination of foul smell.

4. Automated components were designed to ensure the sensitivity and reliability of the system’s refrigeration regulator.

5. The electrical control system performs electric temperature control with electric defrost and final temperature control. An electrical control system can electrically control the temperature of several warehouse structures.


Fruit Cold Storage Room

Uzbekistan has a severe arid continental climate. Rainfall is concentrated in the eastern area. Winter is short and summer is hot and long. The average temperature in July is 26~32℃, the daytime temperature in the south is often as high as 40℃, the winter is short and cold, the average temperature in January is -6~-3℃, and the minimum temperature in the north is -38℃.

As the climate changes, people are most concerned about how to store the fruits, so how to keep the fruit fresh? For fruit planting industry and fruit sellers, the most important concern is the construction of fruit cold storage room. Let’s see how OnlyKem analyses it for our customers in Uzbekistan.

When building a fruit cold storage room, we must know that the preservation cold room is designed to inhibit the activity of microbes and enzymes, and to enable fruits  to achieve a long-term preservation function.

The technique of keeping fresh in cold storage is to keep the stored fruit fresh at low temperature. Generally speaking, the temperature of the fruit should be limited to about 0 to 15 degrees. Keeping fresh and cold storage can effectively reduce the incidence of pathogenic bacteria, reduce the phenomenon of fruit decay.

It can also slow down the respiration and metabolism of fruits, thus preventing decay and prolonging the storage time of fruits, which is why we need to build fruit cold storage room. With the emergence of cooling machinery, it is possible to allow preservation techniques to be carried out after a phenomenon of rapid freezing, so that the quality of stored fruits can be preserved by a large margin.

When fruit cold storage room is built, polyurethane is generally used as material, and high pressure foaming technology can produce different length, different specifications of the insulation sandwich panel, so that the needs of different customers can be met.

Next, let’s show you the details of the project of OnlyKem fruit cold storage room in Uzbekistan.

Fruit Cold Storage Room for Sale in Uzbekistan Project Overview

Size: 12m(Length)*9m(Width)*5m(Height)

Temperature: 0+5 degree

Voltage: 380v/50Hz/3Ph

Fruit Cold Storage Room Installation parts

PU panel

  • Material: CFC-Free polyurethane, it is international standard of environmental protection material, good quality assurance
  • Metal sheet: Color steel, stainless steel, aluminum steel, etc. can be provided
  • Density: 44kg/m3, foaming time:30~40 minutes, good insulation
  • Thickness:100mm for fruit cold storage room, 50mm,75mm,120mm,150mm,200mm can be provided

PU panel

Sliding door

  • Size: 1.5*2m for fruit cold storage room, the size can be customized
  • Sliding door built-in metal frame
  • The edge of the door frame is provided with a low temperature resistant sealing strip
  • Stainless steel hinge and door lock
  • Door frame with built-in cam-lock
  • Use stainless steel rails
  • Stainless steel screw bolt

Fruit Cold Storage Room Cooling system

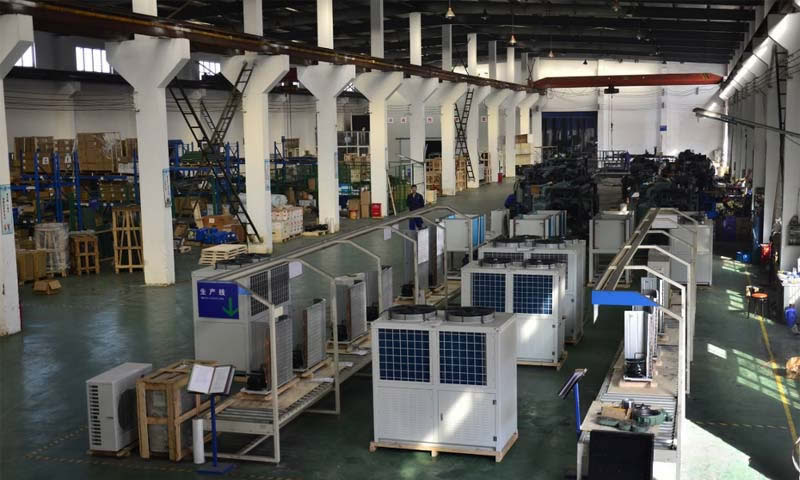

Condensing unit

  • Fruit cold storage room condensing unit is equipped with famous brand compressor, German Bitzer, vibration absorb, oil separator, air cold condenser, axial fan, oil receiver, dry filter, sight glass, solenoid valve, dual pressure switch, dual pressure gauge, etc.
  • New generation ofcondensing unit with Ozone friendly refrigerants, R404a, R407c, R507c, etc.
  • Designed for ambient temperature of up to 52°
  • High pressure safety cut off with manual reset.
  • Axial fan motor, high air flow with low noise.
  • Air cooled condensing unit, high performance and convenient.
  • Over 363 PSI dry nitrogen gas pressure test after completion of the piping circuit. no any leak.

Air cooler

  • Model: 4 sets of DL-105 air cooler with more balance cooling capacity.
  • Blue fins/Hydrophilic aluminum foil:there are Anti-corrosion material in its surface,it have good anti-corrosion performance.
  • Wavy fins: it can form air flow and speed air flow.
  • Stainless steel screws: Better Anti-corrosion performance ,more suitable for evaporator using environment.Better Anti-corrosion performance and longtime using, beautiful.
  • Wall-hanging type: Easy to install,saving space,save install cost.
  • Acceptable OEM: Save time and effort, convenient to facilitate brand promotion for customer.
