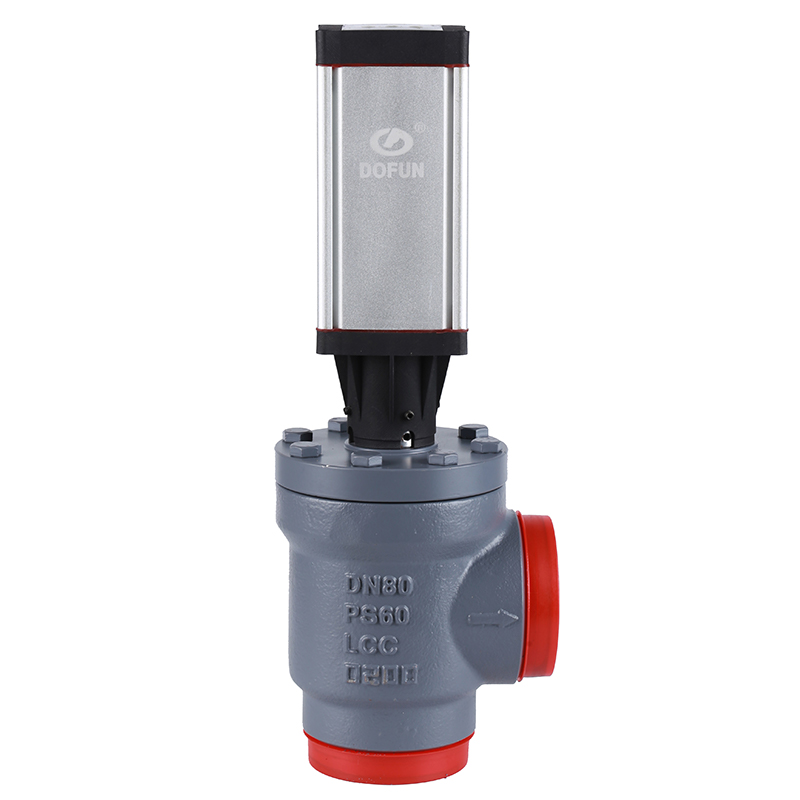

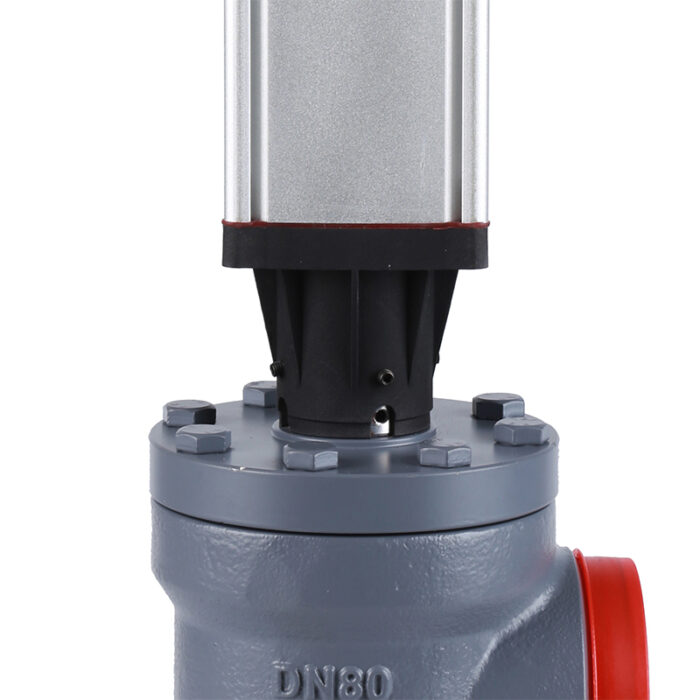

Angle Type Motor Valve
$716.00 – $1,172.00
1、Technical Parameter
◆ Analog Signal 0-10V, 4-20mA, PLC bus control mode;
◆Modular design, easy to install, maintain and repair;
◆Grade 5 outer seal structure ensures zero leakage;
◆Temperature Range: -50 ℃ ~ + 150 ℃
◆Power Supply Voltage: 24V
◆Nominal Diameter: DN20-DN125
◆Nominal Pressure: 4.0MPa
◆ Structure Form: Angle Type Structure’s code is A
- Instruction
Instruction:Used for Control Valves in industrial refrigeration pipelines
easy to realize automatic control.
3、Order Goods
◆Please tell us the model and structure type you want when ordering
◆ E.g.:DFMV40-A It is means Angle type Motor Valve.
- Description
- Reviews (0)
Description
1、Technical Parameter
◆ Analog Signal 0-10V, 4-20mA, PLC bus control mode;
◆Modular design, easy to install, maintain and repair;
◆Grade 5 outer seal structure ensures zero leakage;
◆Temperature Range: -50 ℃ ~ + 150 ℃
◆Power Supply Voltage: 24V
◆Nominal Diameter: DN20-DN125
◆Nominal Pressure: 4.0MPa
◆ Structure Form: Angle Type Structure’s code is A
- Instruction
Instruction:Used for Control Valves in industrial refrigeration pipelines
easy to realize automatic control.
3、Order Goods
◆Please tell us the model and structure type you want when ordering
◆ E.g.:DFMV40-A It is means Angle type Motor Valve.

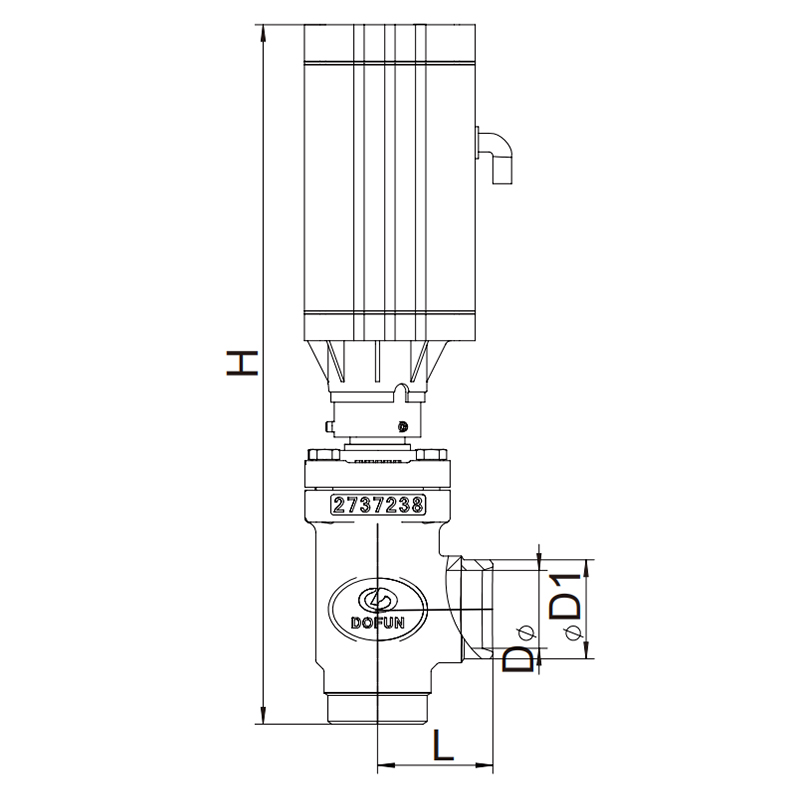

Angle Type Motor Valve | ||||||
Model | Nominal Diameter (DN) | Size(mm) | ||||
ΦD1-GB | ΦD1-DIN | ΦD | L | H | ||
DFMV-A |
15 | 22 | 21.3 | 15 | 120 | 268 |
20 | 27 | 27 | 20 | 45 | 315 | |
25 | 32 | 33.7 | 25 | 45 | 315 | |
32 | 38 | 42.4 | 32 | 56 | 368 | |
40 | 45 | 48.3 | 38 | 56 | 368 | |
50 | 57 | 60.3 | 49 | 60 | 390 | |
65 | 76 | 76 | 62 | 90 | 390 | |
80 | 89 | 89 | 76 | 106 | 430 | |
100 | 108 | 114 | 96 | 121 | 468 | |
125 | 133 | 139.7 | 120 | 133 | 495 |
Related products

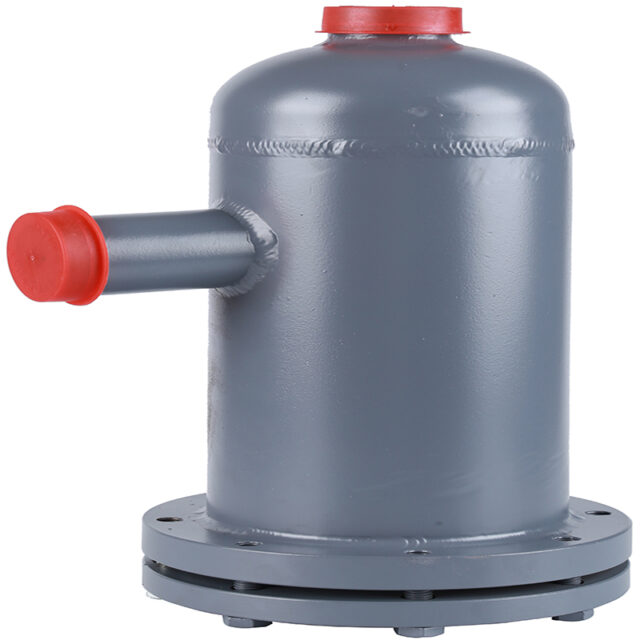

Cartridge Filter CFVD for cold storage
$43.00 – $313.00

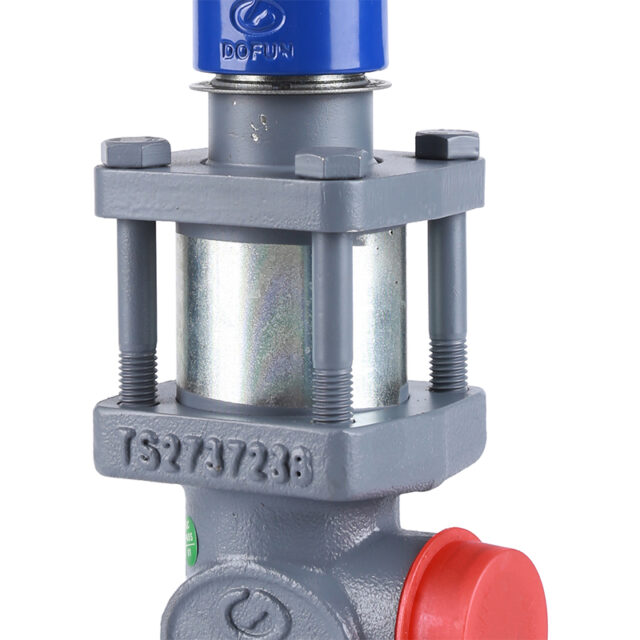

Overflow Valve OFD for cold storage
$102.00 – $113.00

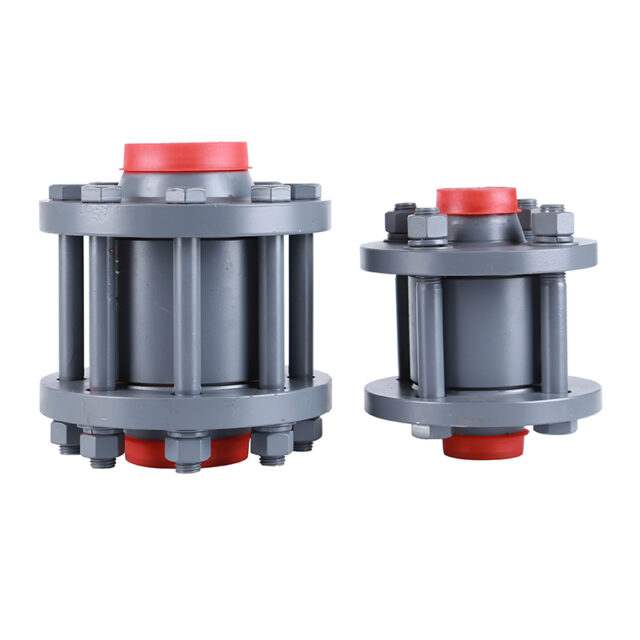

Neck Flange Check Valve
$44.00 – $547.00

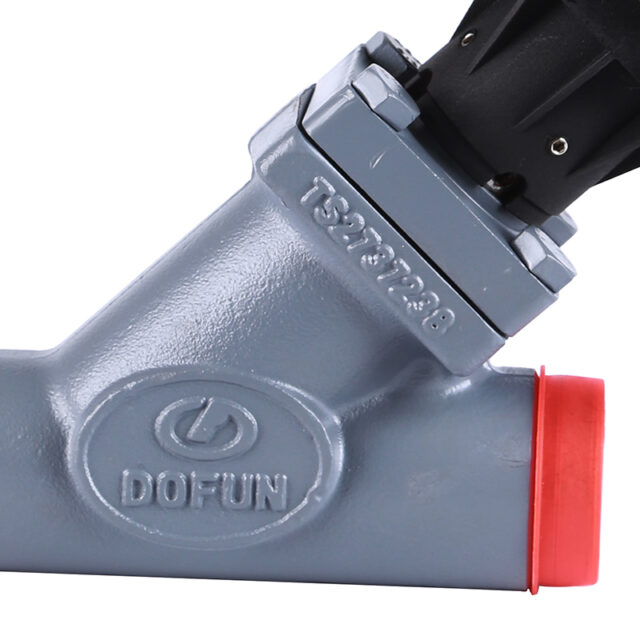

Straight Type Motor Valve
