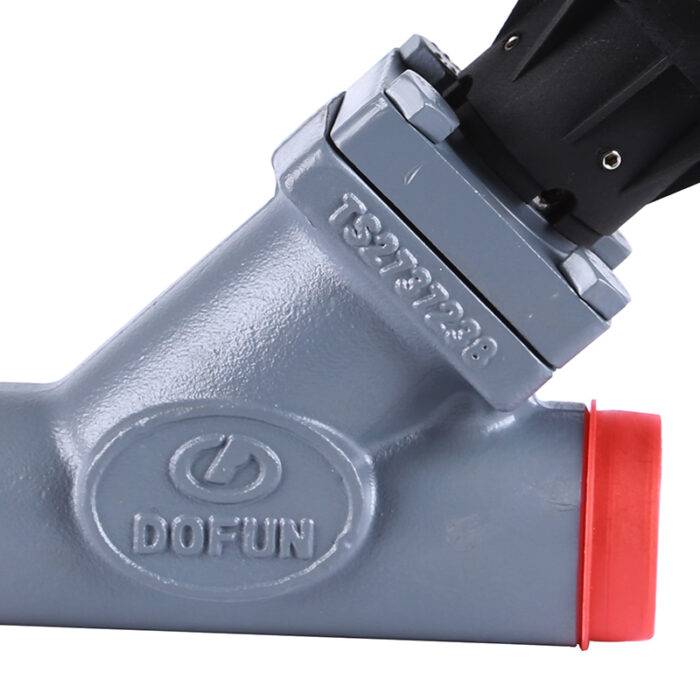

Straight Type Motor Valve

$719.00$1,188.00

1、Technical Parameter

◆ Analog Signal 0-10V, 4-20mA, PLC bus control mode;

◆Modular design, easy to install, maintain and repair;

◆Grade 5 outer seal structure ensures zero leakage;

◆Temperature Range: -50 ℃ ~ + 150 ℃

◆Power Supply Voltage: 24V

◆Nominal Diameter: DN20-DN125

◆Nominal Pressure: 4.0MPa

◆ Structure Form: Angle Type Structure’s code is A

  • Instruction

 Instruction:Used for Control Valves in industrial refrigeration pipelines

easy to realize automatic control.

3、Order Goods

◆Please tell us the model and structure type you want when ordering

◆ E.g.:DFMV40-A It is means Angle type Motor Valve.

SKU: Straight Type Motor Valve Category:
Description

Description

1、Technical Parameter

◆ Analog Signal 0-10V, 4-20mA, PLC bus control mode;

◆Modular design, easy to install, maintain and repair;

◆Grade 5 outer seal structure ensures zero leakage;

◆Temperature Range: -50 ℃ ~ + 150 ℃

◆Power Supply Voltage: 24V

◆Nominal Diameter: DN20-DN125

◆Nominal Pressure: 4.0MPa

◆ Structure Form:Straight Type Structure’s code is B

  • Instruction

 Instruction:Used for Control Valves in industrial refrigeration pipelines

easy to realize automatic control.

3、Order Goods

◆Please tell us the model and structure type you want when ordering

◆ E.g.:DFMV40-A It is means Angle type Motor Valve.

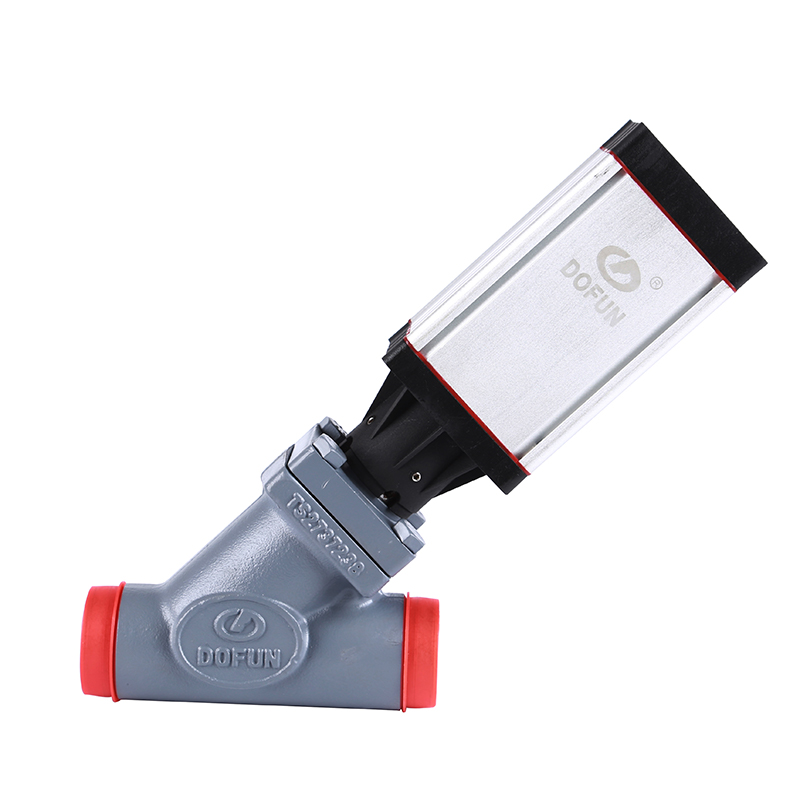

 Straight Type Motor Valve  Straight Type Motor Valve

             Straight Type Motor Valve

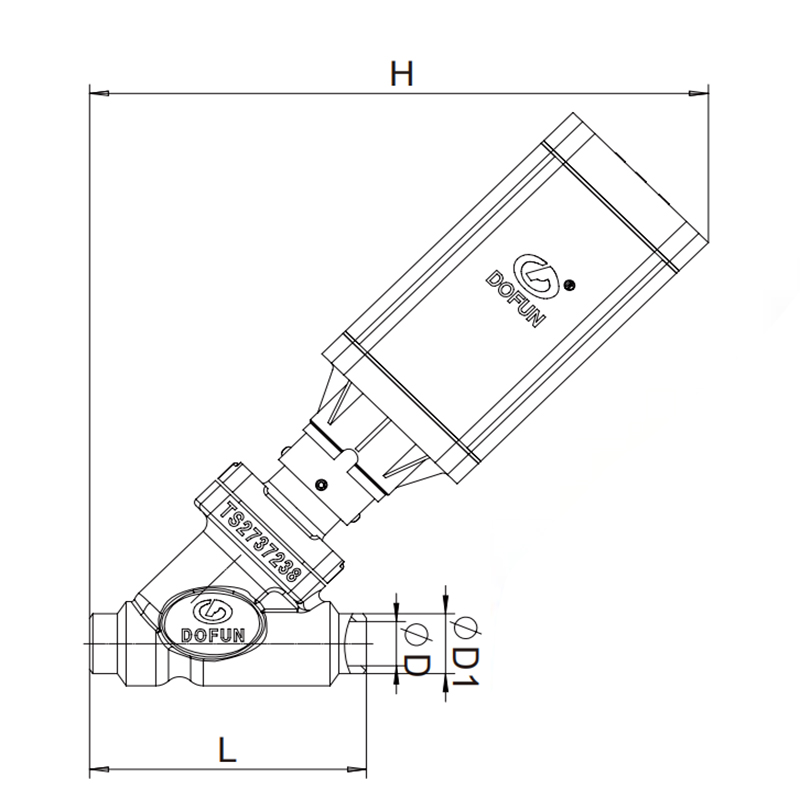

Model  Nominal Diameter (DN) Size(mm)
ΦD1-GB ΦD1-DIN ΦD1 L H






DFMV-S

15 22 21.3 15 120 268
20 27 27 20 120 268
25 32 33.7 25 120 268
32 38 42.4 32 156 335
40 45 48.3 38 156 335
50 57 60.3 49 149 352
65 76 76 62 176 352
80 89 89 76 216 395
100 108 114 96 264 423
125 133 139.7 120 320 443
