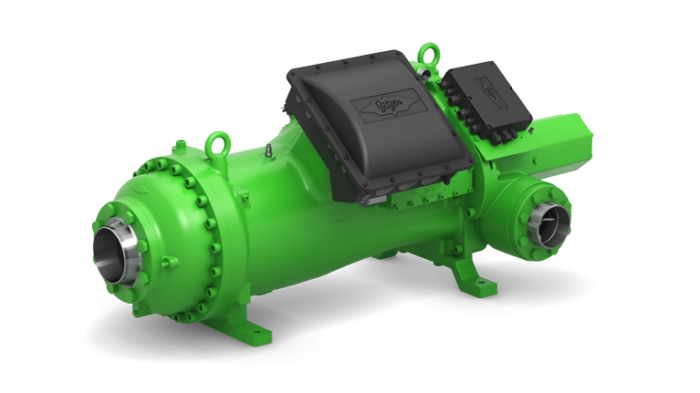

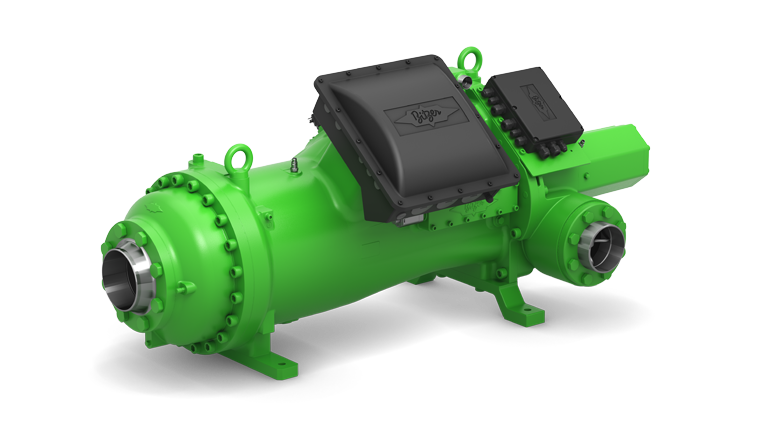

Bitzer Screw Compressors Semi-hermetic For Standard refrigerants series

The new semi-hermetic series of BITZER screw compressors for use in large-scale commercial, industrial and process cooling applications with high efficiency requirements. The series combines increased refrigeration capacity with proven reliability and outstanding energy efficiency in full and part load. The on-board IQ MODULE simplifies installation and service and increases the system uptime.

Refrigerants

  • HFC, HFC blends, HCFC, non-flammable, A1
  • HFO blends, non-flammable, A1
  • HFO blends, flammable, A2L
  • HFO, flammable, A2L

Capacity range

  • Two models: 910 … 1,015 m³/h at 50 Hz

Applications

  • Refrigerated MT and LT storage
  • Blast chilling/freezing systems
  • Process and A/C liquid chillers
  • Ice production
  • Heat recovery
SKU: BITZER screw compressors Category: Tag:
Description

Description

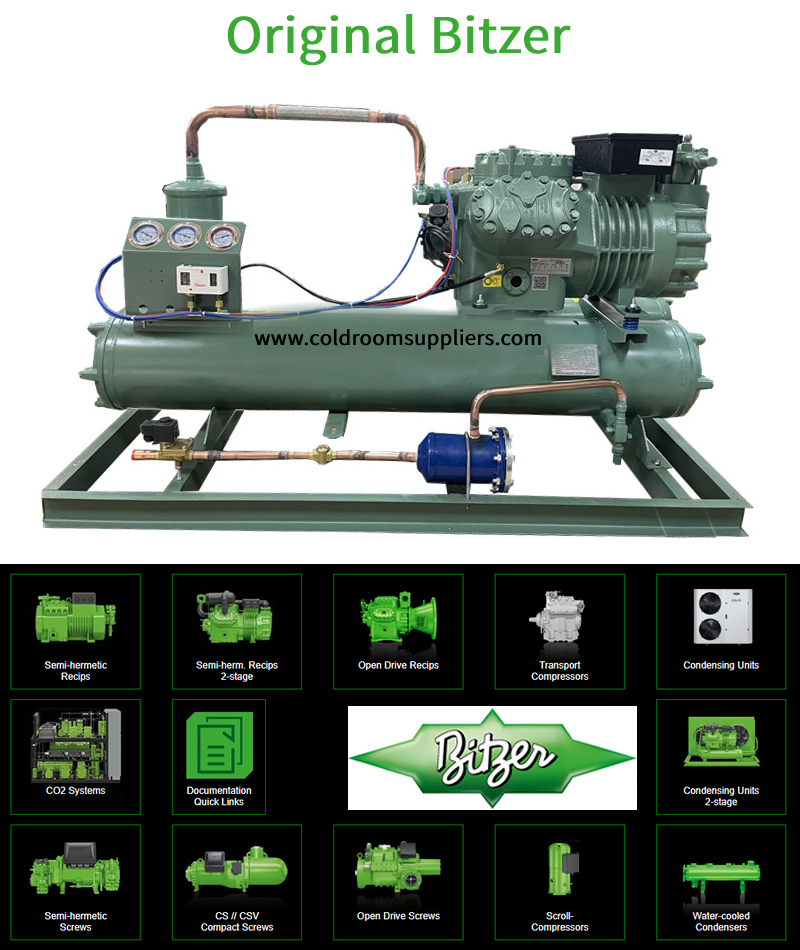

Bitzer Piston Compressor

CASGYW can satisfy your kind requirement with supplying the Bitzer piston head compressor, air cooled condensing unit, and piston- type parallel compressor unit

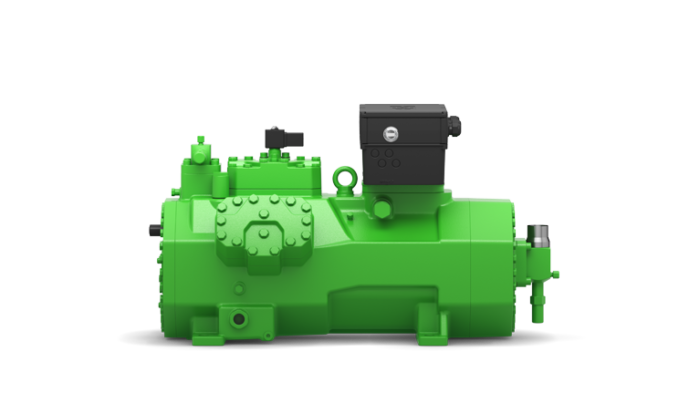

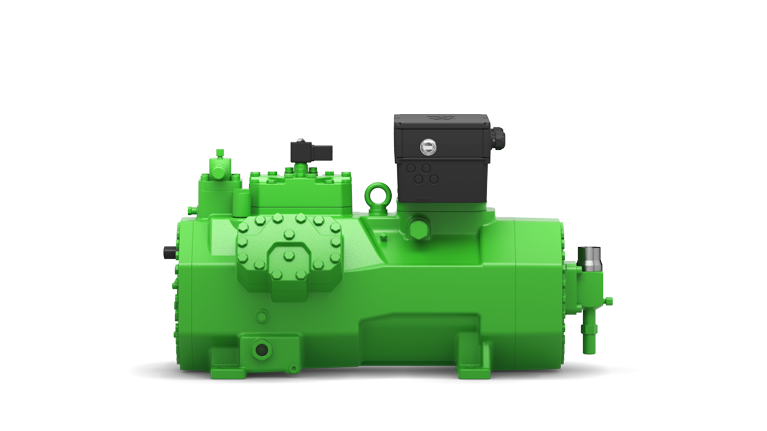

Bitzer SEMI-HERMETIC Compressor

Bitzer SEMI-HERMETIC Compressor

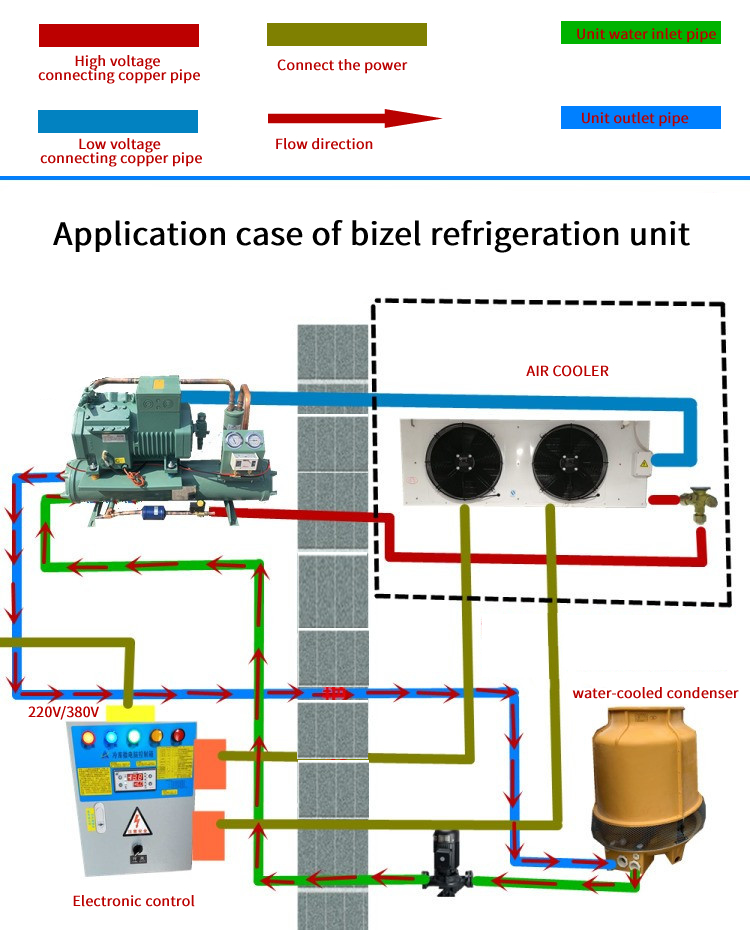

Bitzer application case:

Default-configuration-of-bizel-water-cooling-unit

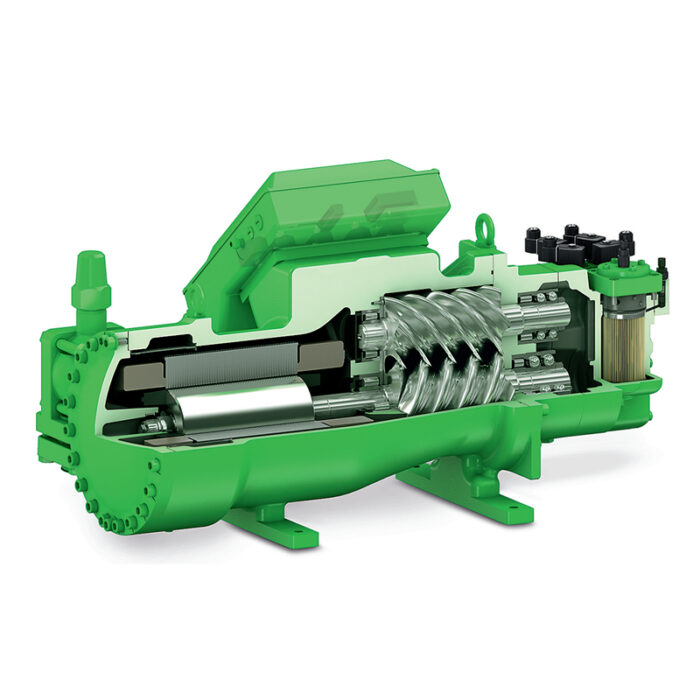

1.Bitzer screw head compressor

-CSH SERIES:

CSH6553-35(Y)  137 *

CSH6553-50(Y)  137 *

CSH6563-40(Y)  170 *

CSH6563-60(Y)  170 *

CSH6583-50(Y)  195 *

CSH6593-60(Y)  220 *

CSH7553-50(Y)  197 *

CSH7553-70(Y)  197 *

CSH7563-60(Y)  227 *

CSH7563-80(Y)  227 *

CSH7573-70(Y)  258 *

CSH7573-90(Y)  258 *

CSH7583-80(Y)  295 *

CSH7583-100(Y)  295 *

CSH7593-90(Y)  336 *

CSH7593-110(Y)  336 *

CSH8553-80(Y)  315 *

CSH8553-110(Y)  315 *

CSH8563-90(Y)  359 *

CSH8563-125(Y)  359 *

CSH8573-110(Y)  410 *

CSH8573-140(Y)  410 *

CSH8583-125(Y)  470 *

CSH8583-160(Y)  470 *

CSH8593-140(Y)  535 *

CSH8593-180(Y)  535 *

CSH9553-180(Y)  535 *

CSH9563-160(Y)  615 *

CSH9563-210(Y)  615 *

CSH9573-180(Y)  700 *

CSH9573-240(Y)  700 *

CSH9583-210(Y)  805 *

CSH9583-280(Y)  805 *

CSH9593-240(Y)  910 *

CSH9593-300(Y)  910 *

CSH95103-280(Y)  1015 *

CSH95103-320(Y)  1015 *

CSH95113-320(Y)  1120 *

*Displacement in m³/h at 50 Hz

-CSW SERIES:

CSW6583-40(Y)  195 *

CSW6583-50(Y)  195 *

CSW6593-50(Y)  220 *

CSW6593-60(Y)  220 *

CSW7573-60(Y)  258 *

CSW7573-70(Y)  258 *

CSW7583-70(Y)  295 *

CSW7583-80(Y)  295 *

CSW7593-80(Y)  336 *

CSW7593-90(Y)  336 *

CSW8573-90(Y)  410 *

CSW8573-110(Y)  410 *

CSW8583-110(Y)  470 *

CSW8583-125(Y)  470 *

CSW8593-125(Y)  535 *

CSW8593-140(Y)  535 *

CSW9563-140(Y)  615 *

CSW9563-160(Y)  615 *

CSW9573-160(Y)  700 *

CSW9573-180(Y)  700 *

CSW9583-180(Y)  805 *

CSW9583-210(Y)  805 *

CSW9593-210(Y)  910 *

CSW9593-240(Y)  910 *

CSW95103-240(Y)  1015 *

CSW95103-280(Y)  1015 *

CSW95113-280(Y)  1120 *

CSW95113-320(Y)  1120 *

*Displacement in m³/h at 50 Hz

2.Bitzer Screw-type Parallel Compressor Unit

-Standard configuration of high-temperature compressor unit

Screw compressor, liquid receiver, gauge panel, high and low pressure controller, electric cabinet, oil separator, water cooling type oil cooler, economizer, liquid supply filter, suction line filter, injection components.

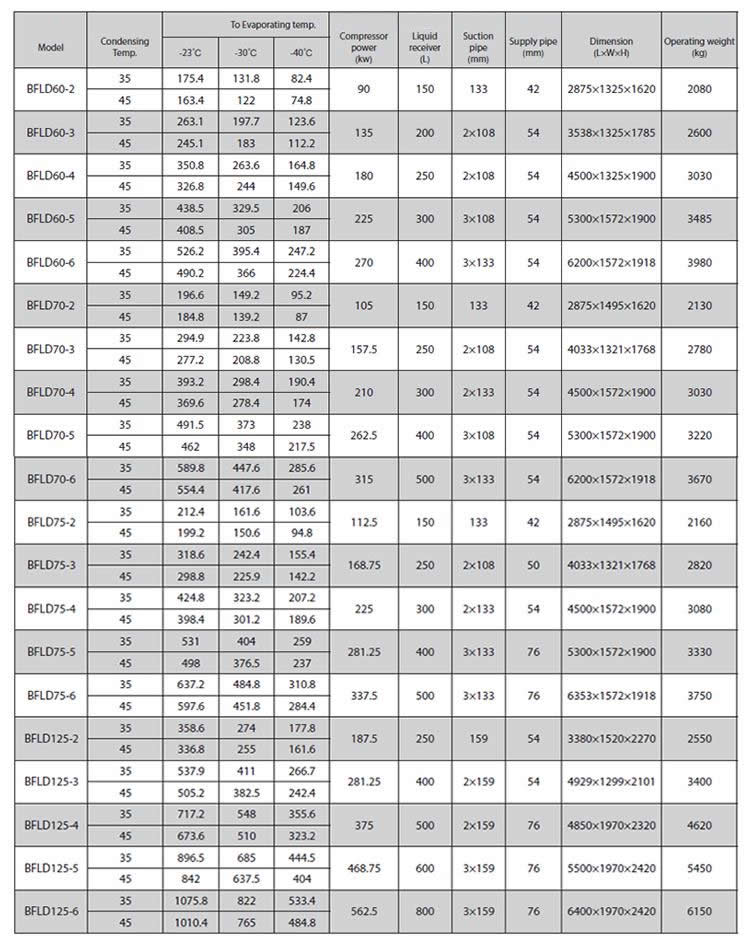

Bitzer Screw-type Parallel Compressor Unit

-Standard configuration of high-temperature compressor unit

Screw compressor, liquid receiver, gauge panel, high and low pressure controller, electric cabinet, oil separator, spray liquid cooling system, exhaust check valve, liquid supply filter, injection components.

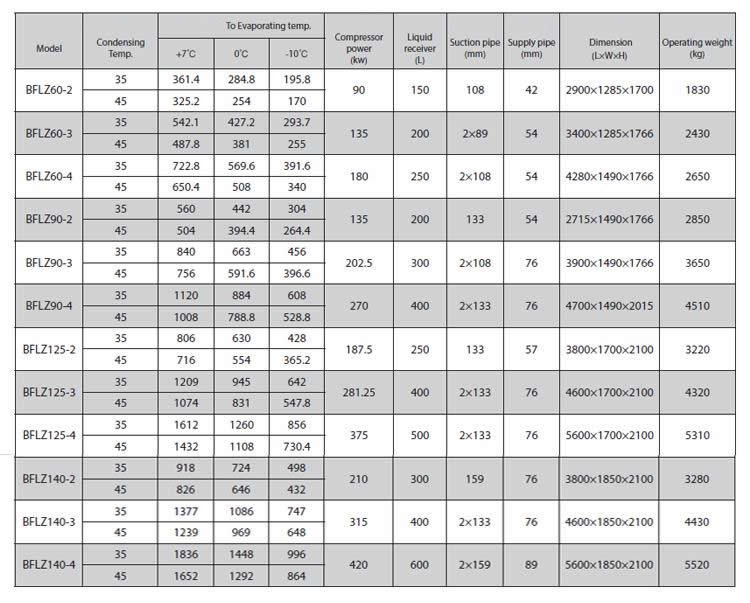

Bitzer Screw-type Parallel Compressor Unit
