Capillary copper pipe for Air-conditioner and refrigeration fields

Capillary copper pipe for Air-conditioner and refrigeration fields

Minimum order quantity:

10M/20M/50M







Please consult the customer service when placing an order: whatsapp:+008616605196699

SKU: Capillary copper pipe Category: Tag:
Description

Description

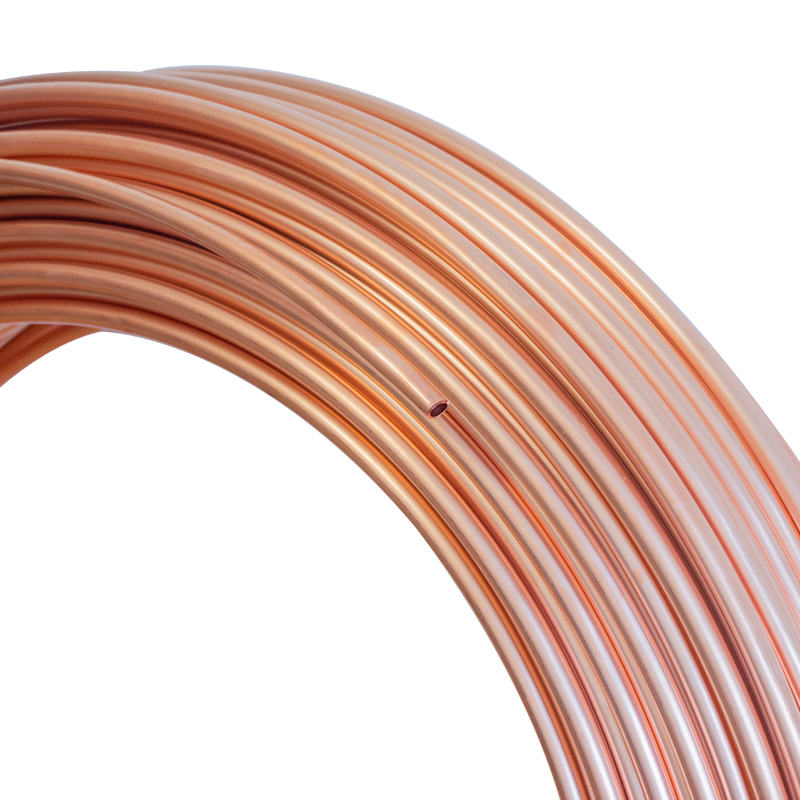

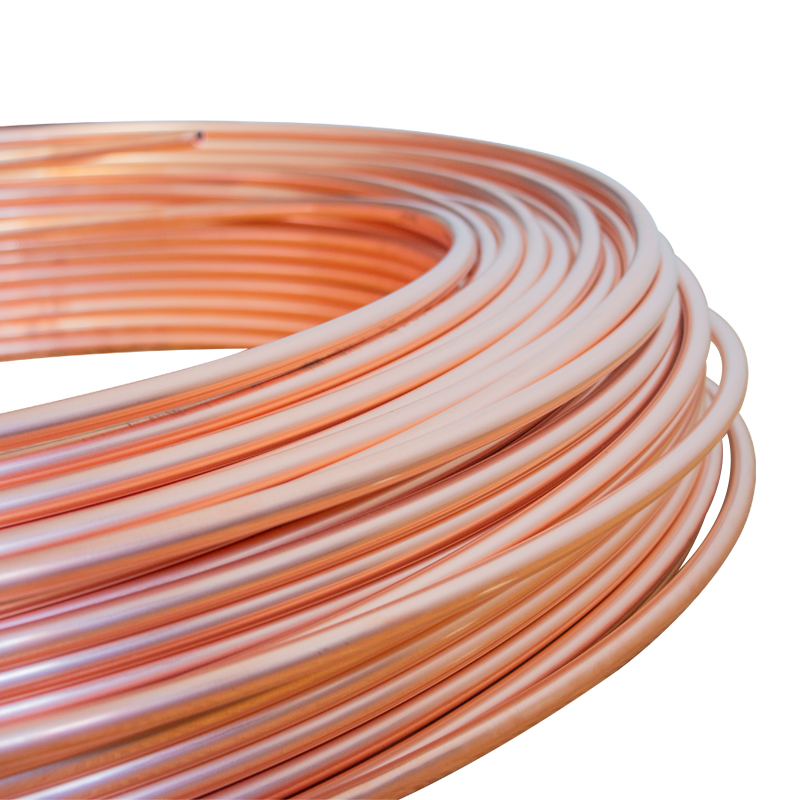

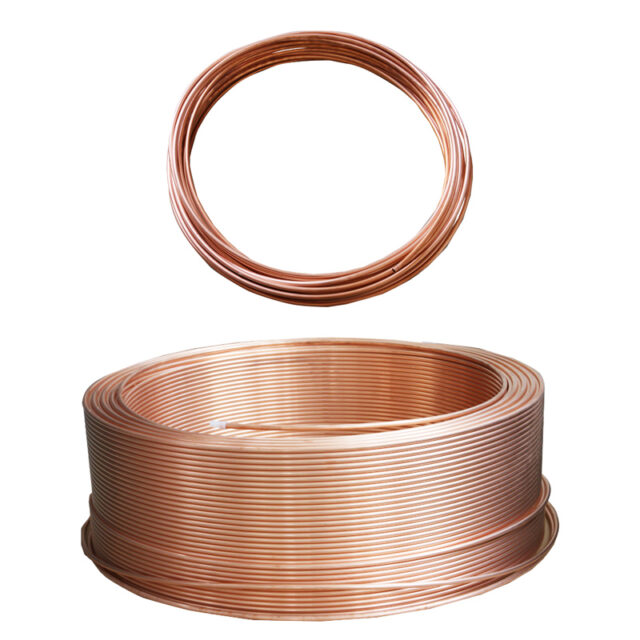

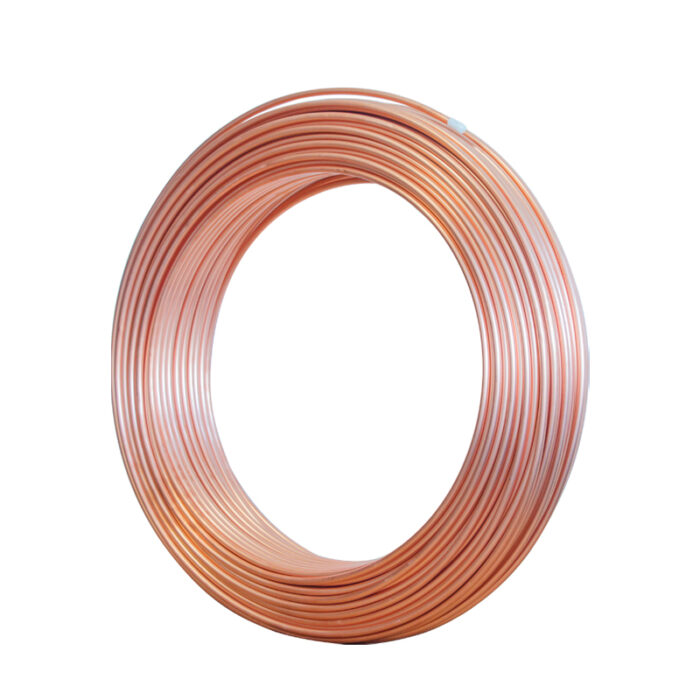

Capillary Copper Tube
Application: Air-conditioner and refrigeration fields.
Alloy No.: C12200
Temper: Soft / Hard
Standard: ASTM B360
Package: Each coil packed with plastic bag, then put in the carton.
Size Crose-sectional area of tube bore Quantity/coil
OD ID
inch mm inch mm inch² mm² 15m 30m 30kg
0.072 1.83 0.028 0.711 0.0006158 0.397 o o o
0.081 2.06 0.031 0.787 0.0007578 0.487 o o o
0.087 2.21 0.036 0.914 0.001018 0.657 o o o
0.093 2.36 0.042 1.067 0.001315 0.893 o o o
0.097 2.46 0.046 1.168 0.001662 1.07 / o o
0.106 2.69 0.054 1.372 0.00229 1.48 / o o
0.112 2.84 0.059 1.499 0.002734 1.76 / / o
0.125 3.18 0.07 1.778 0.00848 2.48 / / o
Chemical and mechanical property
Copper alloy No. Chemical composition Temper Mechanical property
copper %(minimum) phosphorus% Tensile strength Elongation%
C12200 99.9 0.015-0.040 H80 395 /
O60 ≥205 40

Capillary copper pipe
