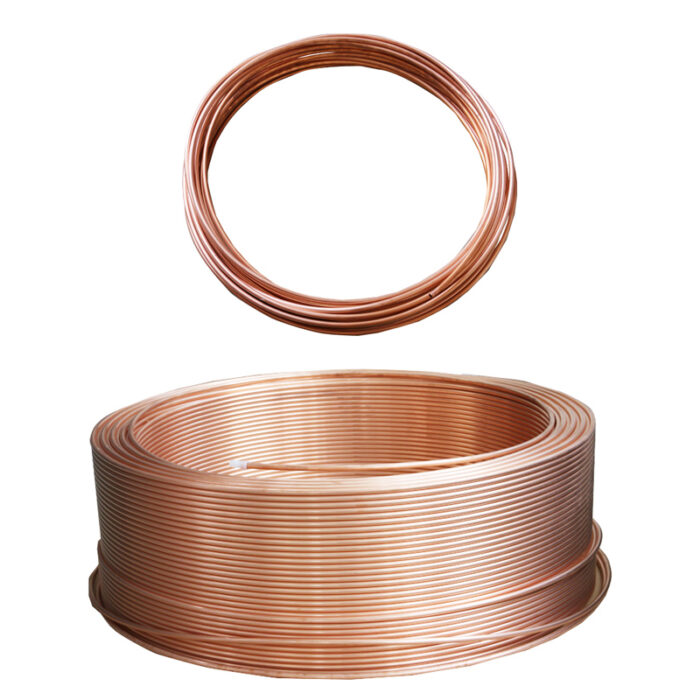

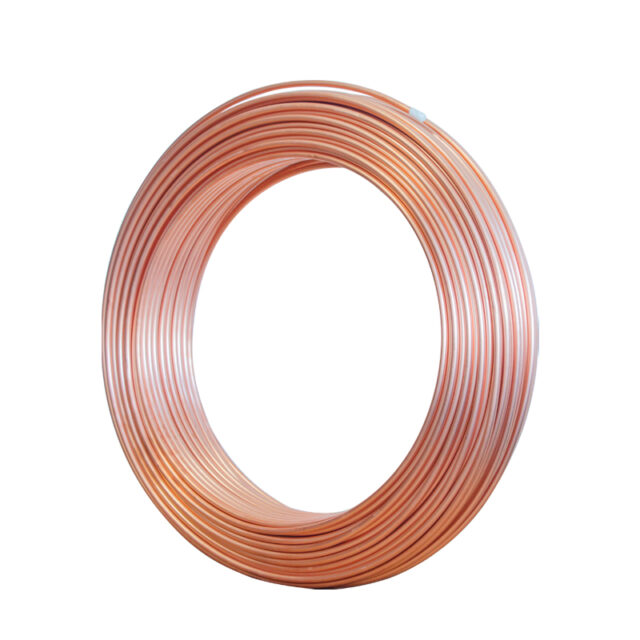

1/2″INCH COPPER PIPE ROLL FOR HVAC REFRIGERATION, PLUMBING – R410A- 5M/10M/15M

1/2″INCH COPPER PIPE ROLL FOR HVAC REFRIGERATION, PLUMBING

Minimum order quantity:

R410A- 5M/10M/15M

Please consult the customer service when placing an order: whatsapp:+008616605196699

SKU: COPPER PIPE Category:
Description

Description

1/2″INCH COPPER PIPE ROLL FOR HVAC REFRIGERATION, PLUMBING

Minimum order quantity:

R410A- 5M/10M/15M

SPECIFICATIONS:

  • Outside Diameter: 1/2 Inch (12.7MM)
  • Wall thickness: 0.81MM
  • Refrigerant: R410A
  • Material: Soft Copper
  • Length: 5M, 10M, 15M
  • Standard: AS/NZS 1571



FEATURES:

  • Our copper pipe is manufactured in accordance with Australian Standard AS/NZS 1571 Copper – Seamless tubes for Air-conditioning and Refrigeration.
  • All tube is cleaned and samples tested to meet the residue requirements of 0.038g/m2 as specified by AS/NZS 1571.
  • All Copper Pipes are electronically tested by Eddy Current method. The R410A rated copper tube is especially designed to comply with AS4041 Pressure Piping Code. Our R410A rated copper tube is capable of withstanding working pressures of 4131kPa when the refrigerant is operating at a temperature of 65°C.
R410A Copper Pipe:
1)Application: installation of air conditioner
2) Alloy No.: C12200
3) Temper: Soft
4)Standard: ASTM B280, AS1571,EN12735
5)Package: individually sealed by plastic bag packed by carton box of 1-2 rolls.
Type size OD WT Alloy NO. Temper Tensile strengh Elongation Burst pressure
inch mm mm Mpa % Mpa
Coil  1/4 6.35 0.7 T2 TP2 M 205 40 4.2
 3/8 9.53 0.8 T2 TP2 M 205 40 4.2
 1/2 12.7 0.8 T2 TP2 M 205 40 4.2
 5/8 15.88 1 T2 TP2 M 205 40 4.2
 3/4 19.05 1 T2 TP2 M 205 40 4.2
 1/4 6.35 0.6 T2 TP2 M 205 40 4.2
 3/8 9.53 0.6 T2 TP2 M 205 40 4.2
 1/2 12.7 0.7 T2 TP2 M 205 40 4.2
 5/8 15.88 0.9 T2 TP2 M 205 10-30. 4.2
 3/4 19.05 1 T2 TP2 M 205 10-30. 4.2
Straight Length  7/8 22.23 1.1 T2 TP2 Y2 245-320 10-30. 4.2
1 25.4 1.1 T2 TP2 Y2 245-320 10-30. 4.2
1 1/8 28.58 1.2 T2 TP2 Y2 245-320 10-30. 4.2
1 1/4 31.75 1.2 T2 TP2 Y2 245-320 10-30. 4.2
1 3/8 34.93 1.3 T2 TP2 Y2 245-320 10-30. 4.2
1 1/2 38.1 1.4 T2 TP2 Y2 245-320 10-30. 4.2
1 5/8 41.28 1.5 T2 TP2 Y2 245-320 10-30. 4.2
Remarks Metric specifications above case, take approximation.

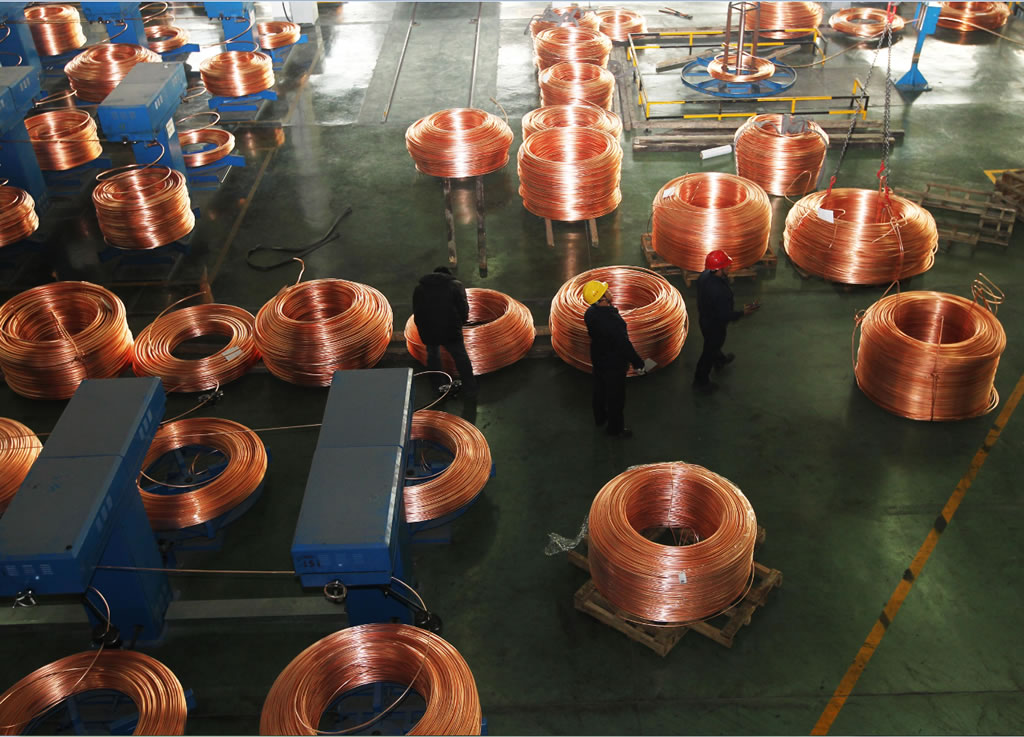

copper-pipe-manufacture
