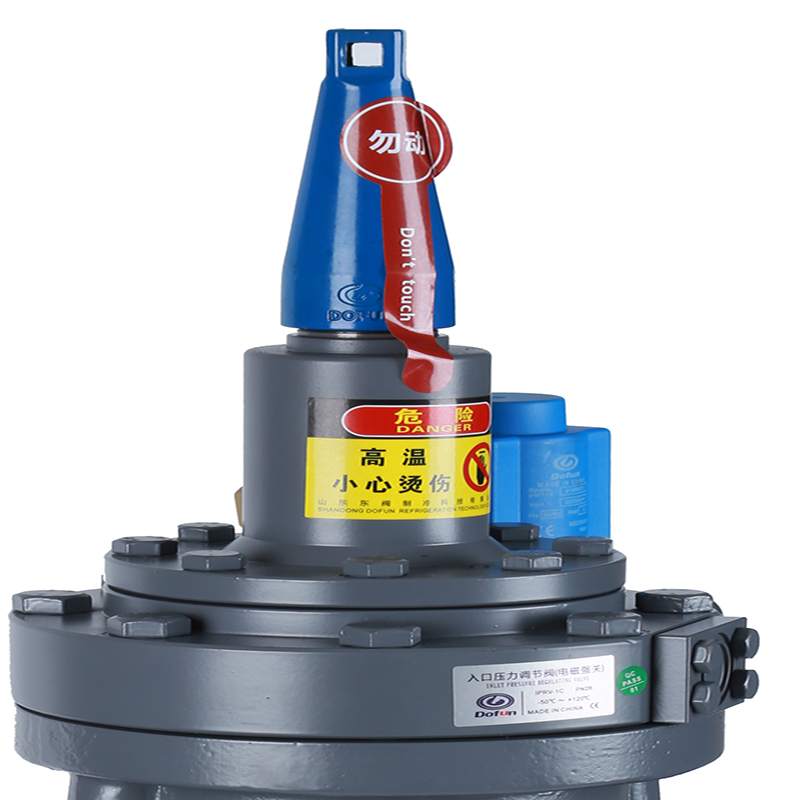

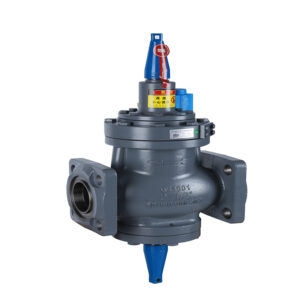

Pressure Regulating Valve(Solenoid Forced Close)

$438.00$2,625.00

1、Technical Parameter

◆ Model:IPRV-1C

◆ Nominal Diameter: DN25-DN125

◆ Pressure Adjustment Range: A:0~10.3bar D:5.2~19.3bar

◆ Nominal Pressure: 2.8MPa

◆ Applicable Medium: R12,R22,R502,R134a,R404a,R507,R717 and other refrigerants.

◆ Applicable Temperature: -50 ℃ ~ + 120 ℃

◆ Connection Method: flanges at both ends.

2、Instruction

The IPRV-1C Inlet Pressure Regulating Valve (Solenoid Forced Close) is the same as the IPRV inlet pressure regulating valve,which controls the inlet pressure and has a function of forced shut-off. It is adjusted when power is turned on and closed when power is turned off. When power is on: the main valve opens when the inlet pressure exceeds the set pressure of the pilot valve, and the main valve closes when the pressure is lower than the set value; when the power is off,inlet of the pressure pilot valve closes and the main valve closes. Suitable for opening during temperature control and closing during defrosting.

3、订货 Order Goods

◆  Please tell us the model , set pressure value and pressure adjustment range

you want when ordering.

◆  E.g.:IPRV40-1CD, 9bar

It is means DN40 Inlet Pressure Regulating Valve(Solenoid Forced Close),

Pressure Adjustment Range 5.2~19.3bar

Factory Setting Pressure: 9bar

If the set pressure is not specified, the Pressure Adjustment Range is factory

default 10bar, Pressure Adjustment Range is D.

SKU: Pressure Regulating Valve(Solenoid Forced Close) Category:
Description

Description

1、Technical Parameter

◆ Model:IPRV-1C

◆ Nominal Diameter: DN25-DN125

◆ Pressure Adjustment Range: A:0~10.3bar D:5.2~19.3bar

◆ Nominal Pressure: 2.8MPa

◆ Applicable Medium: R12,R22,R502,R134a,R404a,R507,R717 and other refrigerants.

◆ Applicable Temperature: -50 ℃ ~ + 120 ℃

◆ Connection Method: flanges at both ends.

2、Instruction

The IPRV-1C Inlet Pressure Regulating Valve (Solenoid Forced Close) is the same as the IPRV inlet pressure regulating valve,which controls the inlet pressure and has a function of forced shut-off. It is adjusted when power is turned on and closed when power is turned off. When power is on: the main valve opens when the inlet pressure exceeds the set pressure of the pilot valve, and the main valve closes when the pressure is lower than the set value; when the power is off,inlet of the pressure pilot valve closes and the main valve closes. Suitable for opening during temperature control and closing during defrosting.

3、订货 Order Goods

◆  Please tell us the model , set pressure value and pressure adjustment range

you want when ordering.

◆  E.g.:IPRV40-1CD, 9bar

It is means DN40 Inlet Pressure Regulating Valve(Solenoid Forced Close),

Pressure Adjustment Range 5.2~19.3bar

Factory Setting Pressure: 9bar

If the set pressure is not specified, the Pressure Adjustment Range is factory

default 10bar, Pressure Adjustment Range is D.

Pressure Regulating Valve(Solenoid Forced Close) Pressure Regulating Valve(Solenoid Forced Close)

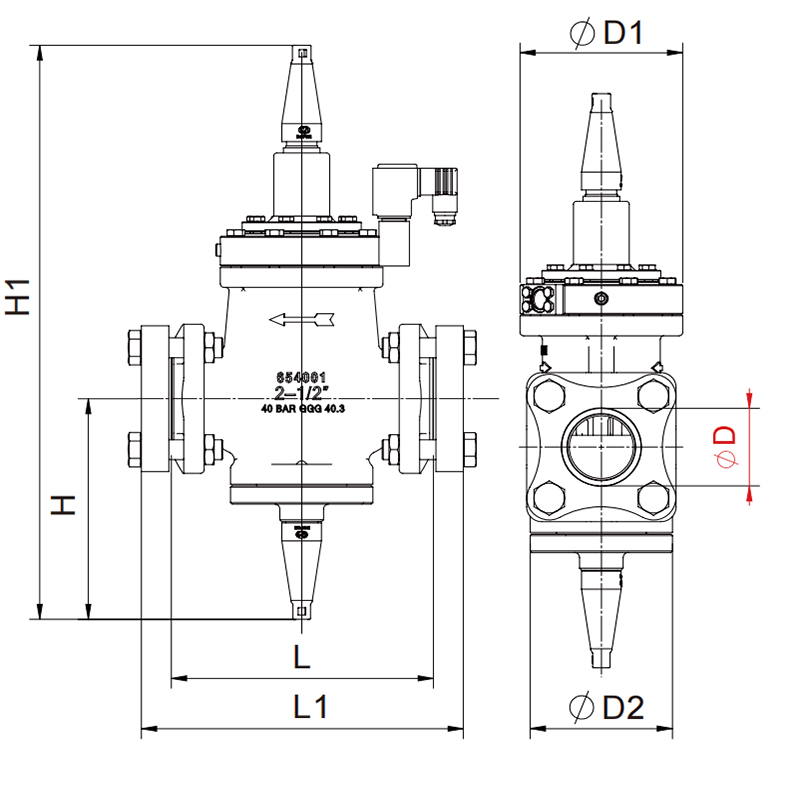

 Inlet Pressure Regulating Valve(Solenoid Forced Close)
Model Nominal Diameter

(DN)

Size
φD φD1 φD2 L L1 H H1








IPRV-1C

25 34 117 108 194 231 205 488
32 40 117 108 194 231 205 488
40 47 144 140 248.5 300.5 222 552
50 59 144 140 248.5 300.5 222 552
65 78 159 140 252 331 222 566
80 91 176 170 311 389 273 600
100 110 222 195 359 450 292 653
125 135 257 235 393.6 475.6 410 735
