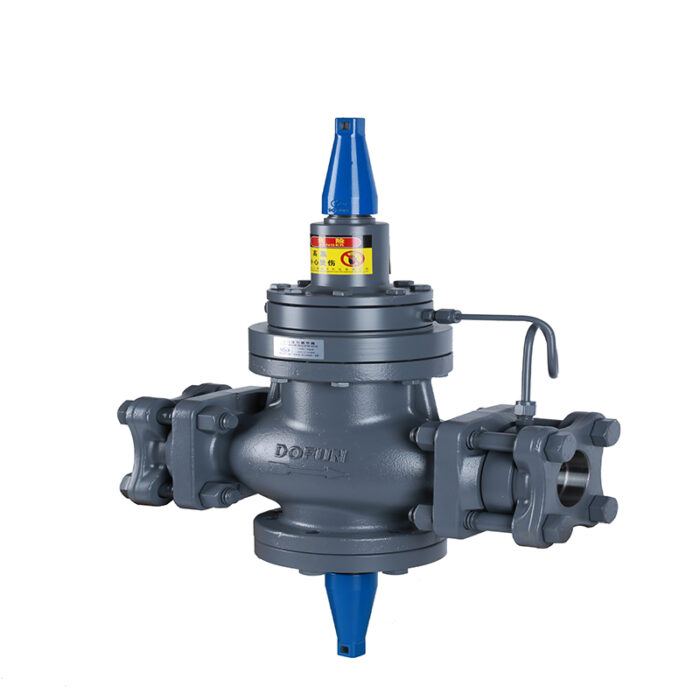

Outlet Pressure Regulating Valve

$516.00$2,547.00

1、Technical Parameter

◆Nominal Diameter: DN25-DN65

◆Pressure Adjustment Range: A:0~10.3bar   D:5.2~19.3bar

◆Nominal Pressure: 2.8MPa

◆Applicable Medium: R12,R22,R502,R134a,R404a,R507,R717 and other refrigerants.

◆Applicable Temperature: -50 ℃ ~ + 120 ℃

◆The product has a manual opening function to ensure the reliable operation of the system.

◆Connection Method: flanges at both end

2、Instruction

The OPRV Outlet Pressure Regulating Valve is suitable for controlling the outlet pressure. It is used to prevent the outlet pressure from being lower than thepredetermined set value. The outlet pressure is adjusted according to the preset pressure value. When the outlet pressure drops, it opens to control the condenser pressure or as the crankcase pressure regulating valve to control the suction pressure.

3、订货 Order Goods

◆ Please tell us the model ,set pressure value and pressure adjustment range you want when ordering.

◆E.g.:OPRV40-A, 4bar ,

It is means DN40 Outlet Pressure Regulating Valve,

Pressure Adjustment Range A: 0~10.3bar

Factory Setting Pressure: 4bar

If the set pressure is not specified, the Pressure Adjustment Range is factory default 4bar, Pressure Adjustment Range is A.

SKU: Outlet Pressure Regulating Valve Category:
Description

Description

1、Technical Parameter

◆Nominal Diameter: DN25-DN65

◆Pressure Adjustment Range: A:0~10.3bar   D:5.2~19.3bar

◆Nominal Pressure: 2.8MPa

◆Applicable Medium: R12,R22,R502,R134a,R404a,R507,R717 and other refrigerants.

◆Applicable Temperature: -50 ℃ ~ + 120 ℃

◆The product has a manual opening function to ensure the reliable operation of the system.

◆Connection Method: flanges at both end

2、Instruction

The OPRV Outlet Pressure Regulating Valve is suitable for controlling the outlet pressure. It is used to prevent the outlet pressure from being lower than thepredetermined set value. The outlet pressure is adjusted according to the preset pressure value. When the outlet pressure drops, it opens to control the condenser pressure or as the crankcase pressure regulating valve to control the suction pressure.

3、订货 Order Goods

◆ Please tell us the model ,set pressure value and pressure adjustment range you want when ordering.

◆E.g.:OPRV40-A, 4bar ,

It is means DN40 Outlet Pressure Regulating Valve,

Pressure Adjustment Range A: 0~10.3bar

Factory Setting Pressure: 4bar

If the set pressure is not specified, the Pressure Adjustment Range is factory default 4bar, Pressure Adjustment Range is A.

Outlet Pressure Regulating Valve Outlet Pressure Regulating Valve

 Outlet Pressure Regulating Valve

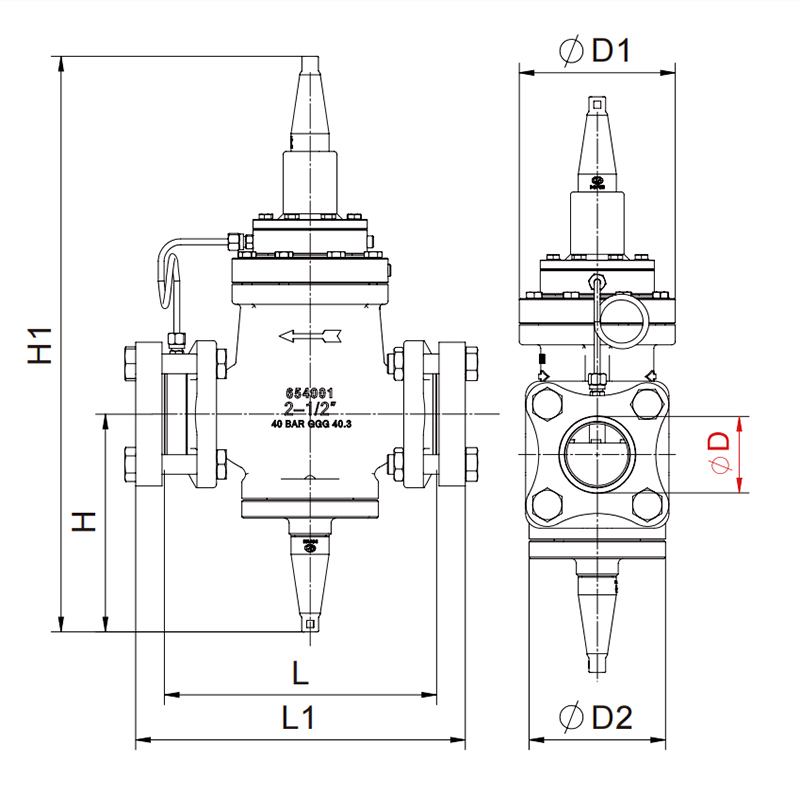

Model Nomial Diameter

(DN)

 Size
φD φD1 φD2 L L1 H H1
25 34 117 108 214 251 205 513
32 40 117 108 214 251 205 513
OPRV 40 47 144 140 273.5 325.5 222 573
50 59 144 140 273.5 325.5 222 573
65 78 159 140 277 356 222 587
