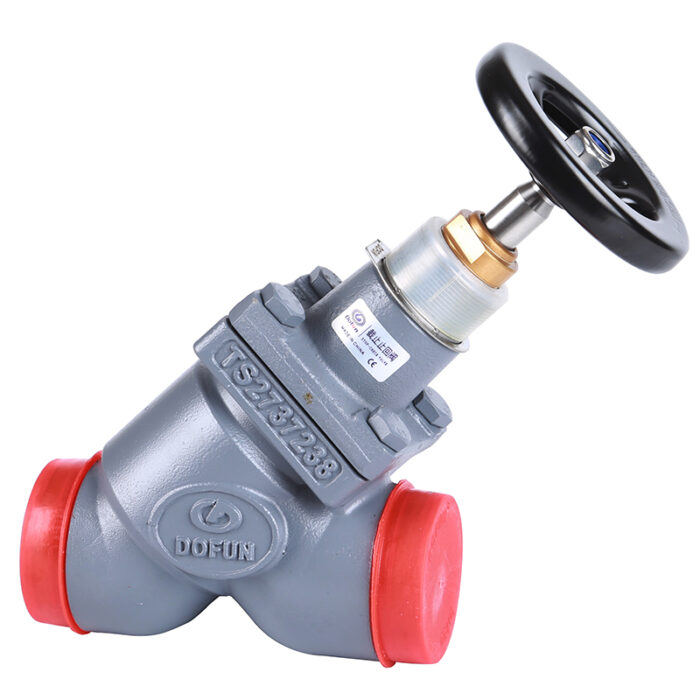

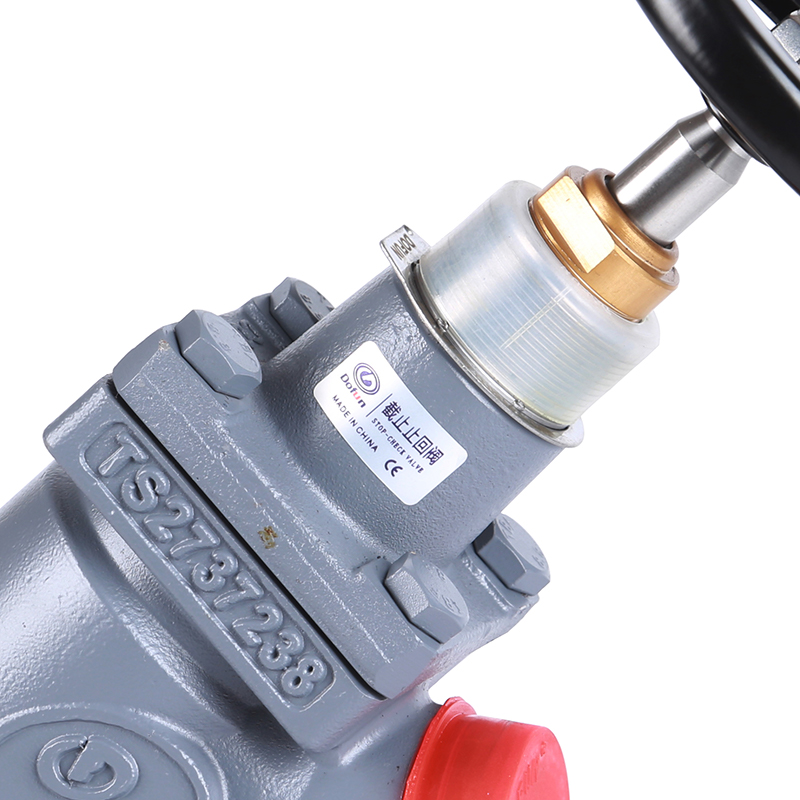

Straight Type Stop Check Valve
Sale!
Price range: $31.50 through $437.00
1、Technical Parameter
◆ Nominal Diameter: DN15-DN150
◆ Nominal Pressure: 4.0MPa
◆ Applicable Medium: R12,R22,R502,R134a,R404a,R507,R717 and other refrigerants.
◆ Applicable Temperature: -50 ℃ ～ + 150 ℃
◆ Structure Form:
Straight Type Structure code is S
Description
Description
1、Technical Parameter
◆ Nominal Diameter: DN15-DN150
◆ Nominal Pressure: 4.0MPa
◆ Applicable Medium: R12,R22,R502,R134a,R404a,R507,R717 and other refrigerants.
◆ Applicable Temperature: -50 ℃ ～ + 150 ℃
◆ Structure Form:
Straight Type Structure code is S

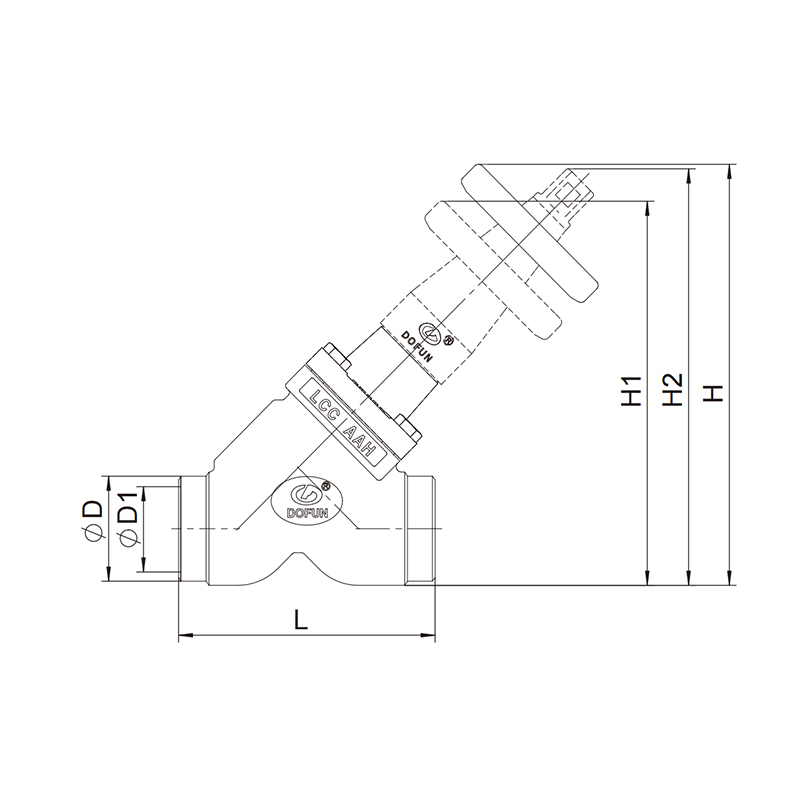

| Straight Type Stop Check Valve | ||||||||
| Model | Nominal Diameter (DN) | Size（mm） | ||||||
| ΦD-GB | ΦD-DIN | ΦD1 | L | H | H1 | H2 | ||
|
SCV-S |
15 | 22 | 21.3 | 15 | 120 | 175 | 166 | 174 |
| 20 | 27 | 27 | 20 | 120 | 175 | 166 | 174 | |
| 25 | 32 | 33.7 | 25 | 120 | 175 | 166 | 174 | |
| 32 | 38 | 42.4 | 32 | 156 | 219 | 206 | 236 | |
| 40 | 45 | 48.3 | 38 | 156 | 219 | 206 | 236 | |
| 50 | 57 | 60.3 | 49 | 149 | 242 | 228 | 239 | |
| 65 | 76 | 76 | 62 | 176 | 277 | 259 | 268 | |
| 80 | 89 | 89 | 76 | 216 | 323 | 303 | 312 | |
| 100 | 108 | 114 | 96 | 264 | 380 | 354 | 353 | |
| 125 | 133 | 139.7 | 120 | 330 | 520 | 478 | 464 | |
| 150 | 159 | 168 | 150 | 370 | 570 | 525 | 513 | |
