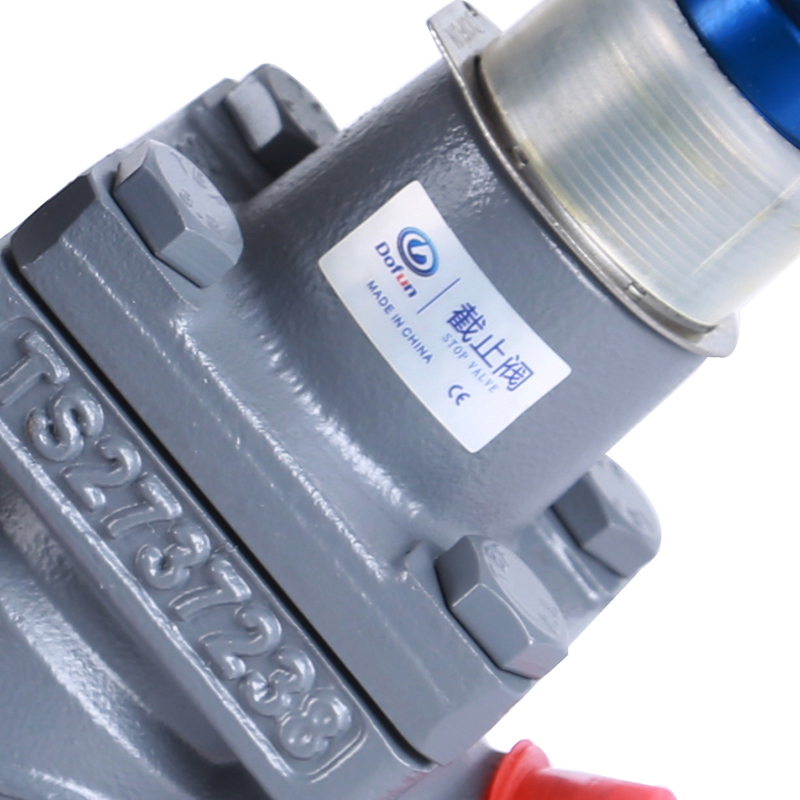

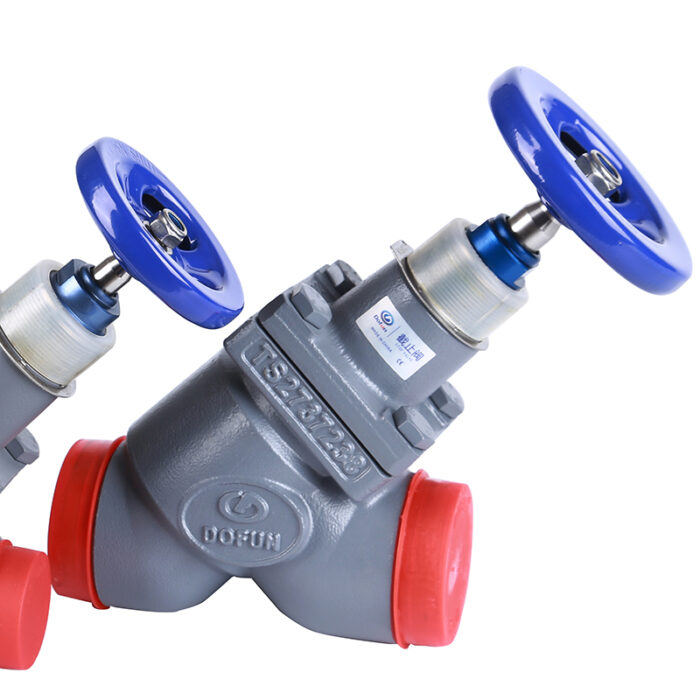

Straight Type Stop Valve
$12.00 – $2,250.00
Valves which are devices used to control the flow of fluids, have found their way into industrial applications worldwide. There are many things to consider, when it comes to purchasing manual valves. In order to pick the appropriate one for your system, knowing its different types and applications is a must.
1、Technical Parameter
◆ Nominal Diameter: DN15-DN350
◆ Nominal Pressure: 4.0MPa
◆ Applicable Medium: R12, R22, R502, R134a, R404a, R507, R717 and other refrigerants.
◆ Applicable Temperature: -50 ℃ ～ + 150 ℃
◆ Structure Form:
Angle Type Structure code is A
Description
Valves which are devices used to control the flow of fluids, have found their way into industrial applications worldwide. There are many things to consider, when it comes to purchasing manual valves. In order to pick the appropriate one for your system, knowing its different types and applications is a must.
1、Technical Parameter
◆ Nominal Diameter: DN15-DN350
◆ Nominal Pressure: 4.0MPa
◆ Applicable Medium: R12, R22, R502, R134a, R404a, R507, R717 and other refrigerants.
◆ Applicable Temperature: -50 ℃ ～ + 150 ℃
◆ Structure Form:
Angle Type Structure code is A
Straight Type Stop Valve
|
Angle Type Stop Valve |
||||||||

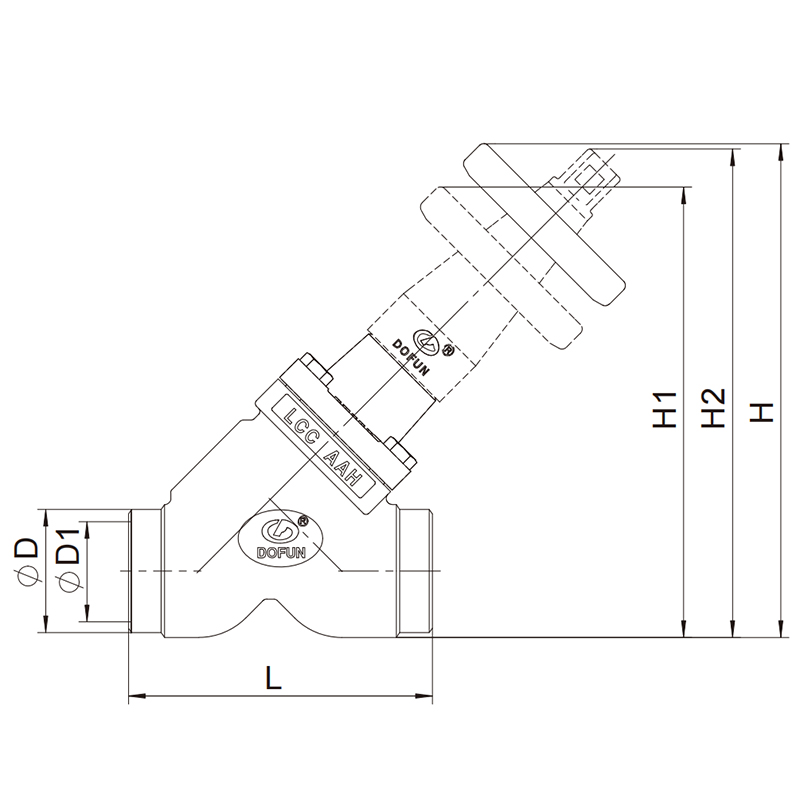

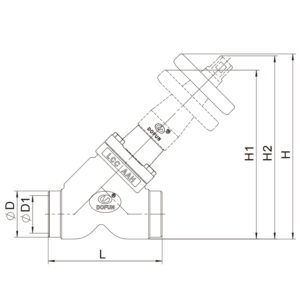

| Model | Nominal Diameter (DN) | Size（mm） | ||||||
| ΦD-GB | ΦD-DIN | ΦD1 | L | H | H1 | H2 | ||
|
SVD-A |
15 | 22 | 21.3 | 15 | 45 | 203 | 189 | 230 |
| 20 | 27 | 27 | 20 | 45 | 203 | 189 | 230 | |
| 25 | 32 | 33.7 | 25 | 45 | 203 | 189 | 230 | |
| 32 | 38 | 42.4 | 32 | 56 | 265 | 247 | 309 | |
| 40 | 45 | 48.3 | 38 | 56 | 265 | 247 | 309 | |
| 50 | 57 | 60.3 | 49 | 60 | 257 | 237 | 292 | |
| 65 | 76 | 76 | 62 | 90 | 287 | 263 | 324 | |
| 80 | 89 | 89 | 76 | 106 | 328 | 300 | 378 | |
| 100 | 108 | 114 | 96 | 121 | 368 | 331 | 414 | |
| 125 | 133 | 139.7 | 120 | 133 | 502 | 442 | 554 | |
| 150 | 159 | 168 | 150 | 146 | 546 | 467 | 591 | |
| 200 | 219 | 219 | 200 | 184 | 502 | 537 | 757 | |
| 250 | 273 | 273 | 250 | 210 | 546 | 603 | 757 | |
| 300 | 325 | 324 | 300 | 240 | 502 | 680 | 865 | |
| 350 | 377 | 355.6 | 350 | 285 | 502 | 781 |
995 |
|
