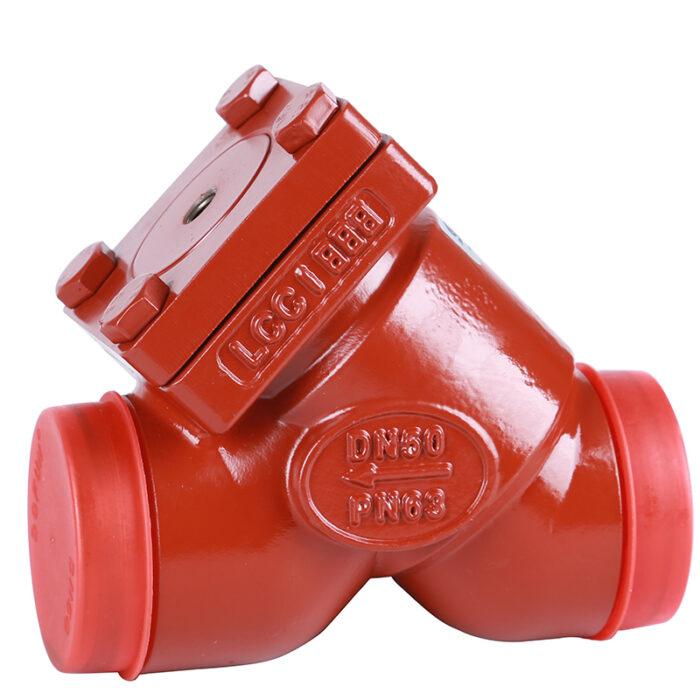

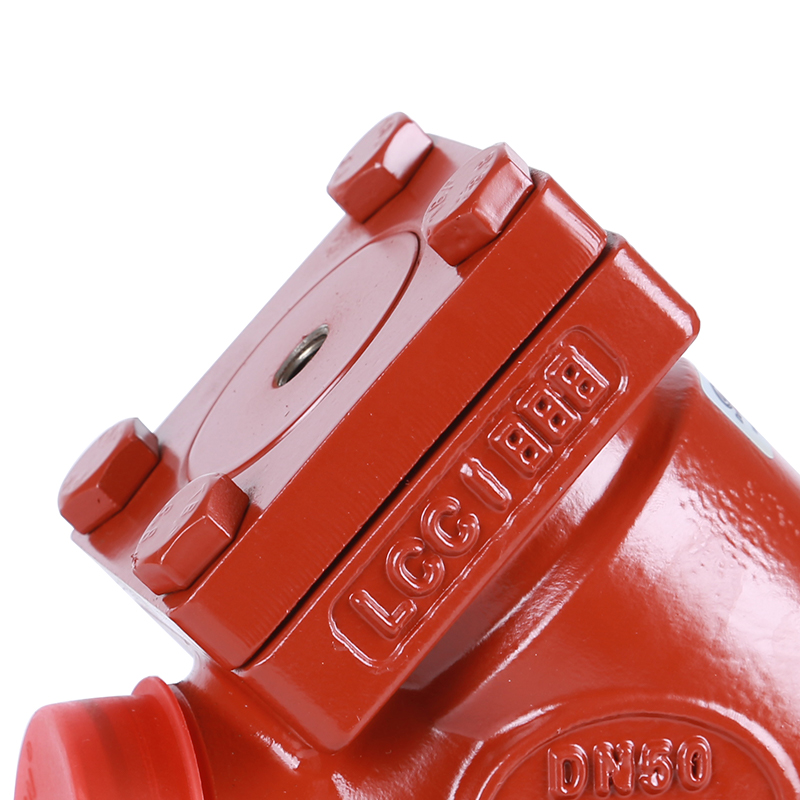

Straight Type PN63 Check Valve
$31.00 – $779.00
The price is EXW price and does not include shipping costs.
1、Technical Parameter
◆ Nominal Diameter: DN15-DN150
◆ Nominal Pressure: 6.3MPa
◆ Applicable Medium: R12, R22, R502, R134a, R404a, R507, R717,CO2 and other refrigerants.
◆ Applicable Temperature: -50 ℃ ~ + 150 ℃
SKU: Straight Type PN63 Check Valve
Category: Manual Operation Valve PN63
- Description
- Reviews (0)
Description
Description
1、Technical Parameter
◆ Nominal Diameter: DN15-DN150
◆ Nominal Pressure: 6.3MPa
◆ Applicable Medium: R12, R22, R502, R134a, R404a, R507, R717,CO2 and other refrigerants.
◆ Applicable Temperature: -50 ℃ ~ + 150 ℃

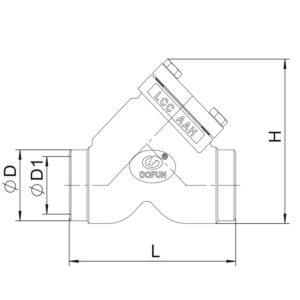

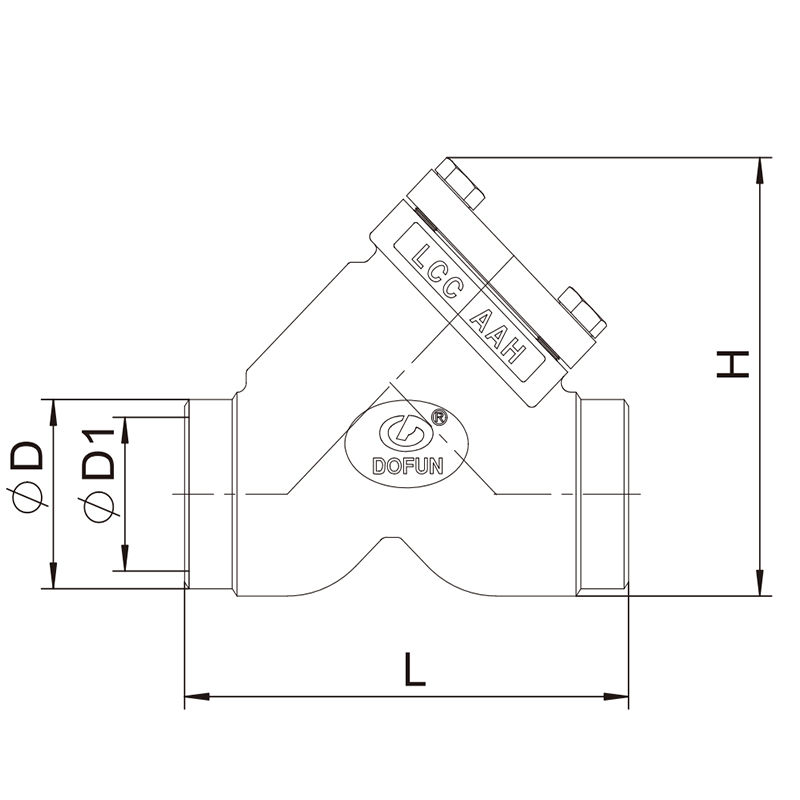

Straight Type PN63 Check Valve | ||||||
Model | Nominal Diameter (DN) | Size(mm) | ||||
ΦD-GB | ΦD-DIN | ΦD1 | L | H | ||
CVD-HS |
15 | 22 | 21.3 | 15 | 120 | 103 |
20 | 27 | 27 | 20 | 120 | 103 | |
25 | 32 | 33.7 | 25 | 120 | 103 | |
32 | 38 | 42.4 | 32 | 156 | 131 | |
40 | 45 | 48.3 | 38 | 156 | 131 | |
50 | 57 | 60.3 | 49 | 149 | 140 | |
65 | 76 | 76 | 62 | 176 | 164 | |
80 | 89 | 89 | 76 | 216 | 215 | |
100 | 108 | 114 | 96 | 264 | 261 | |
125 | 133 | 139.7 | 120 | 330 | 316 | |
150 | 159 | 168 | 150 | 370 | 348 |
