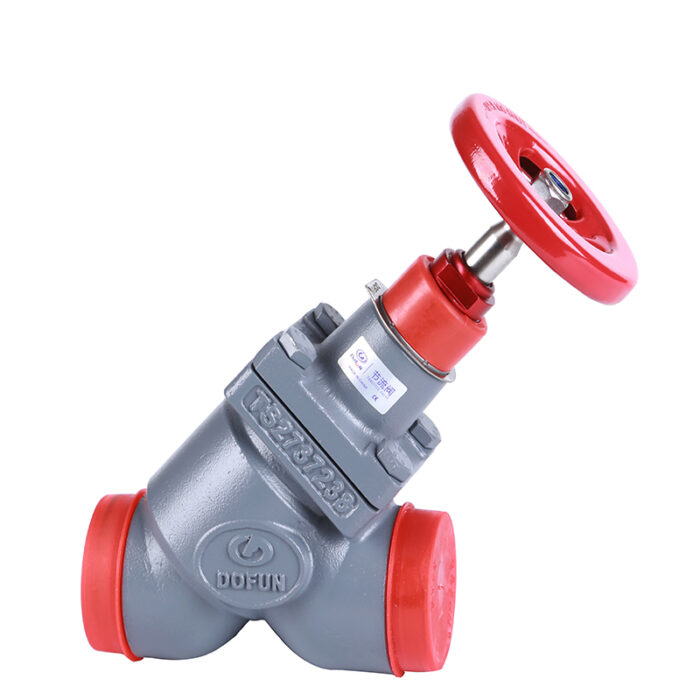

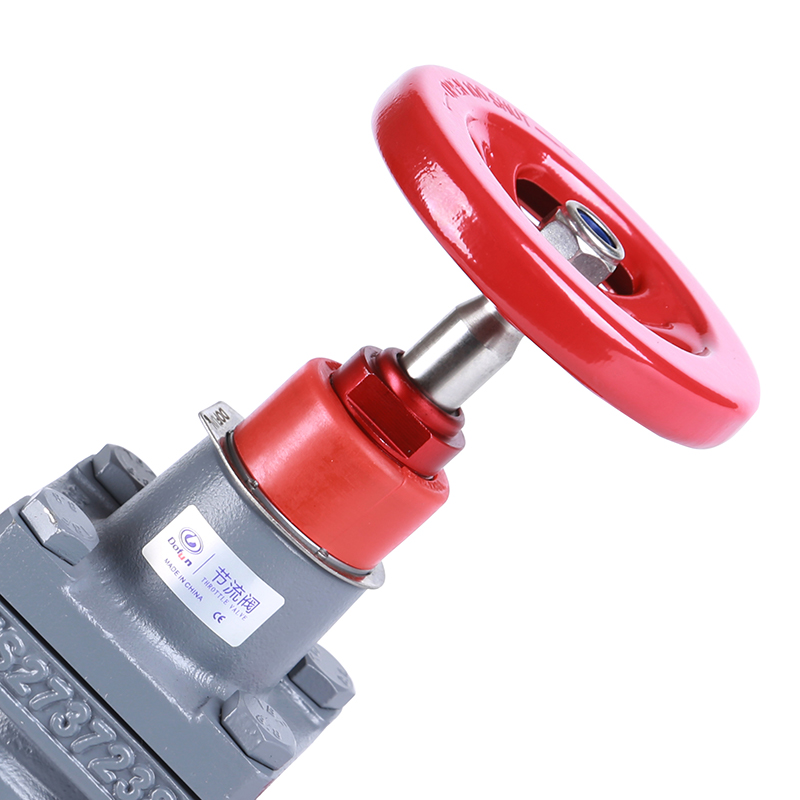

Straight Type PN63 Regulating TVD-HS Valve

Name: Straight Type PN63 Regulating TVD-HS Valve
SKU: Straight Type PN63 Regulating Valve
Availability: InStock

$33.00 – $329.00

1、Technical Parameter

◆ Nominal Diameter: DN15-DN125

◆ Nominal Pressure: 6.3MPa

◆ Applicable Medium: R12, R22, R502, R134a, R404a, R507, R717 CO2 and other refrigerants.

◆ Applicable Temperature: -50 ℃ ～ + 150 ℃

◆ Structure Form:

Straight Type Structure’s Code is S

Nominal Diameter

Clear

SKU: Straight Type PN63 Regulating Valve Category: Manual Operation Valve PN63 Tag: TVD-HS Valve

Description

1、Technical Parameter

◆ Nominal Diameter: DN15-DN125

◆ Nominal Pressure: 6.3MPa

◆ Applicable Medium: R12, R22, R502, R134a, R404a, R507, R717 CO2 and other refrigerants.

◆ Applicable Temperature: -50 ℃ ～ + 150 ℃

◆ Structure Form:

Straight Type Structure’s Code is S

Straight Type PN63 Regulating Valve

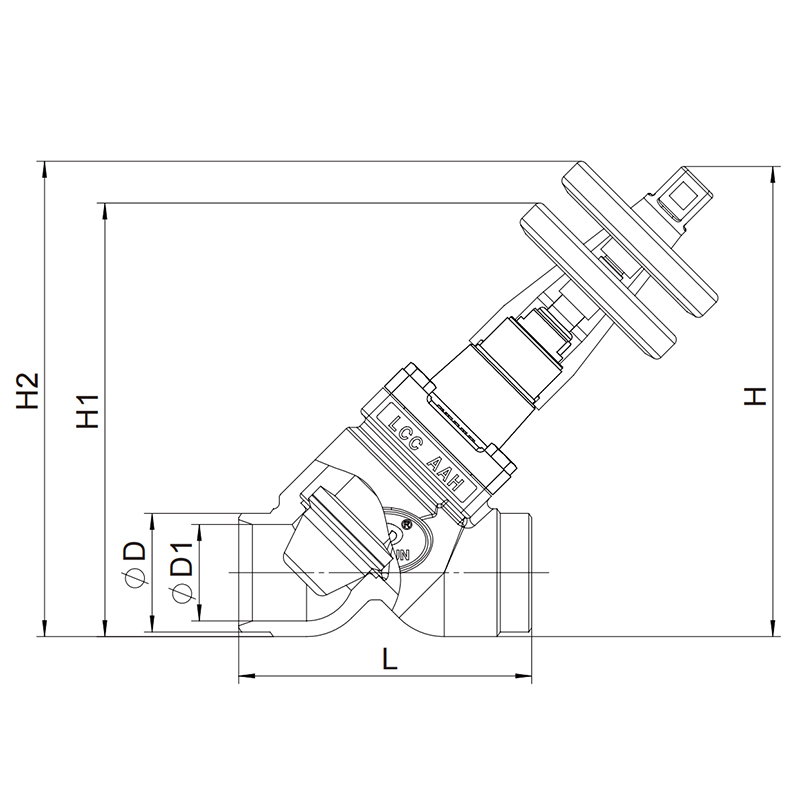

Model	Nominal Diameter (DN)	Size（mm）
Model	Nominal Diameter (DN)	ΦD-GB	ΦD-DIN	ΦD1	L	H	H1	H2
TVD-HS	15	22	21.3	15	120	175	166	174
	20	27	27	20	120	175	166	174
	25	32	33.7	25	120	175	166	174
	32	38	42.4	32	156	219	206	236
	40	45	48.3	38	156	219	206	236
	50	57	60.3	49	149	242	228	239
	65	76	76	62	176	277	259	268
	80	89	89	76	216	323	303	312
	100	108	114	96	264	380	354	353
	125	133	139.7	120	330	520	478	464
