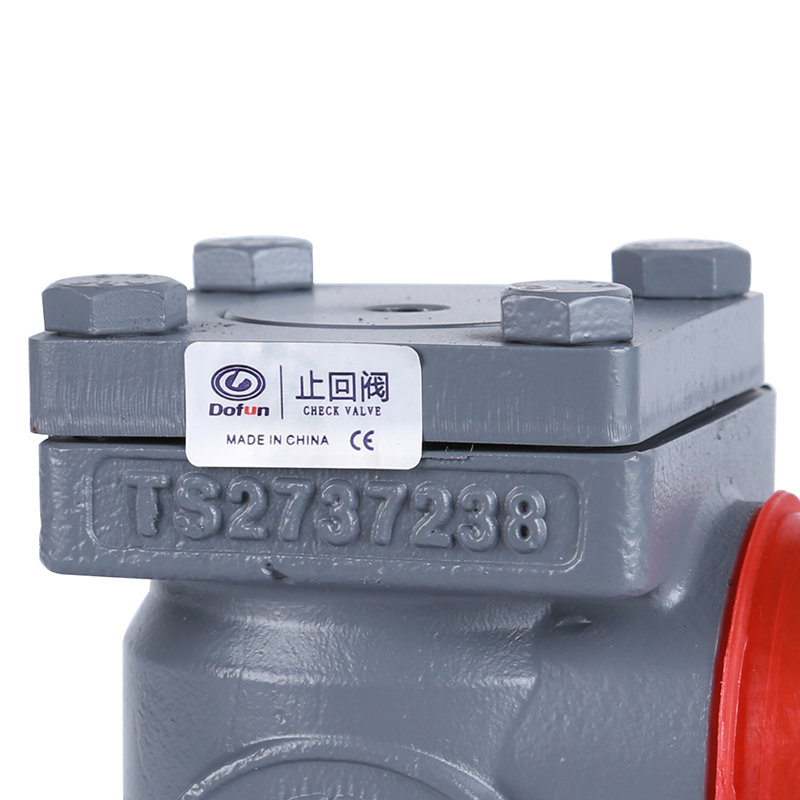

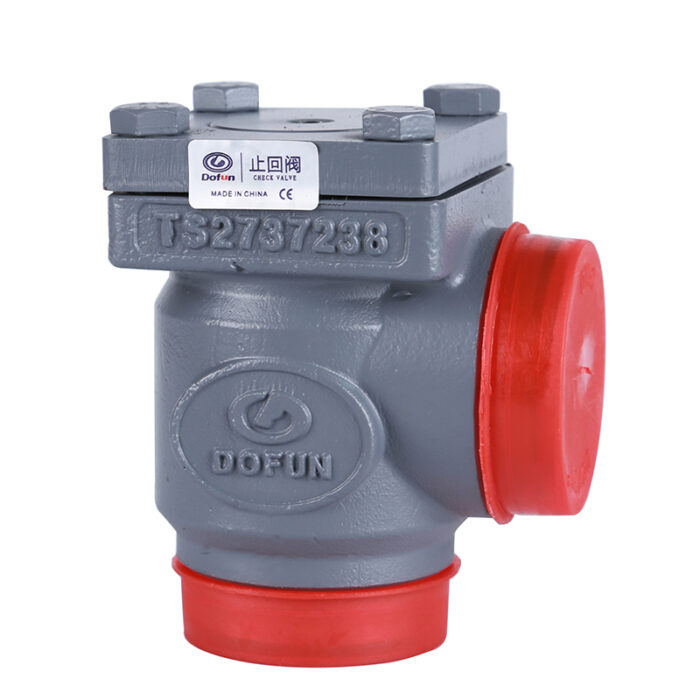

Angle Type Check CVD-A Valve Danfoss

Sale!

$25.00$400.00

The price is EXW price and does not include shipping costs.

1、Technical Parameter

◆   Nominal Diameter: DN15-DN150

◆   Nominal Pressure: 4.0MPa

◆   Applicable Medium: R12, R22, R502, R134a, R404a, R507, R717 and other refrigerants.

◆   Applicable Temperature: -50 ℃ ~ + 150 ℃

◆   Structure Form:

Angle Type Structure code is A

SKU: Angle Type Check Valve Category: Tag:
Description

Description

1、Technical Parameter

◆   Nominal Diameter: DN15-DN150

◆   Nominal Pressure: 4.0MPa

◆   Applicable Medium: R12, R22, R502, R134a, R404a, R507, R717 and other refrigerants.

◆   Applicable Temperature: -50 ℃ ~ + 150 ℃

◆   Structure Form:

Angle Type Structure code is A

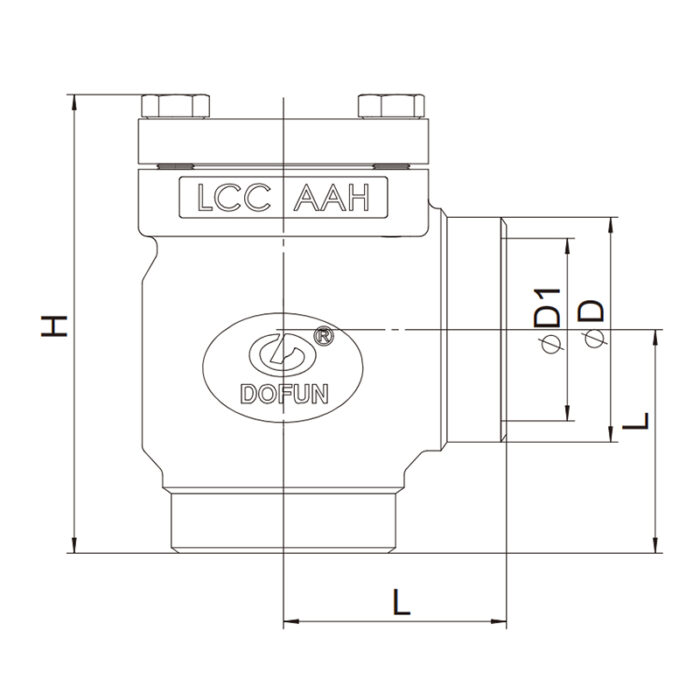

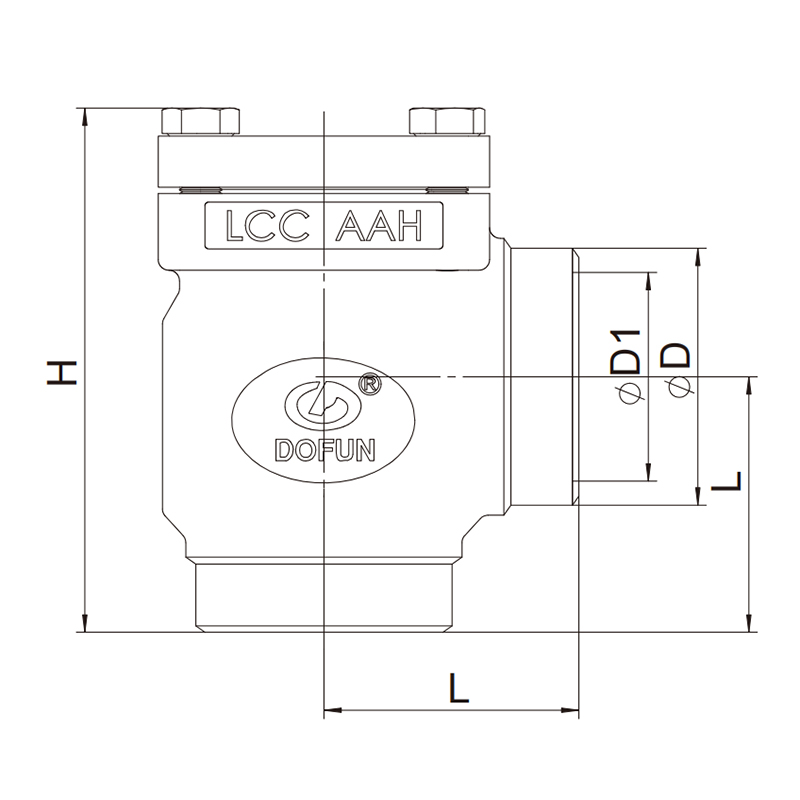

 Angle Type Check Valve
Model Nominal Diameter (DN) Size(mm)
ΦD-GB ΦD-DIN ΦD1 L H














CVD-A

15 22 21.3 15 45 108
20 27 27 20 45 108
25 32 33.7 25 45 108
32 38 42.4 32 56 136
40 45 48.3 38 56 136
50 57 60.3 49 60 124
65 76 76 62 90 147
80 89 89 76 106 185.5
100 108 114 96 121 248
125 133 139.7 120 133 270
150 159 168 150 146 300
