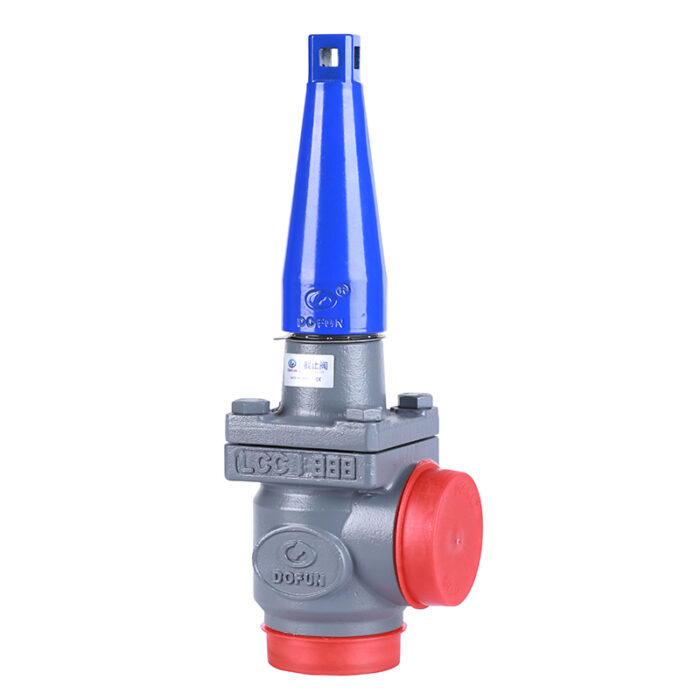

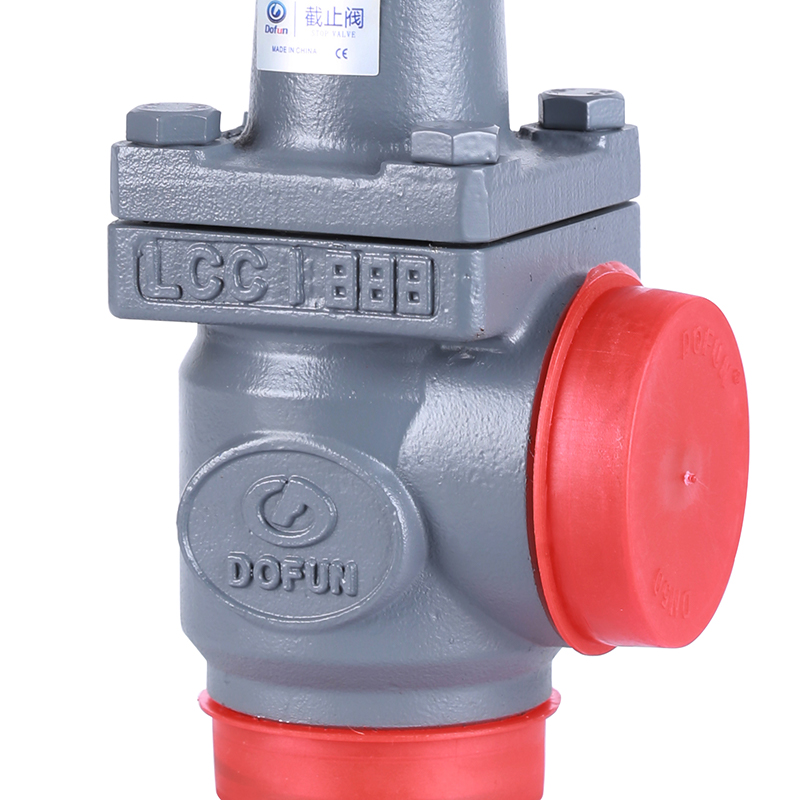

Angle Type Stop Valve
$13.00 – $2,000.00
In this type of valve, flow rate control is determined not by the size of the opening in the valve seat, but rather by the lift of the valve plug. Professional Freezer Room,Cold RoomsOne feature of these valves is that even if used in the partially open position, there is less risk of damage to the valve seat or valve plug by the fluid than with other types of manual valves.
◆ Nominal Diameter: DN15-DN350
◆ Nominal Pressure: 4.0MPa
◆ Applicable Medium: R12, R22, R502, R134a, R404a, R507, R717 and other refrigerants.
◆ Applicable Temperature: -50 ℃ ～ + 150 ℃
Description
In this type of valve, flow rate control is determined not by the size of the opening in the valve seat, but rather by the lift of the valve plug. Professional Freezer Room,Cold RoomsOne feature of these valves is that even if used in the partially open position, there is less risk of damage to the valve seat or valve plug by the fluid than with other types of manual valves.
◆ Nominal Diameter: DN15-DN350
◆ Nominal Pressure: 4.0MPa
◆ Applicable Medium: R12, R22, R502, R134a, R404a, R507, R717 and other refrigerants.
◆ Applicable Temperature: -50 ℃ ～ + 150 ℃
| Straight Type Stop Valve | ||||||||
| Model |
Nominal Diameter (DN) |
Size（mm） | ||||||
| ΦD-GB | ΦD-DIN | ΦD1 | L | H | H1 | H2 | ||
|
SVD-S |
15 | 22 | 21.3 | 15 | 120 | 175 | 166 | 174 |
| 20 | 27 | 27 | 20 | 120 | 175 | 166 | 174 | |
| 25 | 32 | 33.7 | 25 | 120 | 175 | 166 | 174 | |
| 32 | 38 | 42.4 | 32 | 156 | 219 | 206 | 236 | |
| 40 | 45 | 48.3 | 38 | 156 | 219 | 206 | 236 | |
| 50 | 57 | 60.3 | 49 | 149 | 242 | 228 | 239 | |
| 65 | 76 | 76 | 62 | 176 | 277 | 259 | 268 | |
| 80 | 89 | 89 | 76 | 216 | 323 | 303 | 312 | |
| 100 | 108 | 114 | 96 | 264 | 380 | 354 | 353 | |
| 125 | 133 | 139.7 | 120 | 330 | 520 | 478 | 464 | |
| 150 | 159 | 168 | 150 | 370 | 577 | 521 | 513 | |
| 200 | 219 | 219 | 200 | 460 | 705 | 636 | 623 | |
| 250 | 273 | 273 | 250 | 560 | 690 | 603 | 757 | |
| 300 | 325 | 324 | 300 | 655 | 925 | 830 | 810 | |
