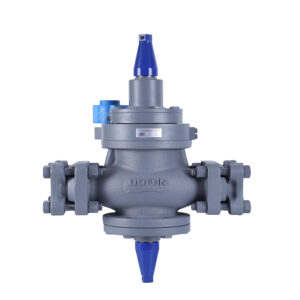

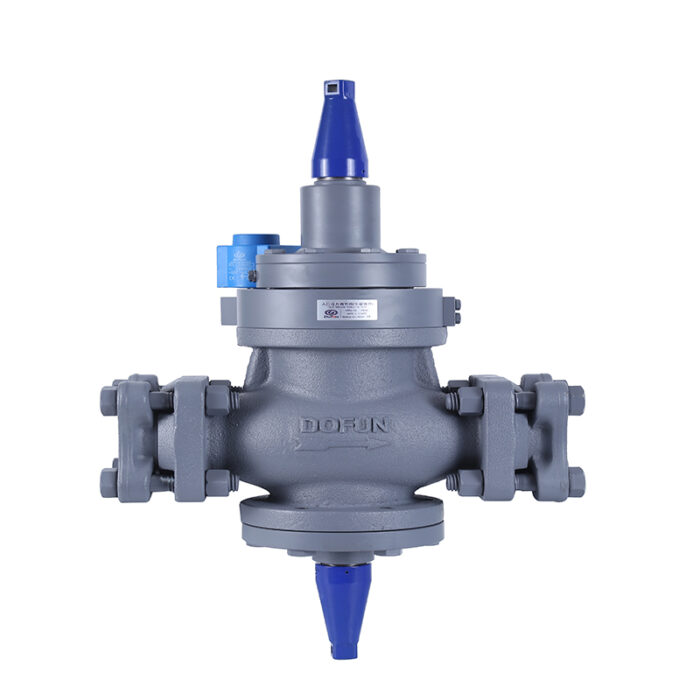

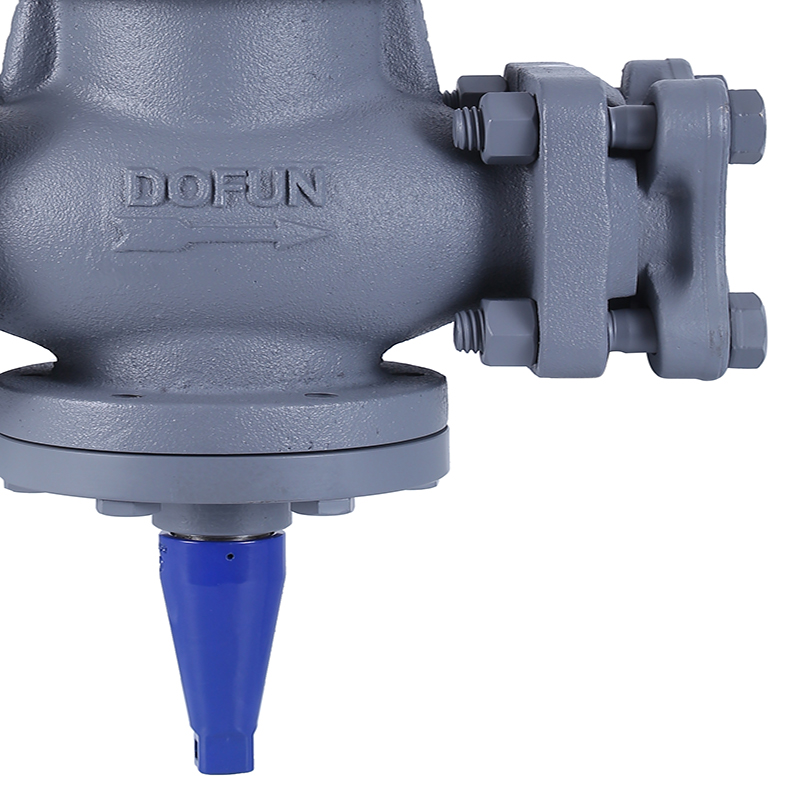

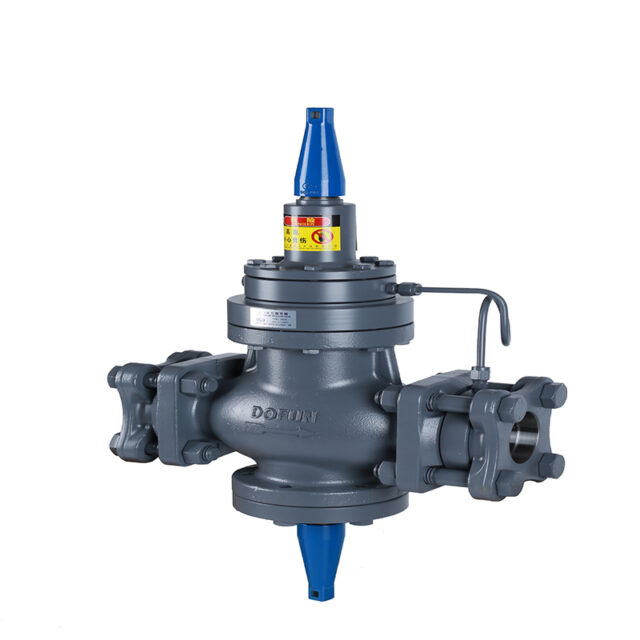

Inlet Pressure Regulating Valve(Solenoid Forced Open)

$594.00$2,625.00

1、Technical Parameter

Model:IPRV-1N

◆ Nominal Diameter: DN25-DN125

◆ Pressure Adjustment Range: A:0~10.3bar   D:5.2~19.3bar

◆ Nominal Pressure: 2.8MPa

◆ Applicable Medium: R12,R22,R502,R134a,R404a,R507,R717 and other refrigerants.

◆ Applicable Temperature: -50 ℃ ~ + 120 ℃

◆ The product has a manual opening function to ensure the reliable operation of the system.

◆ Connection Method: flanges at both ends.

2、Instruction

The IPRV-1N Inlet Pressure Regulating Valve(Solenoid Forced Open)IPRV1N is the same as the IPRV Inlet Pressure Regulating Valve, which controls the inlet pressure. It is with forced opening function, it can adjust when the power is off, and fully opened when power is on.Power is off, the main valve opens when the inlet pressure exceeds the set pressure of the pilot valve. The main valve closes when the pressure is lower than the set value; When power is on, the medium directly enters the upper part of the piston through the Solenoid Valve, and the main valve is fully opened. It is suitable for full opening during maximum cooling and adjustment during defrosting and temperature control.

3、Order Goods

◆ Please tell us the model ,set pressure value and pressure adjustment range you

want when ordering。

◆ E.g.:IPRV40-1ND, 9bar

It is means DN40 Inlet Pressure Regulating Valve(Solenoid Forced Open)

Pressure Adjustment Range 5.2~19.3bar

Factory Setting Pressure: 9bar

If the set pressure is not specified, the Pressure Adjustment Range is factory default 10bar, Pressure Adjustment Range is D.

SKU: Inlet Pressure Regulating Valve(Solenoid Forced Open) Category:
Description

Description

1、Technical Parameter

Model:IPRV-1N

◆ Nominal Diameter: DN25-DN125

◆ Pressure Adjustment Range: A:0~10.3bar   D:5.2~19.3bar

◆ Nominal Pressure: 2.8MPa

◆ Applicable Medium: R12,R22,R502,R134a,R404a,R507,R717 and other refrigerants.

◆ Applicable Temperature: -50 ℃ ~ + 120 ℃

◆ The product has a manual opening function to ensure the reliable operation of the system.

◆ Connection Method: flanges at both ends.

2、Instruction

The IPRV-1N Inlet Pressure Regulating Valve(Solenoid Forced Open)IPRV1N is the same as the IPRV Inlet Pressure Regulating Valve, which controls the inlet pressure. It is with forced opening function, it can adjust when the power is off, and fully opened when power is on.Power is off, the main valve opens when the inlet pressure exceeds the set pressure of the pilot valve. The main valve closes when the pressure is lower than the set value; When power is on, the medium directly enters the upper part of the piston through the Solenoid Valve, and the main valve is fully opened. It is suitable for full opening during maximum cooling and adjustment during defrosting and temperature control.

3、Order Goods

◆ Please tell us the model ,set pressure value and pressure adjustment range you

want when ordering。

◆ E.g.:IPRV40-1ND, 9bar

It is means DN40 Inlet Pressure Regulating Valve(Solenoid Forced Open)

Pressure Adjustment Range 5.2~19.3bar

Factory Setting Pressure: 9bar

If the set pressure is not specified, the Pressure Adjustment Range is factory default 10bar, Pressure Adjustment Range is D.

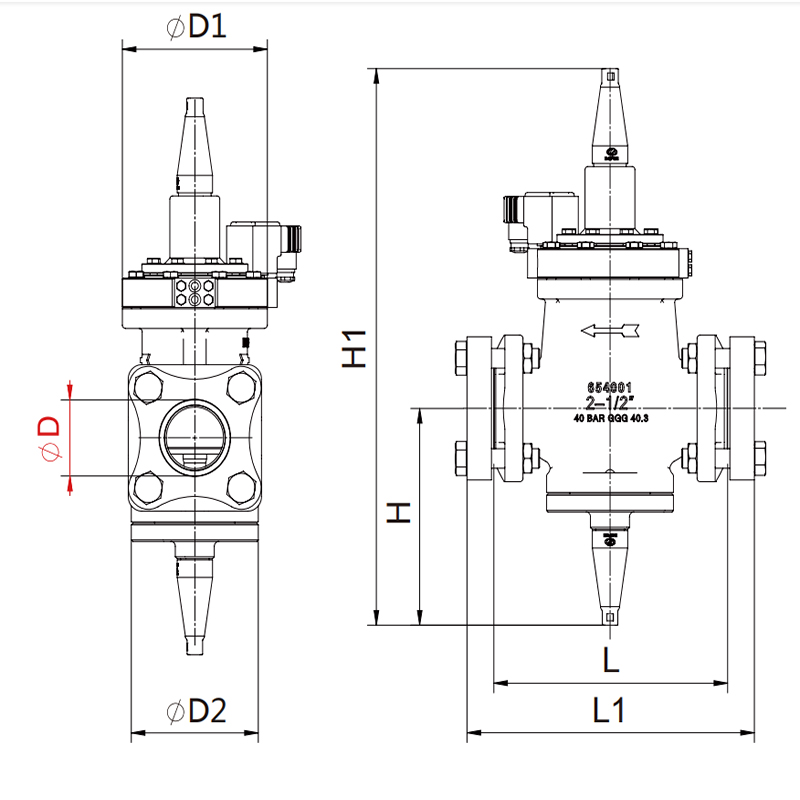

Inlet Pressure Regulating Valve(Solenoid Forced Open) Inlet Pressure Regulating Valve(Solenoid Forced Open)

Inlet Pressure Regulating Valve(Solenoid Forced Open)


Model

Nomial Diameter

(DN)

Size
φD φD1 φD2 L L1 H H1








IPRV-1N

25 34 117 108 194 231 205 488
32 40 117 108 194 231 205 488
40 47 144 140 248.5 300.5 222 552
50 59 144 140 248.5 300.5 222 552
65 78 159 140 252 331 222 566
80 91 176 170 311 389 273 600
100 110 222 195 359 450 292 653
125 135 257 235 393.6 475.6 410 735
