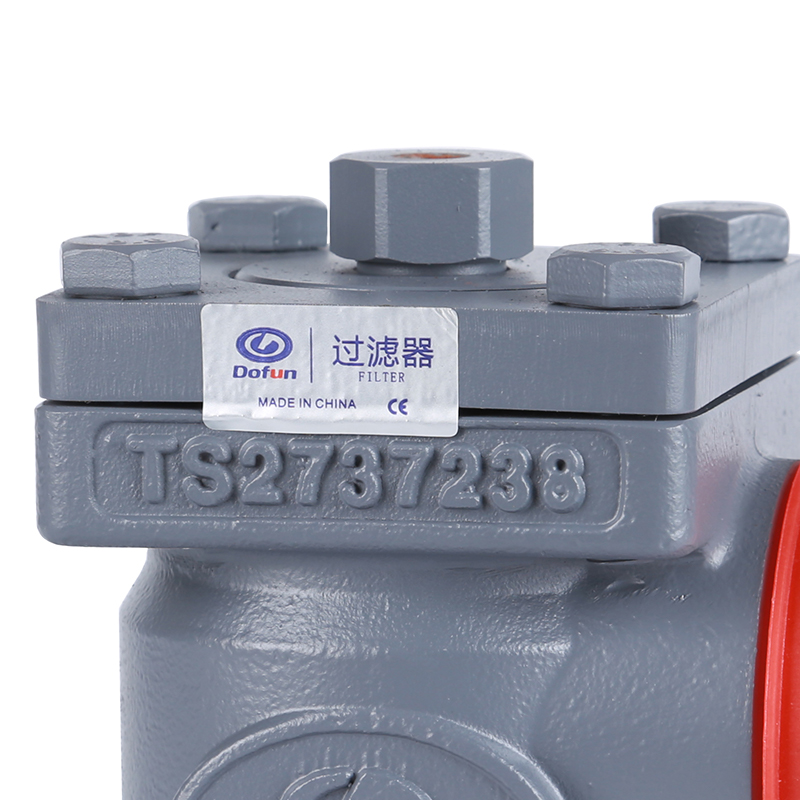

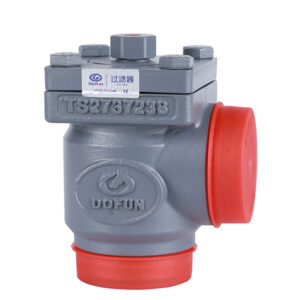

Angle Type Filter FVD-A Valve
$25.00 – $383.00
The price is EXW price and does not include shipping costs.
1、Technical Parameter
◆ Nominal Diameter: DN15-DN150
◆ Nominal Pressure: 4.0MPa
◆ Applicable Medium: R12, R22, R502, R134a, R404a, R507, R717 and other refrigerants.
◆ Applicable Temperature: -50 ℃ ～ + 150 ℃
◆ The specifications of the filter screen are 150 mesh, 100 mesh, 72 mesh, 38 mesh, which can be selected according to the requirements of different pipeline
Description
1、Technical Parameter
◆ Nominal Diameter: DN15-DN150
◆ Nominal Pressure: 4.0MPa
◆ Applicable Medium: R12, R22, R502, R134a, R404a, R507, R717 and other refrigerants.
◆ Applicable Temperature: -50 ℃ ～ + 150 ℃
◆ The specifications of the filter screen are 150 mesh, 100 mesh, 72 mesh, 38 mesh, which can be selected according to the requirements of different pipeline

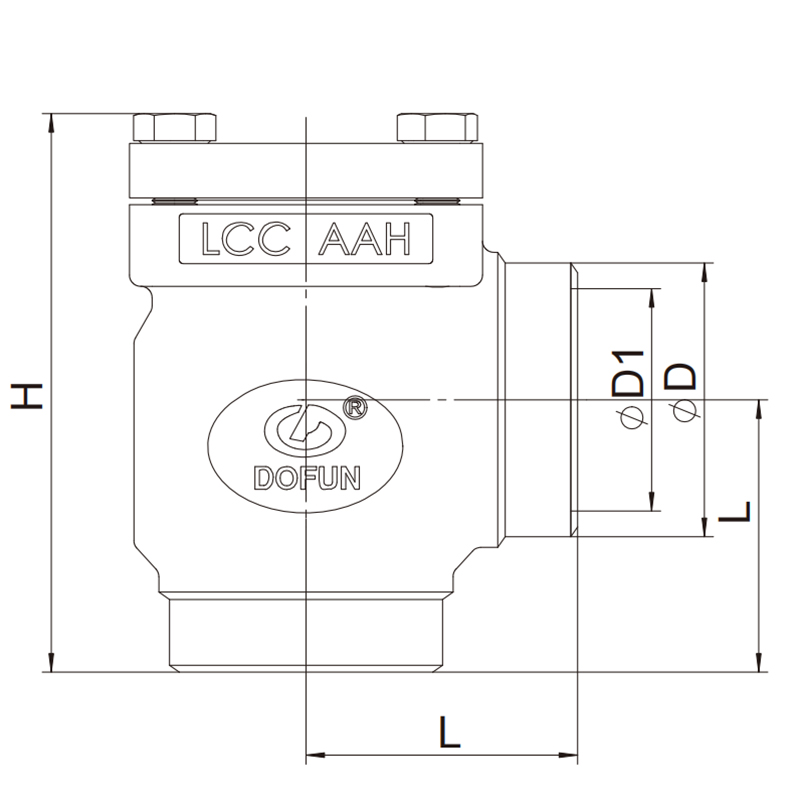

| Angle Type Filter | ||||||
| Model | Nominal Diameter (DN) | Size（mm） | ||||
| ΦD-GB | ΦD-DIN | ΦD1 | L | H | ||
|
FVD-A |
15 | 22 | 21.3 | 15 | 45 | 115.5 |
| 20 | 27 | 27 | 20 | 45 | 115.5 | |
| 25 | 32 | 33.7 | 25 | 45 | 115.5 | |
| 32 | 38 | 42.4 | 32 | 56 | 141.5 | |
| 40 | 45 | 48.3 | 38 | 56 | 141.5 | |
| 50 | 57 | 60.3 | 49 | 60 | 130 | |
| 65 | 76 | 76 | 62 | 90 | 148 | |
| 80 | 89 | 89 | 76 | 106 | 224 | |
| 100 | 108 | 114 | 96 | 121 | 253 | |
| 125 | 133 | 139.7 | 120 | 133 | 273.5 | |
| 150 | 159 | 168 | 150 | 146 | 311 | |
