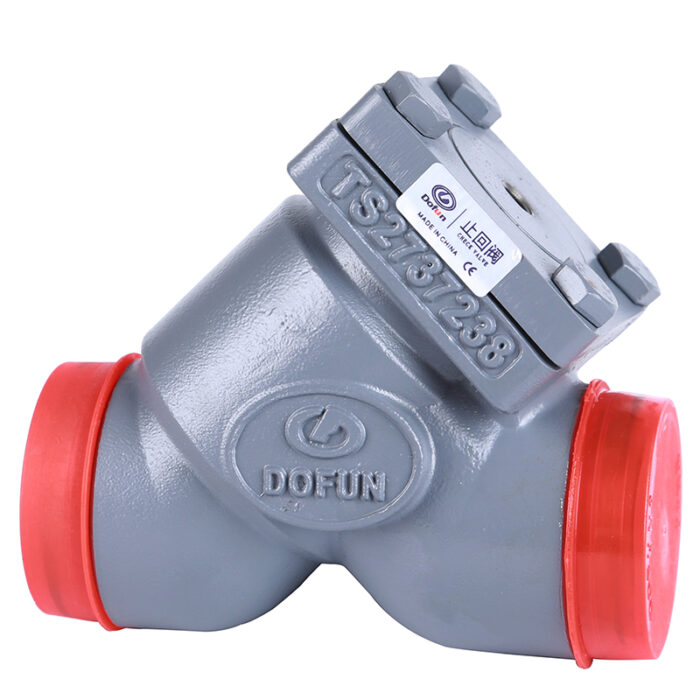

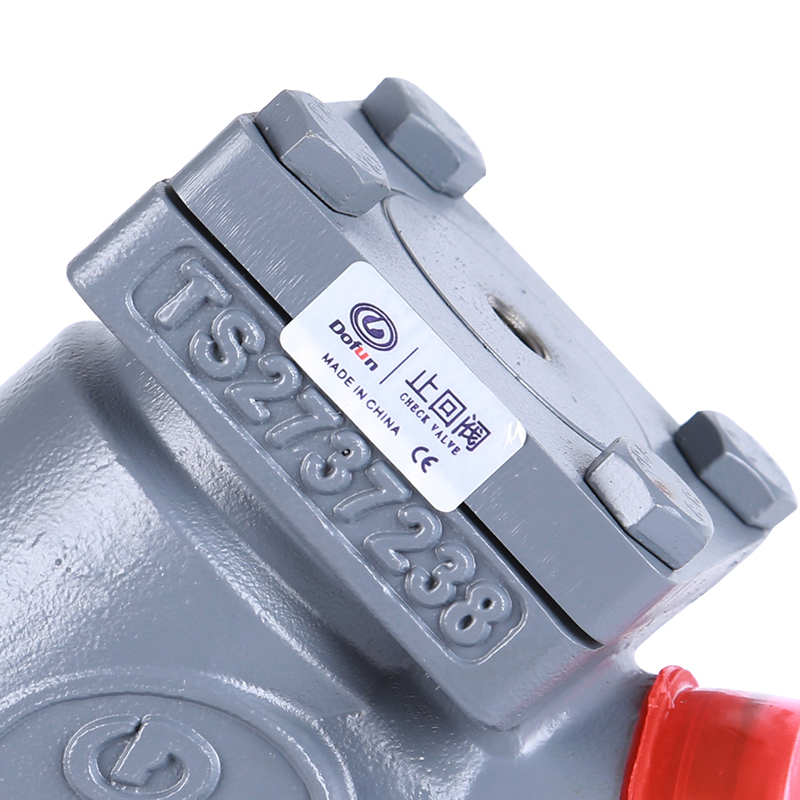

Straight Type Check Valve

Sale!

$25.00$413.00

1、Technical Parameter

◆   Nominal Diameter: DN15-DN150

◆   Nominal Pressure: 4.0MPa

◆   Applicable Medium: R12, R22, R502, R134a, R404a, R507, R717 and other refrigerants.

◆   Applicable Temperature: -50 ℃ ~ + 150 ℃

◆   Structure Form:

Straight Type Structure code is S

SKU: Straight Type Check Valve Category:
Description

Description

1、Technical Parameter

◆   Nominal Diameter: DN15-DN150

◆   Nominal Pressure: 4.0MPa

◆   Applicable Medium: R12, R22, R502, R134a, R404a, R507, R717 and other refrigerants.

◆   Applicable Temperature: -50 ℃ ~ + 150 ℃

◆   Structure Form:

Straight Type Structure code is S

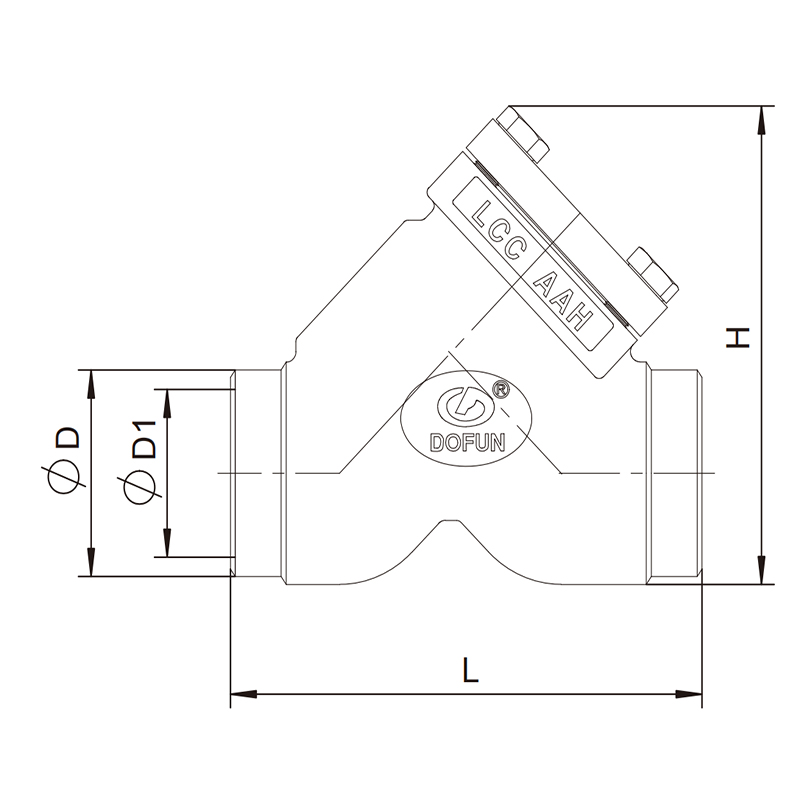

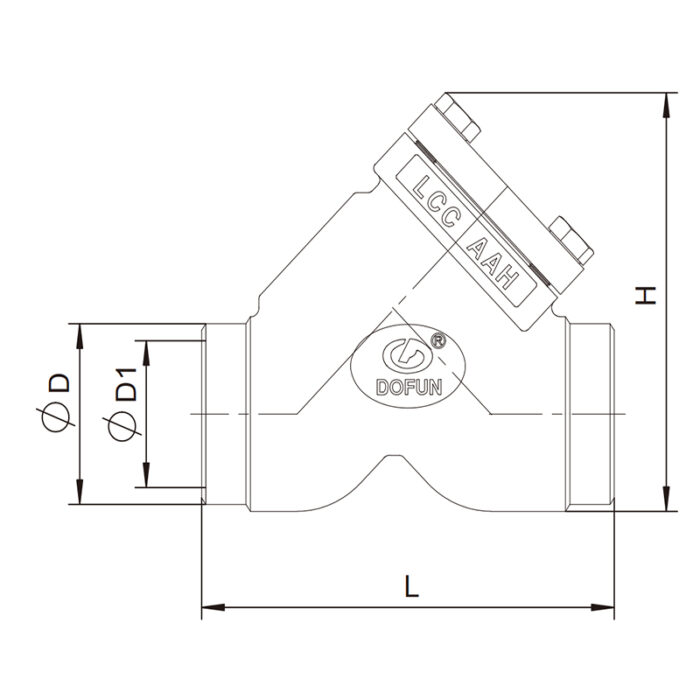

 Straight Type Check Valve

Model Nominal Diameter (DN) Size(mm)
ΦD-GB ΦD-DIN ΦD1 L H














CVD-S

15 22 21.3 15 120 103
20 27 27 20 120 103
25 32 33.7 25 120 103
32 38 42.4 32 156 131
40 45 48.3 38 156 131
50 57 60.3 49 149 140
65 76 76 62 176 164
80 89 89 76 254 215
100 108 114 96 264 261
125 133 139.7 120 320 316
150 159 168 150 370 348
