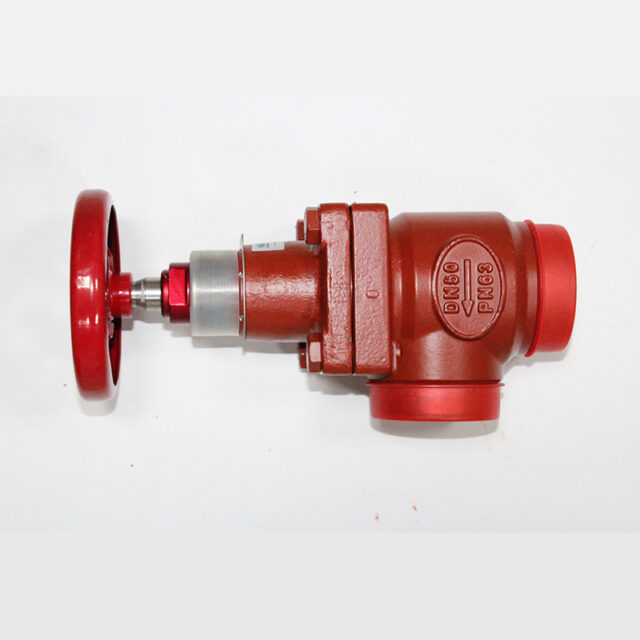

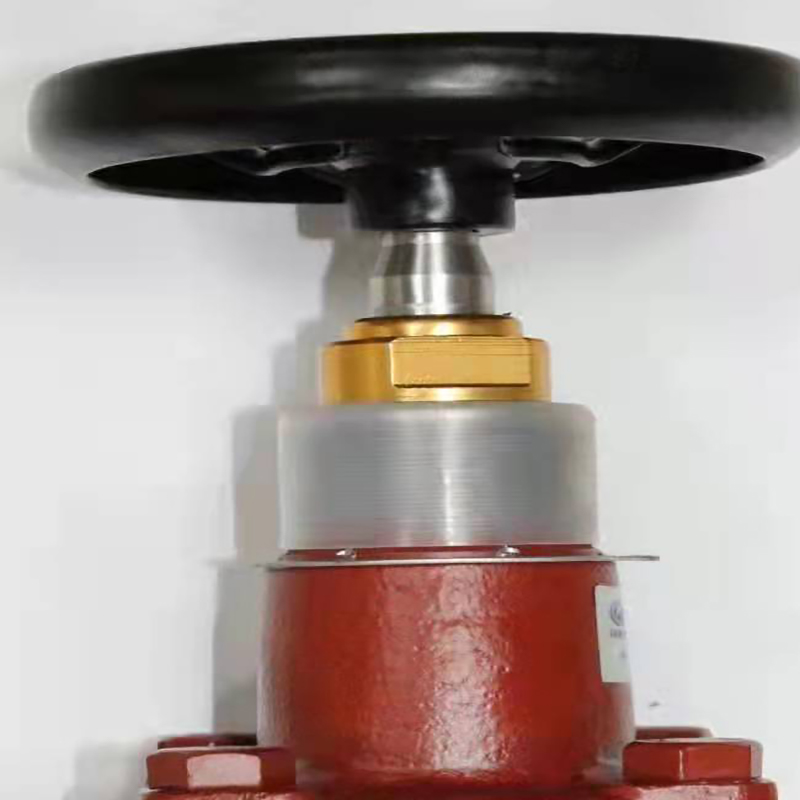

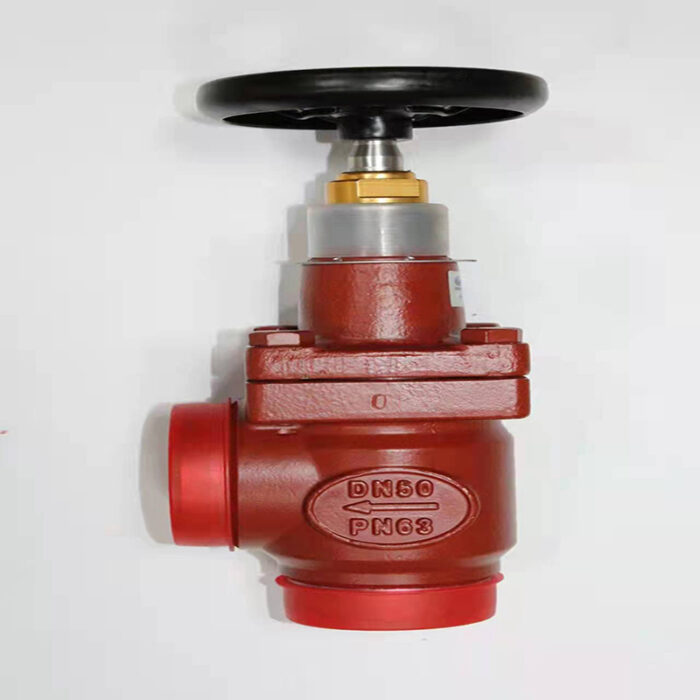

Angle Type PN63 Stop Check SCV-HA Valve

Name: Angle Type PN63 Stop Check SCV-HA Valve
SKU: Angle Type PN63 Stop Check Valve
Availability: InStock

Price range: $40.00 through $532.00

The price is EXW price and does not include shipping costs.

Technical Parameter

◆ DN15-DN150

Nominal Diameter: DN15-DN150

◆ 6.3MPa

Nominal Pressure: 6.3MPa

◆ R12,R22,R502,R134a,R404a,R507,R717,CO2。

Applicable Medium: R12, R22, R502, R134a, R404a, R507, R717 ,CO2 and other refrigerants.

◆ Applicable Temperature: -50 ℃ ～ + 150 ℃

Nominal Diameter

Clear

SKU: Angle Type PN63 Stop Check Valve Category: Manual Operation Valve PN63 Tag: SCV-HA Valve

Description

Technical Parameter

◆ DN15-DN150

Nominal Diameter: DN15-DN150

◆ 6.3MPa

Nominal Pressure: 6.3MPa

◆ R12,R22,R502,R134a,R404a,R507,R717,CO2。

Applicable Medium: R12, R22, R502, R134a, R404a, R507, R717 ,CO2 and other refrigerants.

◆ Applicable Temperature: -50 ℃ ～ + 150 ℃

Angle Type PN63 Stop Check Valve

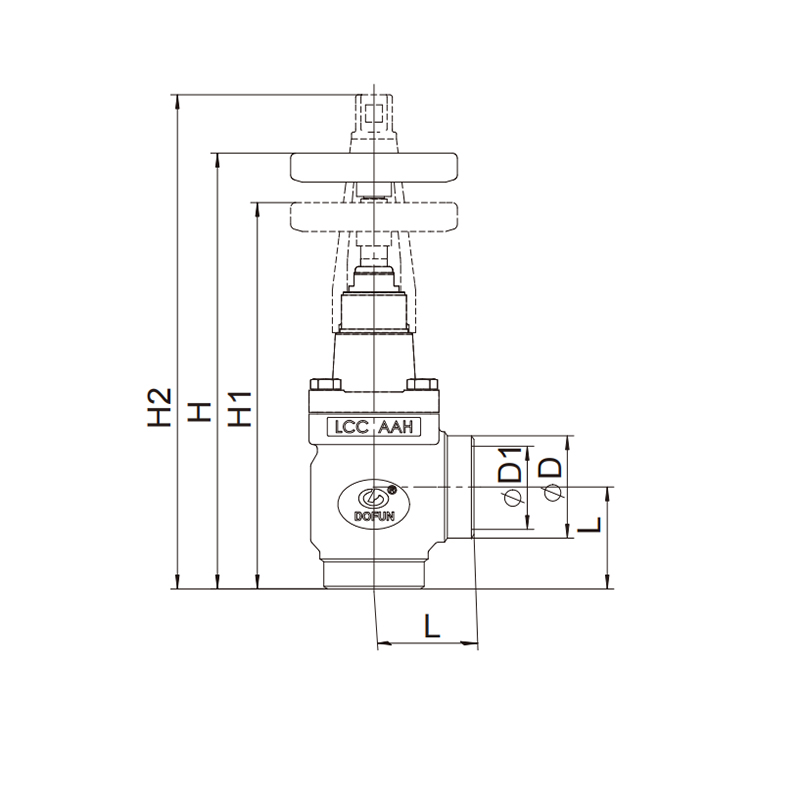

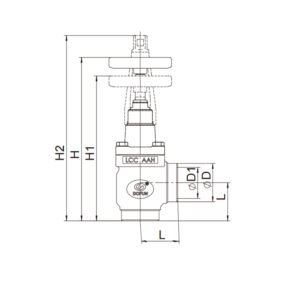

Model	Nominal Diameter (DN)	（mm）Size（mm）
Model	Nominal Diameter (DN)	ΦD-GB	ΦD-DIN	ΦD1	L	H	H1	H2
SCV-HA	15	22	21.3	15	45	203	189	230
	20	27	27	20	45	203	189	230
	25	32	33.7	25	45	203	189	230
	32	38	42.4	32	56	265	247	309
	40	45	48.3	38	56	265	247	309
	50	57	60.3	49	60	257	237	292
	65	76	76	62	90	287	263	324
	80	89	89	76	106	328	300	378
	100	108	114	96	121	368	331	414
	125	133	139.7	120	133	502	442	554
	150	159	168	150	146	546	472	591
