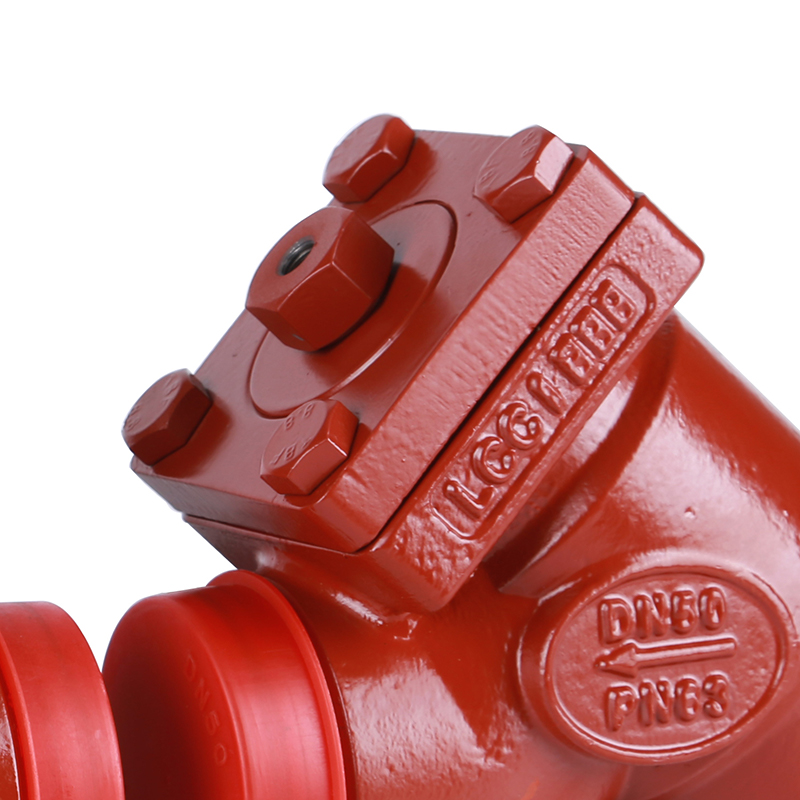

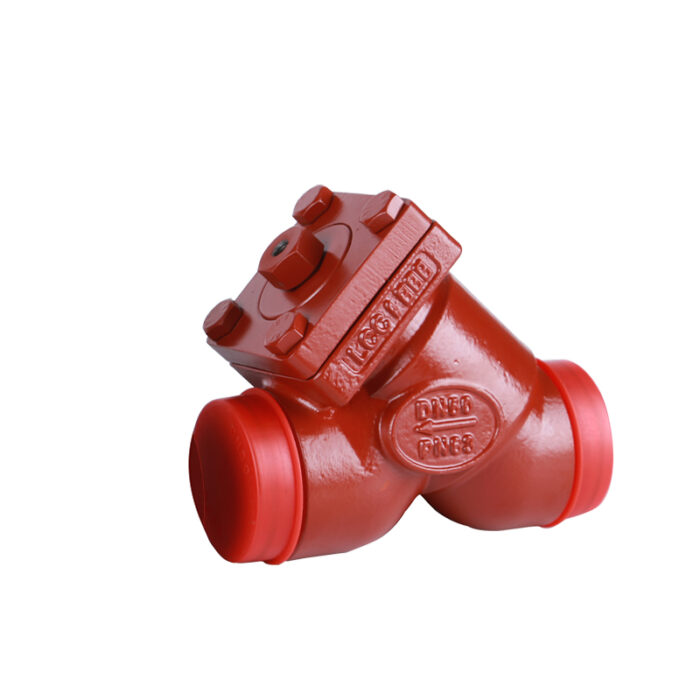

Straight Type PN63 Filter FVD-HS
$31.00 – $480.00
1、Technical Parameter◆ Nominal Diameter: DN15-DN150◆ Nominal Pressure: 6.3MPa◆ Applicable Medium: R12, R22, R502, R134a, R404a, R507, R717 ,CO2 and other refrigerants.◆ Applicable Temperature: -50 ℃ ~ + 150 ℃◆ The specifications of the filter screen are 150 mesh, 100 mesh, 72 mesh, 38 mesh, which can be selected according to the requirements of different pipeline.
- Description
- Reviews (0)
Description
1、Technical Parameter
◆ Nominal Diameter: DN15-DN150
◆ Nominal Pressure: 6.3MPa
◆ Applicable Medium: R12, R22, R502, R134a, R404a, R507, R717 ,CO2 and other refrigerants.
◆ Applicable Temperature: -50 ℃ ~ + 150 ℃
◆ The specifications of the filter screen are 150 mesh, 100 mesh, 72 mesh, 38 mesh, which can be selected according to the requirements of different pipeline.

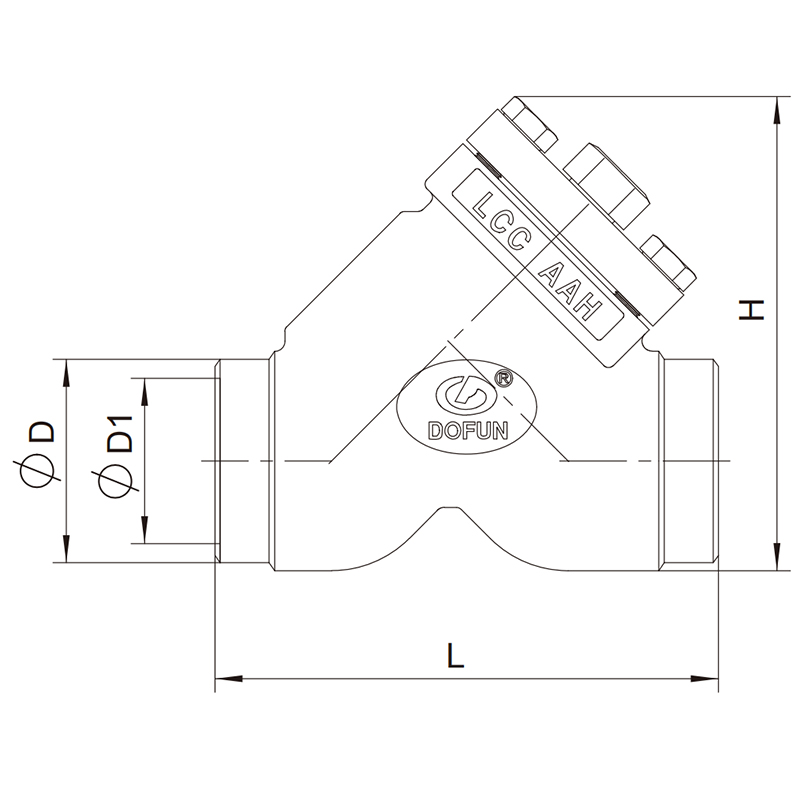

Straight Type PN63 Filter | ||||||
Model |
Nominal Diameter (DN) |
Size(mm) | ||||
ΦD-GB | ΦD-DIN | ΦD1 | L | H | ||
FVD-HS |
15 | 22 | 21.3 | 15 | 120 | 103 |
20 | 27 | 27 | 20 | 120 | 103 | |
25 | 32 | 33.7 | 25 | 120 | 103 | |
32 | 38 | 42.4 | 32 | 156 | 131 | |
40 | 45 | 48.3 | 38 | 156 | 131 | |
50 | 57 | 60.3 | 49 | 149 | 140 | |
65 | 76 | 76 | 62 | 176 | 164 | |
80 | 89 | 89 | 76 | 254 | 215 | |
100 | 108 | 114 | 96 | 264 | 261 | |
125 | 133 | 139.7 | 120 | 320 | 316 | |
150 | 159 | 168 | 144 | 370 | 371 |
