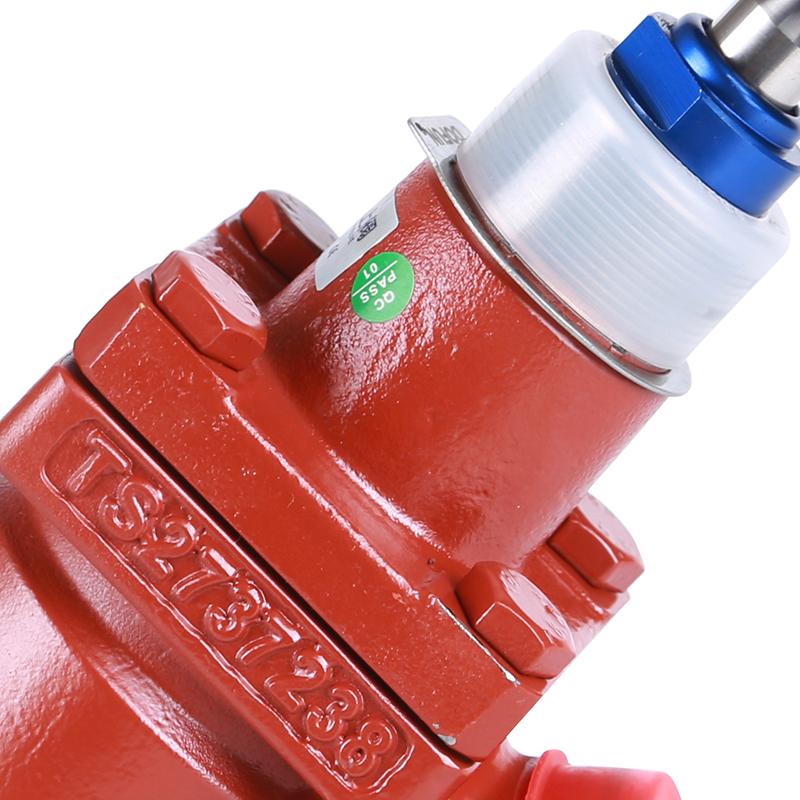

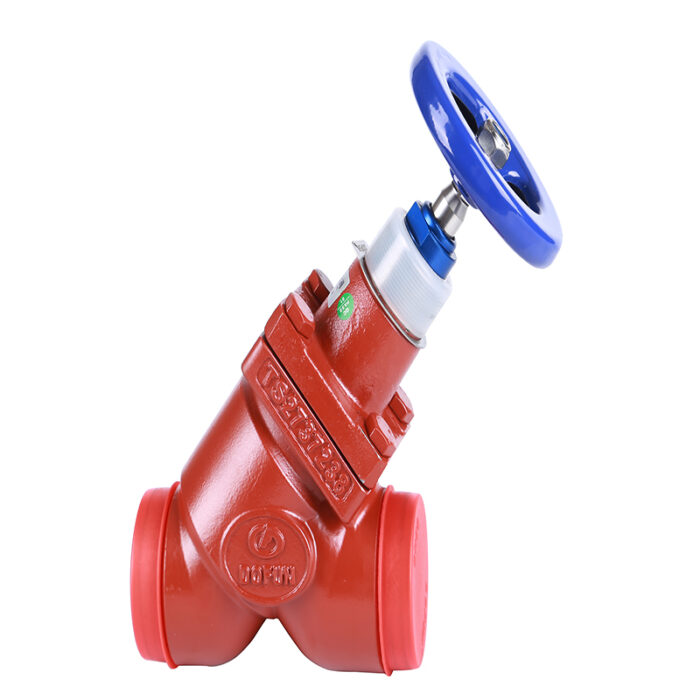

Straight Type PN63 Stop SVD-HS Valve
$16.00 – $2,813.00
The price is EXW price and does not include shipping costs.
1、Technical Parameter
◆ Nominal Diameter: DN15-DN150
◆ Nominal Pressure: 6.3MPa
◆ Applicable Medium: R12, R22, R502, R134a, R404a, R507, R717 ,CO2 and other refrigerants.
◆ Applicable Temperature: -50 ℃ ~ + 150 ℃
◆ Structure Form: Straight Type Structure’s code is S
- Description
- Reviews (0)
Description
1、Technical Parameter
◆ Nominal Diameter: DN15-DN150
◆ Nominal Pressure: 6.3MPa
◆ Applicable Medium: R12, R22, R502, R134a, R404a, R507, R717 ,CO2 and other refrigerants.
◆ Applicable Temperature: -50 ℃ ~ + 150 ℃
◆ Structure Form: Straight Type Structure’s code is S

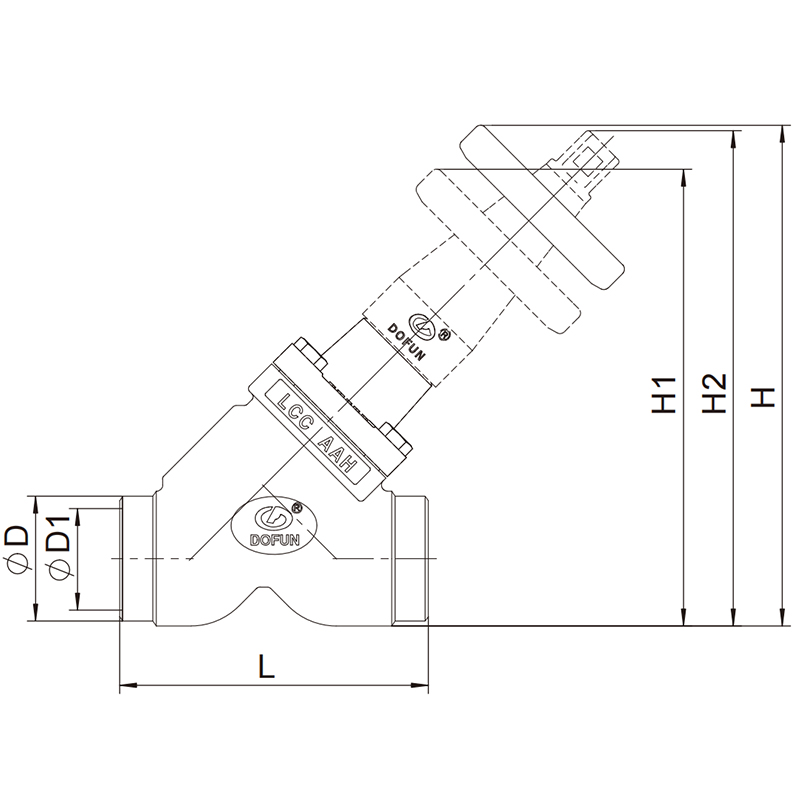

Straight Type PN63 Stop Valve | ||||||||
Model |
Nominal Diameter (DN) |
Size(mm) | ||||||
ΦD-GB | ΦD-DIN | ΦD1 | L | H | H1 | H2 | ||
SVD-HS |
15 | 22 | 21.3 | 15 | 120 | 175 | 166 | 174 |
20 | 27 | 27 | 20 | 120 | 175 | 166 | 174 | |
25 | 32 | 33.7 | 25 | 120 | 175 | 166 | 174 | |
32 | 38 | 42.4 | 32 | 156 | 219 | 206 | 236 | |
40 | 45 | 48.3 | 38 | 156 | 219 | 206 | 236 | |
50 | 57 | 60.3 | 49 | 149 | 242 | 228 | 239 | |
65 | 76 | 76 | 62 | 176 | 277 | 259 | 268 | |
80 | 89 | 89 | 76 | 216 | 323 | 303 | 312 | |
100 | 108 | 114 | 96 | 264 | 380 | 354 | 353 | |
125 | 133 | 139.7 | 120 | 330 | 520 | 478 | 464 | |
150 | 159 | 168 | 150 | 370 | 570 | 525 | 513 |
