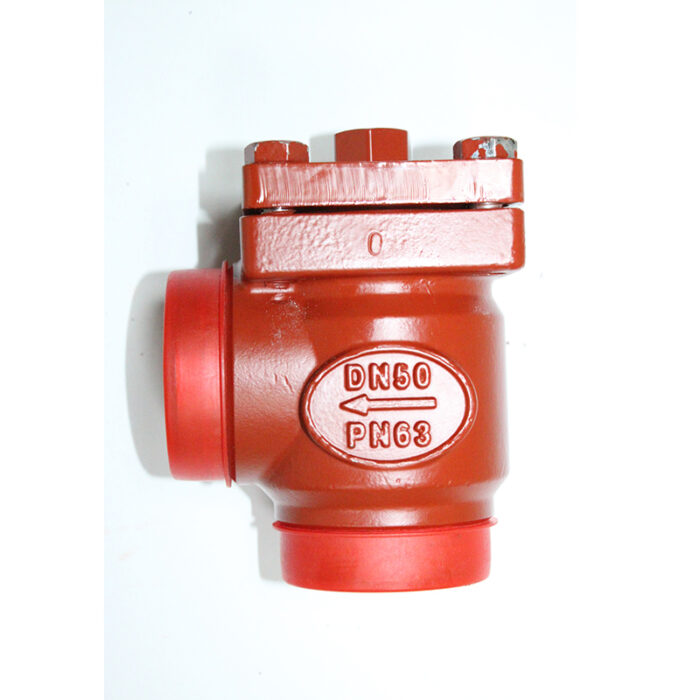

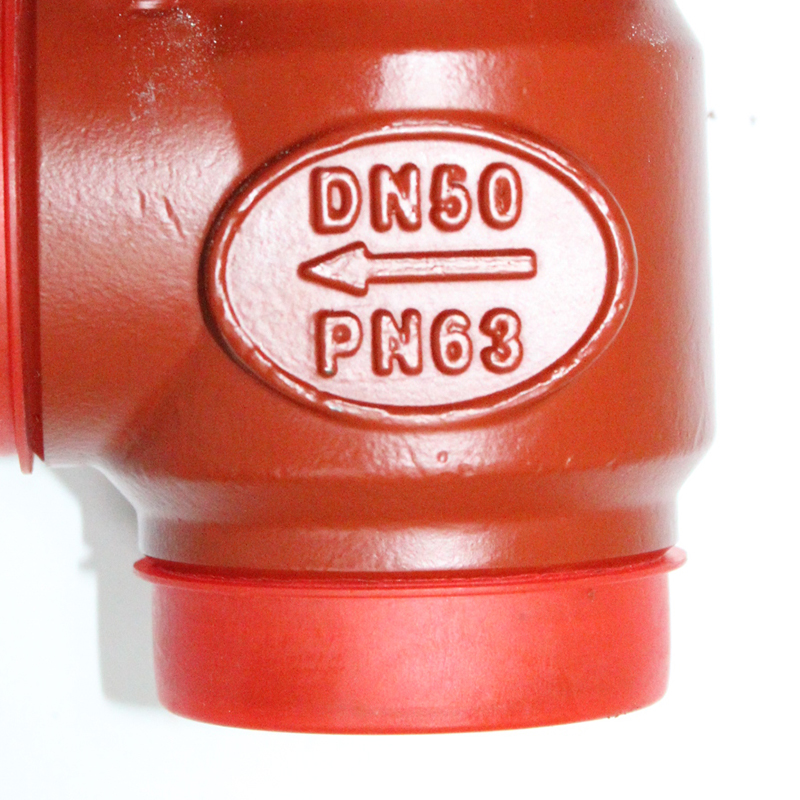

Angle Type PN63 Filter FVD-HA Vavle
$31.00 – $478.00
1、Technical Parameter
◆ Nominal Diameter: DN15-DN150
◆ Nominal Pressure: 6.3MPa
◆ Applicable Medium: R12, R22, R502, R134a, R404a, R507, R717 ,CO2 and other refrigerants.
◆ Applicable Temperature: -50 ℃ ～ + 150 ℃
◆ The specifications of the filter screen are 150 mesh, 100 mesh, 72 mesh, 38 mesh, which can be selected according to the requirements of different pipeline.
Description
The price is EXW price and does not include shipping costs.
1、Technical Parameter
◆ Nominal Diameter: DN15-DN150
◆ Nominal Pressure: 6.3MPa
◆ Applicable Medium: R12, R22, R502, R134a, R404a, R507, R717 ,CO2 and other refrigerants.
◆ Applicable Temperature: -50 ℃ ～ + 150 ℃
◆ The specifications of the filter screen are 150 mesh, 100 mesh, 72 mesh, 38 mesh, which can be selected according to the requirements of different pipeline.

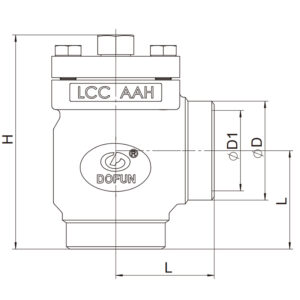

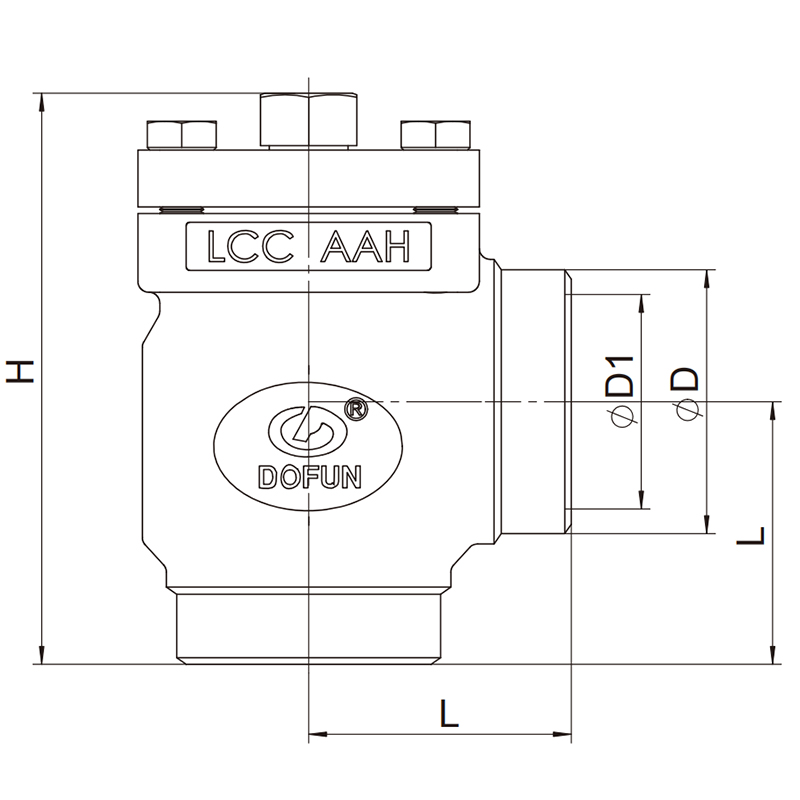

| Angle Type PN63 Filter | ||||||
| Model | Nominal Diameter (DN) | Size（mm） | ||||
| ΦD-GB | ΦD-DIN | ΦD1 | L | H | ||
|
FVD-HA |
15 | 22 | 21.3 | 15 | 45 | 115.5 |
| 20 | 27 | 27 | 20 | 45 | 115.5 | |
| 25 | 32 | 33.7 | 25 | 45 | 115.5 | |
| 32 | 38 | 42.4 | 32 | 56 | 141.5 | |
| 40 | 45 | 48.3 | 38 | 56 | 141.5 | |
| 50 | 57 | 60.3 | 49 | 60 | 130 | |
| 65 | 76 | 76 | 62 | 90 | 148 | |
| 80 | 89 | 89 | 76 | 106 | 224 | |
| 100 | 108 | 114 | 96 | 121 | 253 | |
| 125 | 133 | 139.7 | 120 | 133 | 273.5 | |
| 150 | 159 | 168 | 150 | 146 | 311 | |
